Code 34 - Map Sensor

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

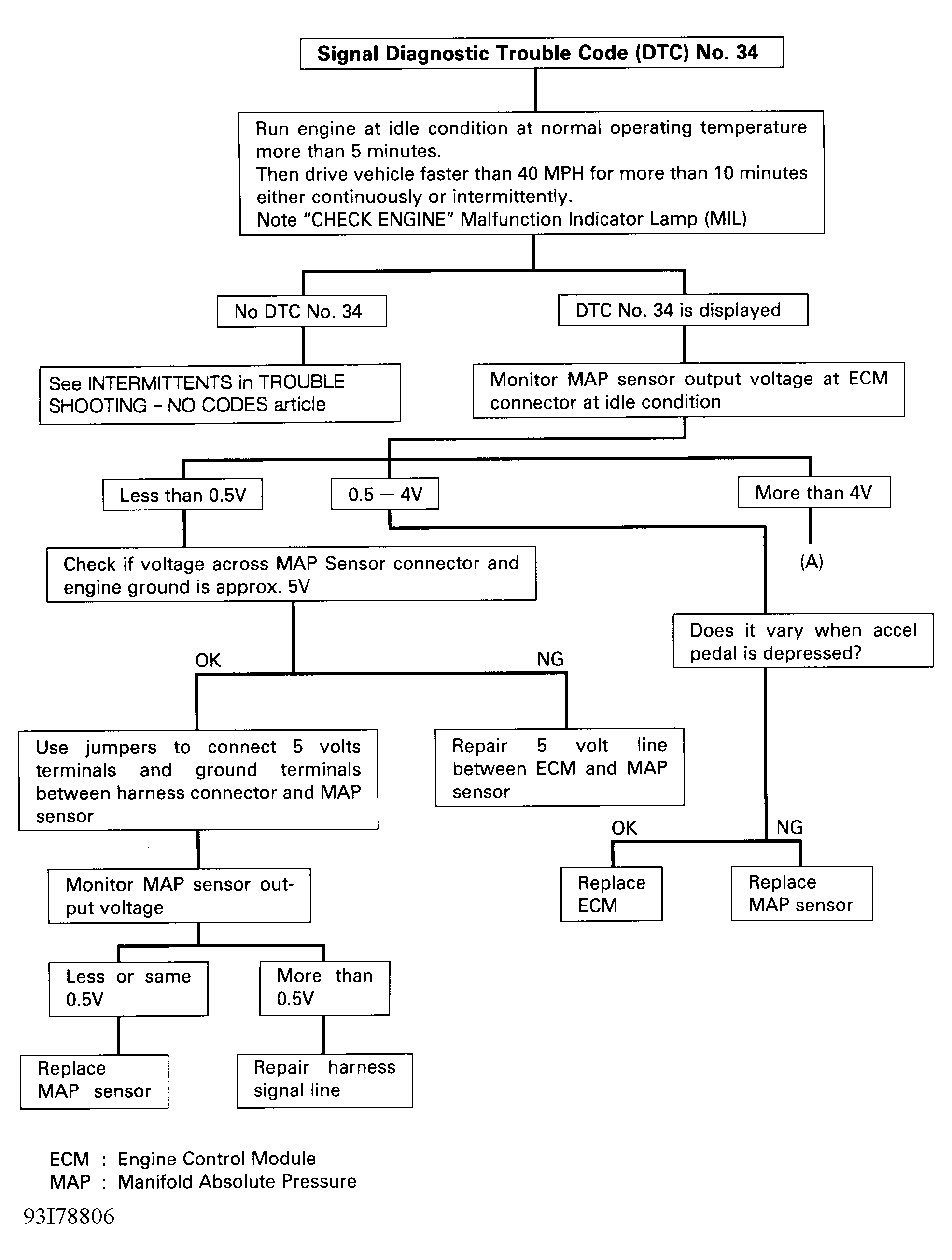

Fig 1: Code 34 - Diagnostic Flowchart (1 Of 2)
G93I78806Courtesy of ISUZU MOTOR CO.

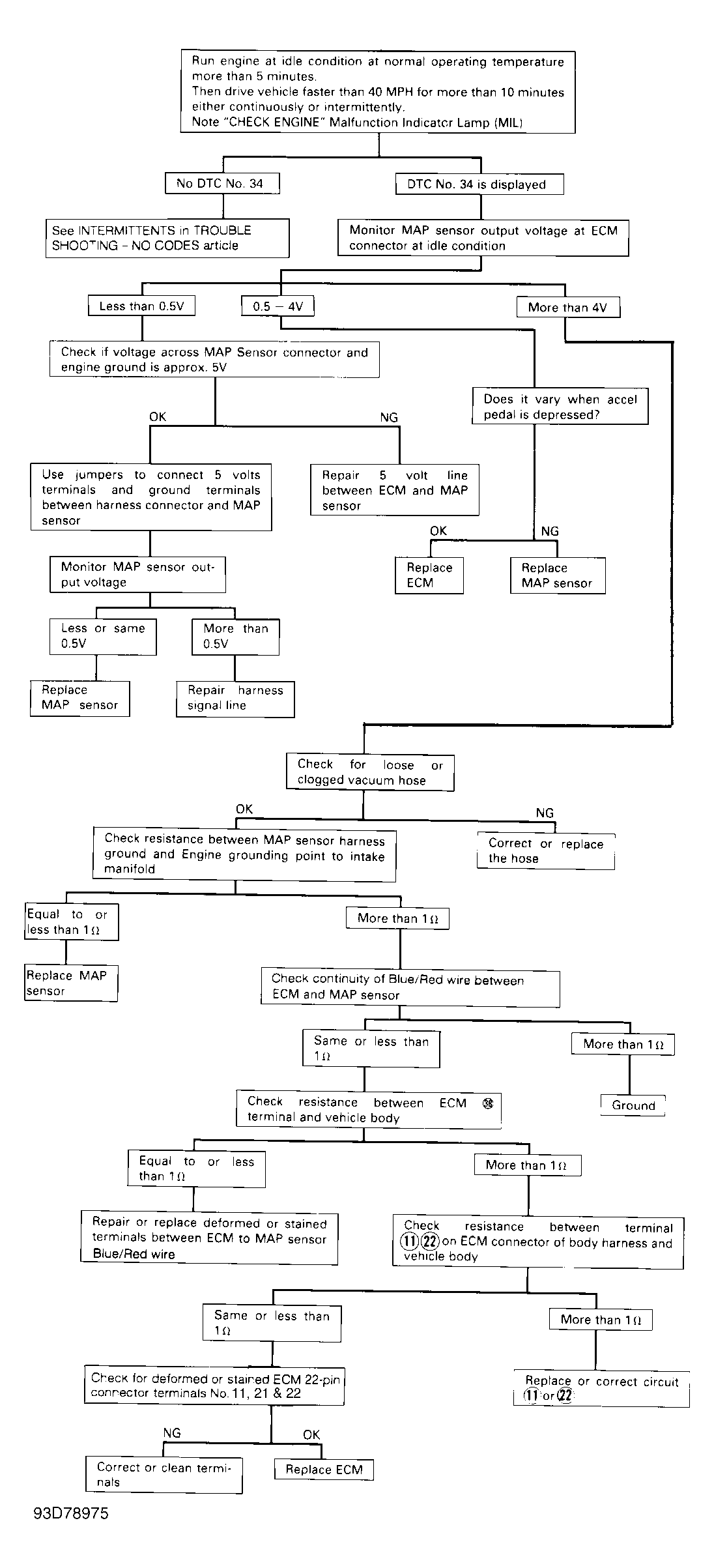

Fig 2: Code 34 - Diagnostic Flowchart (2 Of 2)
G93D78975Courtesy of ISUZU MOTOR CO.
