Component Testing: Voltmeter: 3.2L

Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Remove voltmeter from instrument cluster. Using an ohmmeter, measure resistance of voltmeter between terminals No. 1 and 8. SeeFigure . Ensure resistance is 79.2-96.8 ohms. If resistance is not within specification, replace voltmeter.

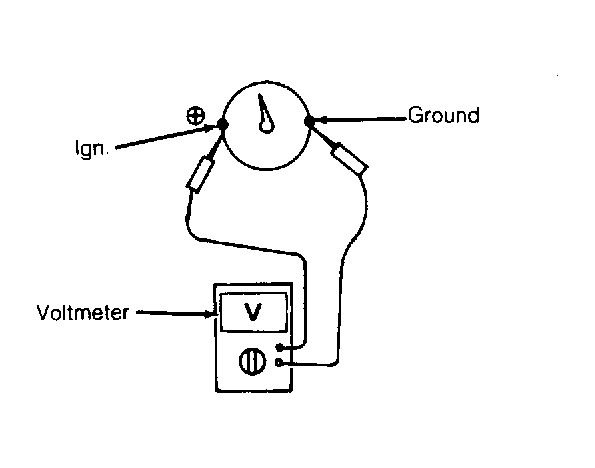

Fig 1: Testing Voltmeter (2.6L)

Courtesy of ISUZU MOTOR CO.
