Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under front of center console. |
| Anti-Theft Controller | Behind left kick panel. |
| Cruise Control Unit | Behind right kick panel. |
| Door Lock Controller | Behind right kick panel. |

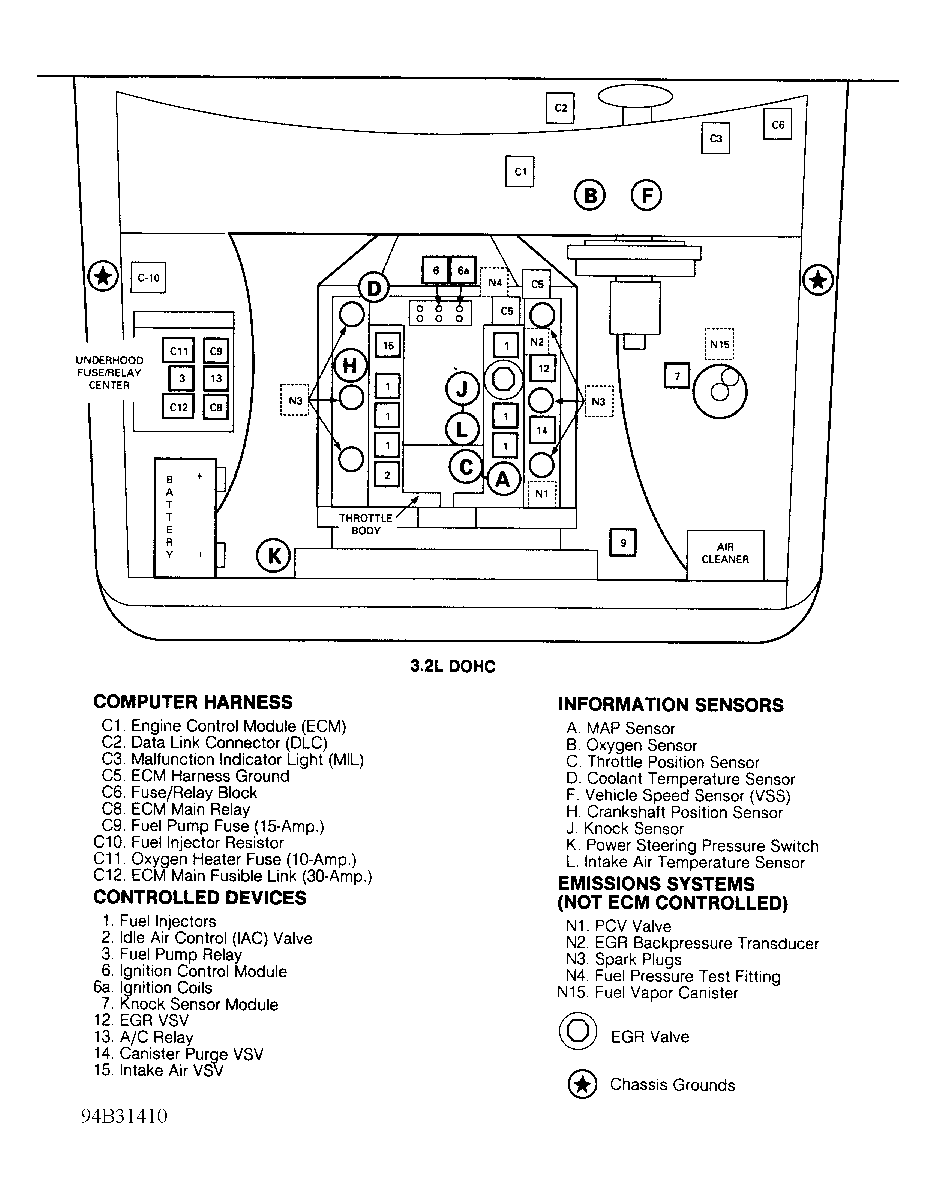

| ECM (3.2L DOHC) (Engine Control Module) | Behind center of dash. See Figure . |

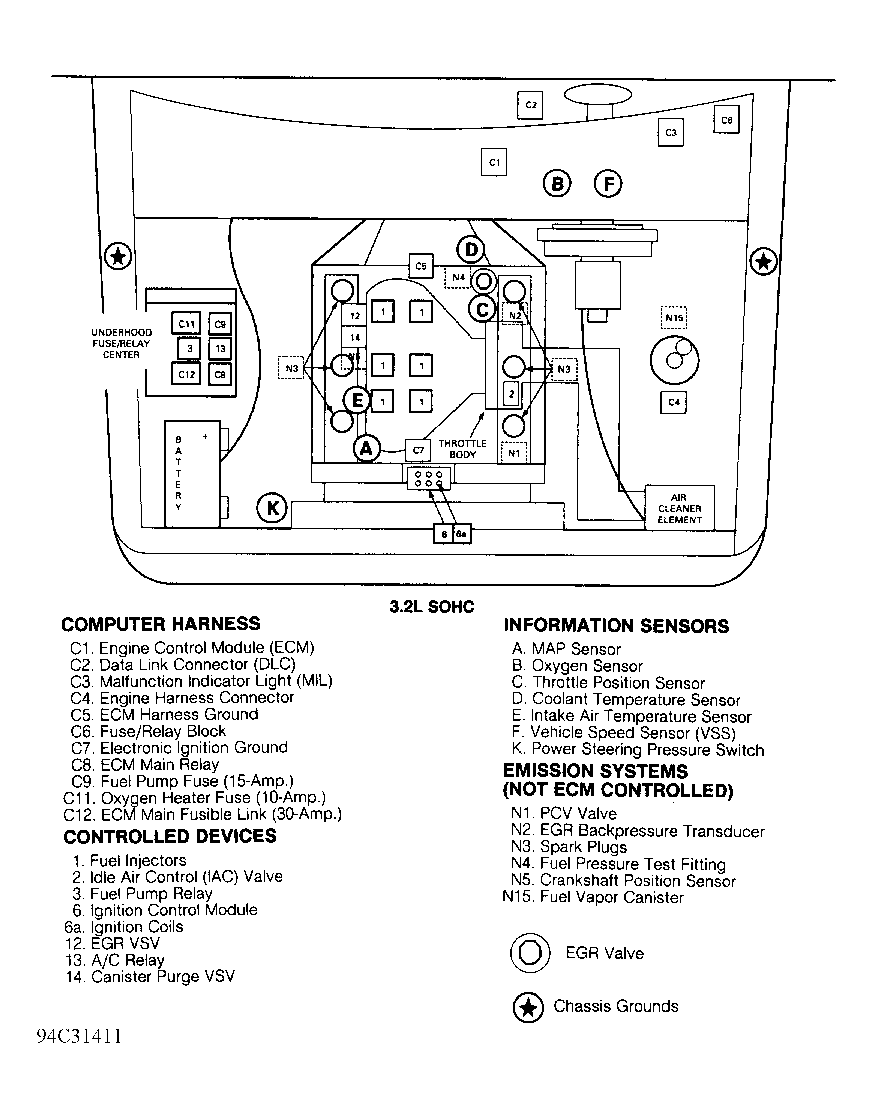

| ECM (3.2L SOHC) (Engine Control Module) | Behind center of dash. See Figure . |
| Ignition Control Module (DOHC) | On top center rear of engine. See Figure . |
| Ignition Control Module (SOHC) | On center front of engine. See Figure . |
| Shift Lock Controller | Behind dash, left of steering column. |
| Sunroof Control Unit | On rear underside of roof. |
| Transmission Control Module (TCM) | Behind left side of dash, above kick panel. |
