Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

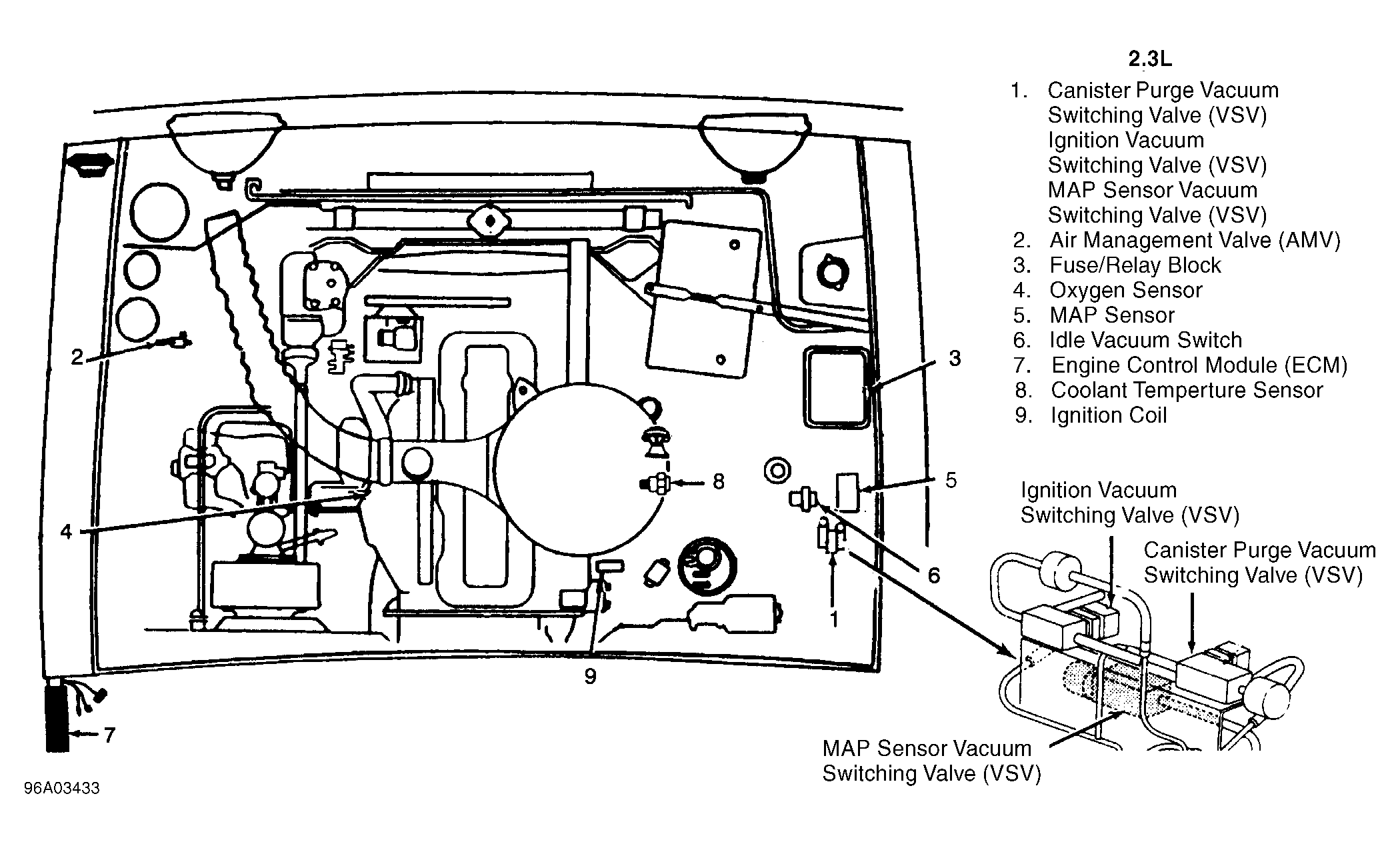

Fig 1: Engine Compartment (2.3L)

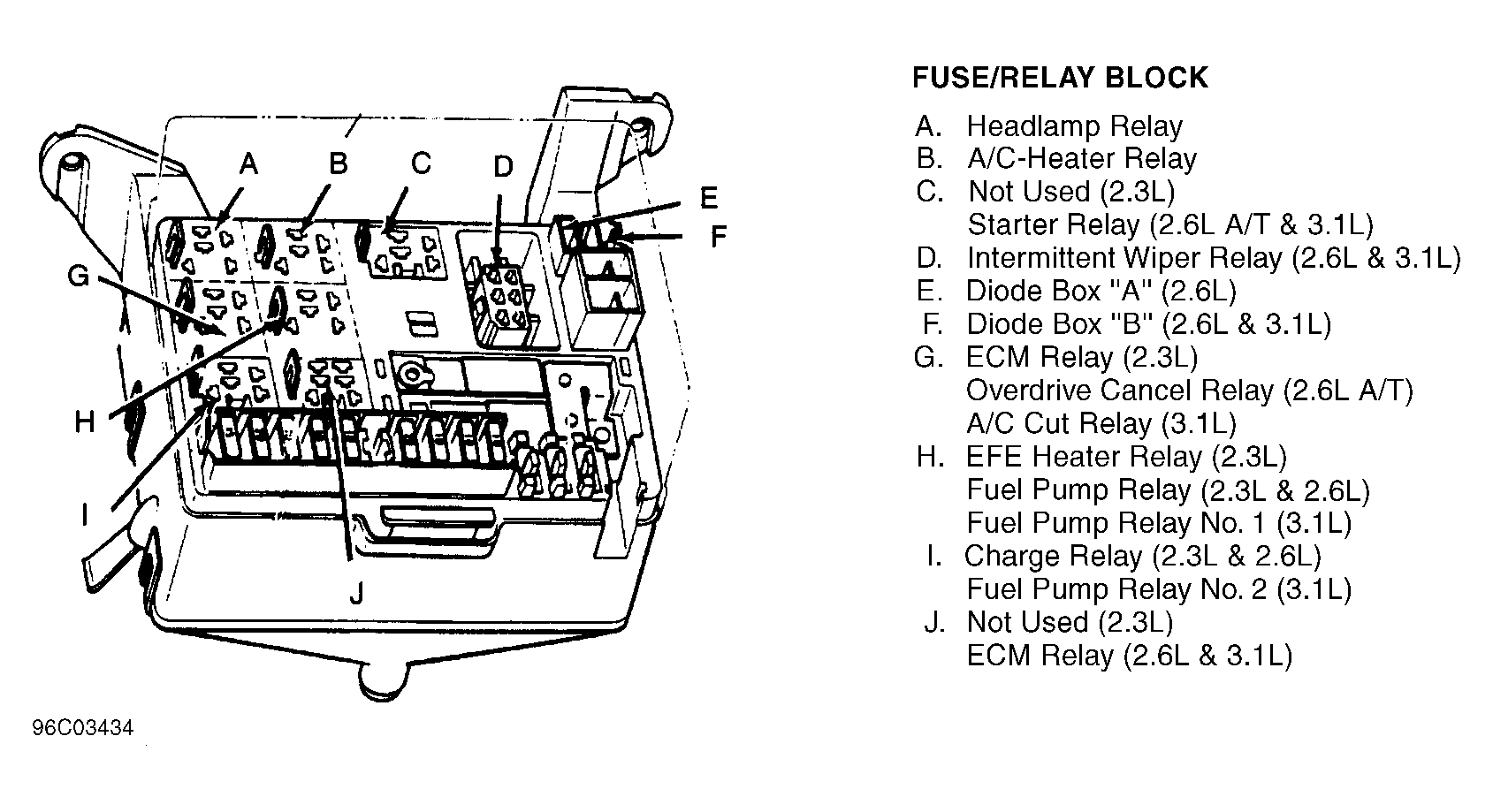

Fig 2: Fuse/Relay Block

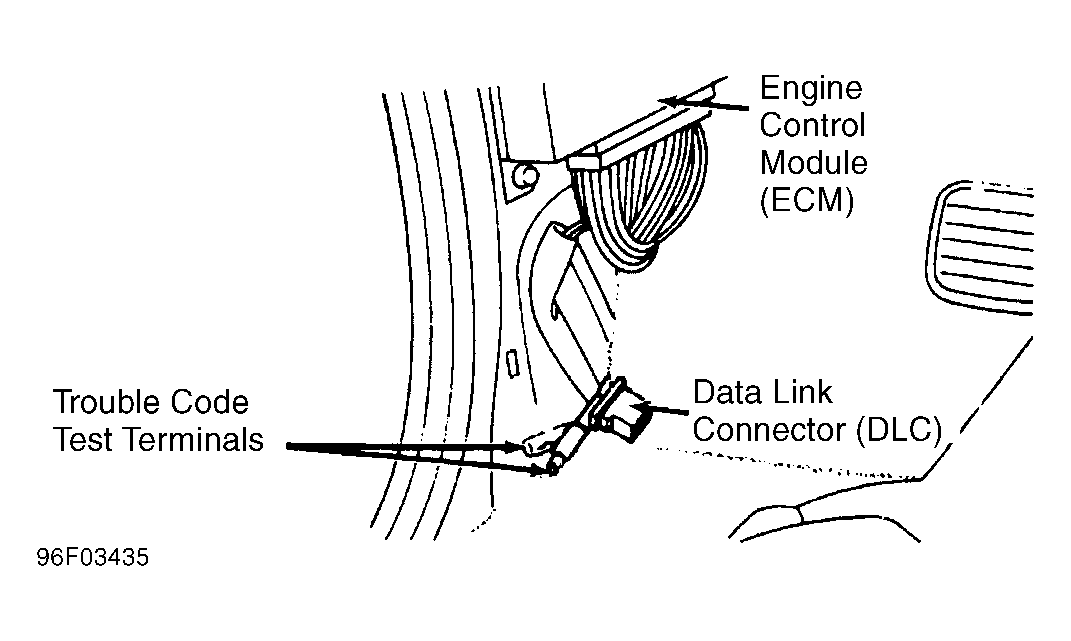

Fig 3: Left Kick Panel

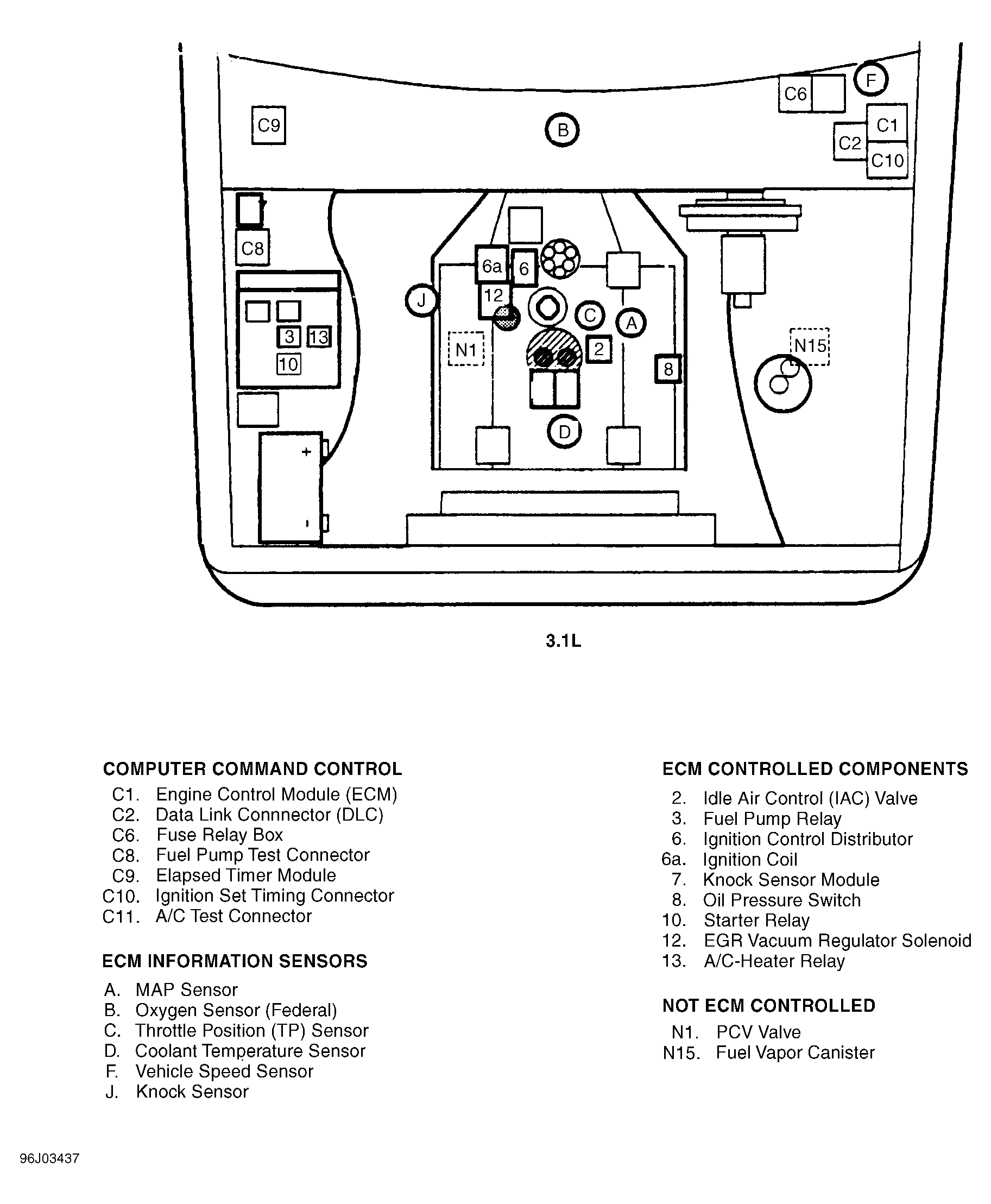

Fig 4: Engine Compartment (3.1L)

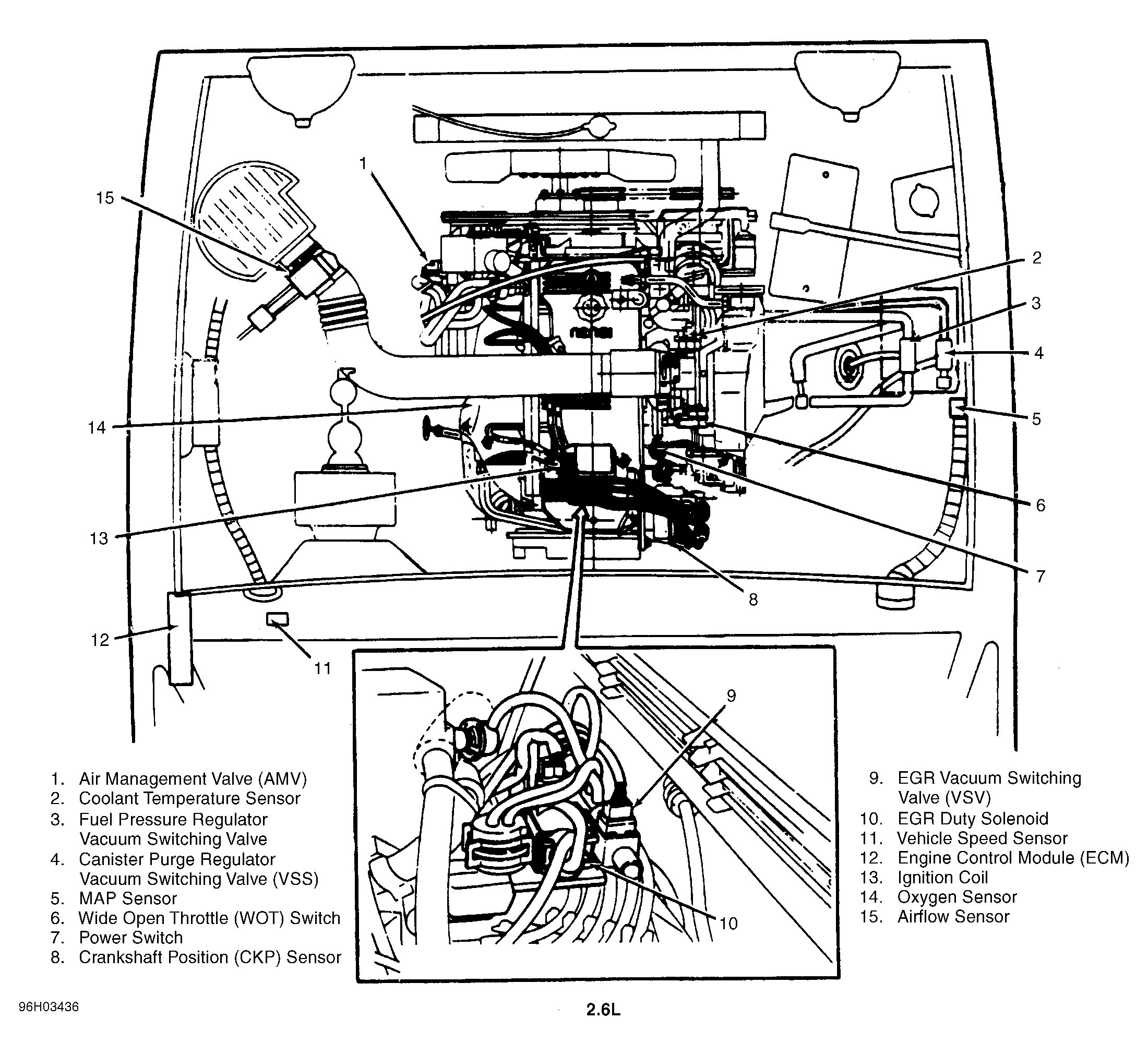

Fig 5: Engine Compartment (2.6L)
