Service Point Locations

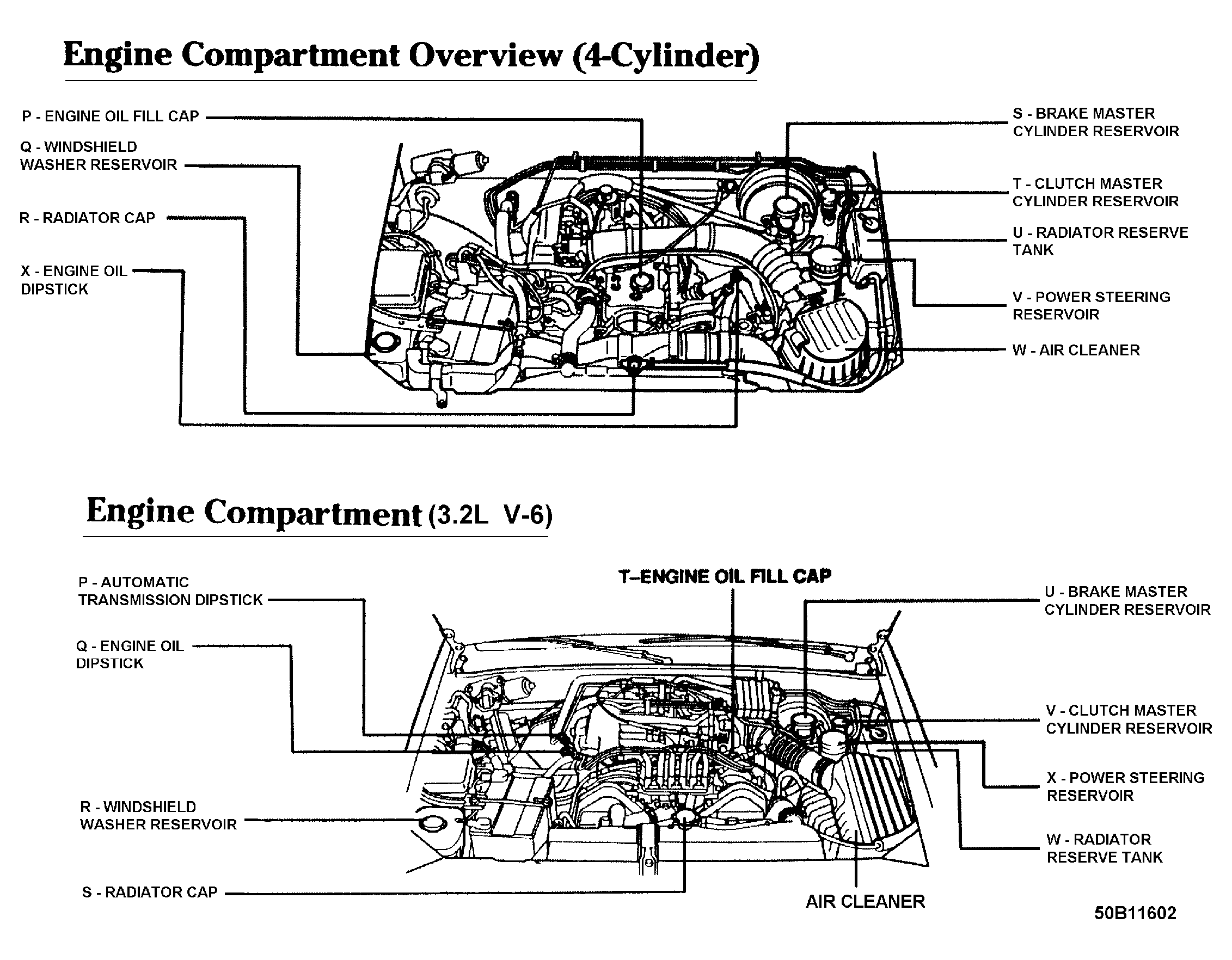

Fig 1: Engine Service Point Locations (2.6L & 3.2L)
G50B11602Courtesy of ISUZU MOTOR CO.

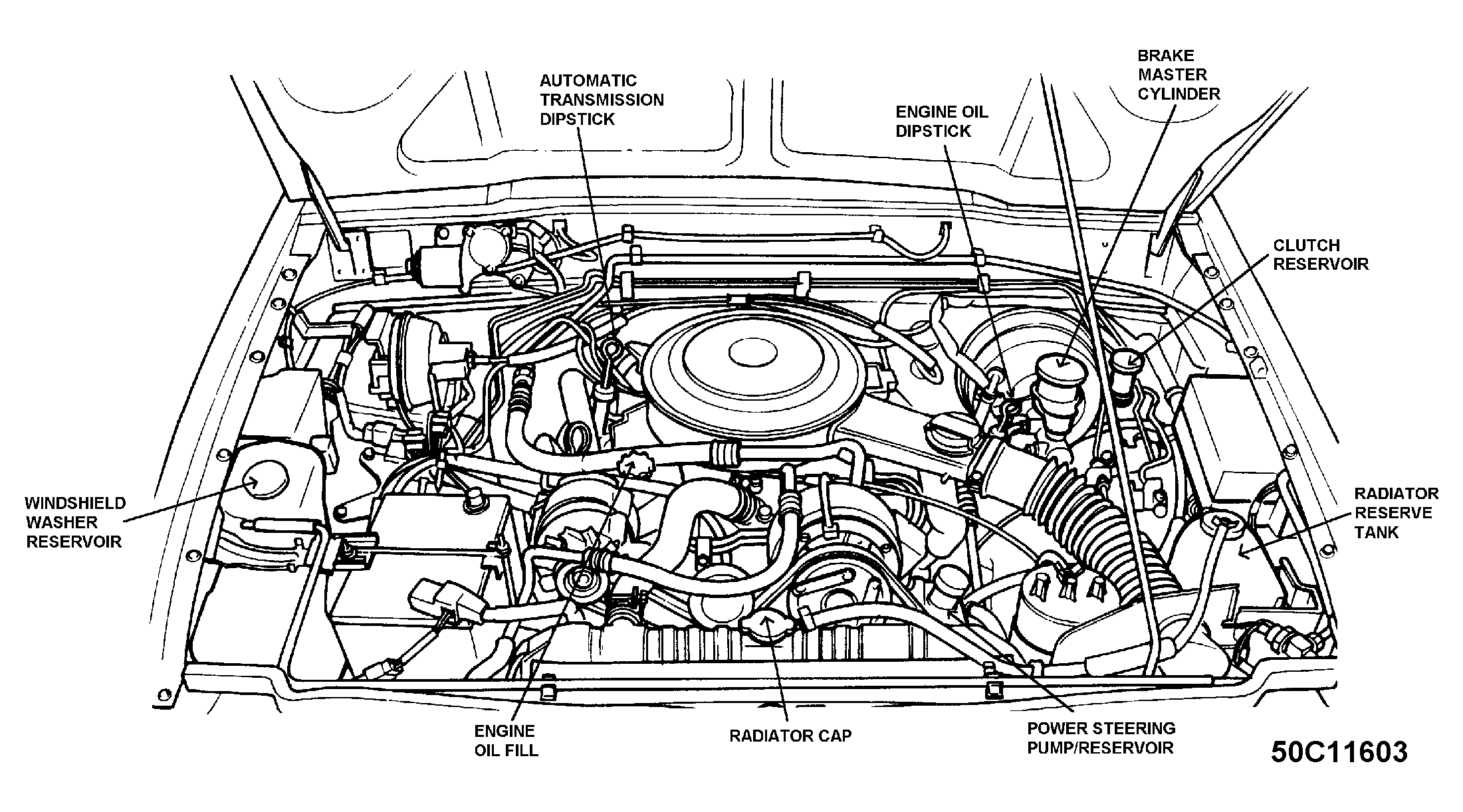

Fig 2: Engine Service Point Locations (3.1L)
G50C11603Courtesy of ISUZU MOTOR CO.

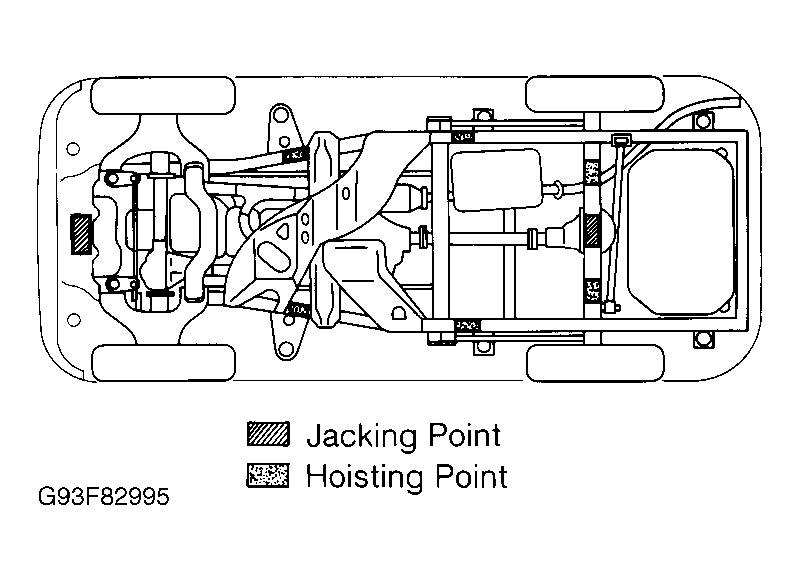

Fig 3: Lift Points
G93F82995Courtesy of ISUZU MOTOR CO.
