DTC P0440 - EVAP System: Notes

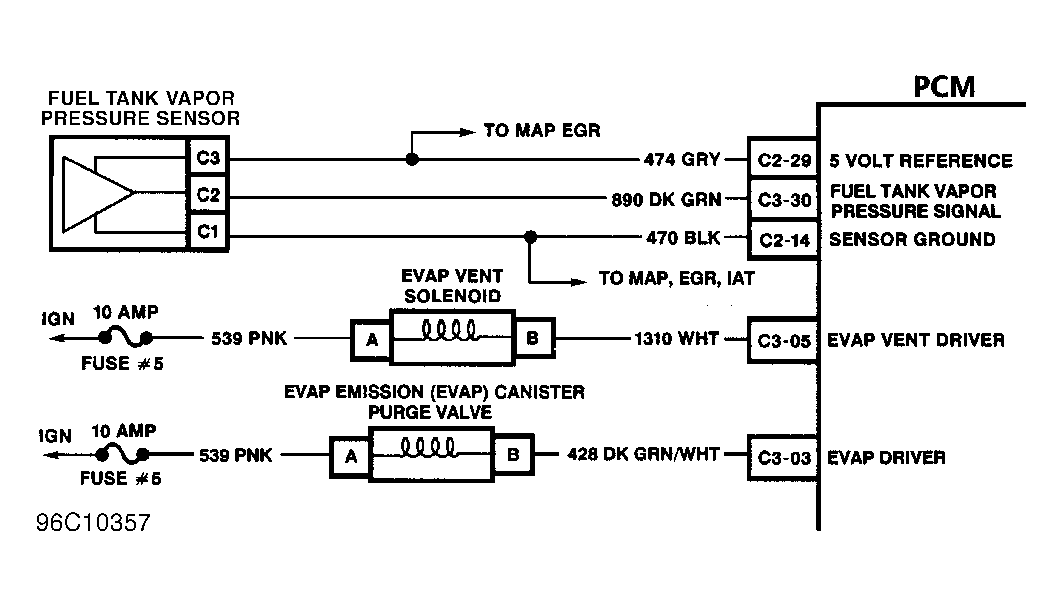

Fig 1: EVAP System Circuit (Hombre)

G96C10357

Courtesy of ISUZU MOTOR CO.
