Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

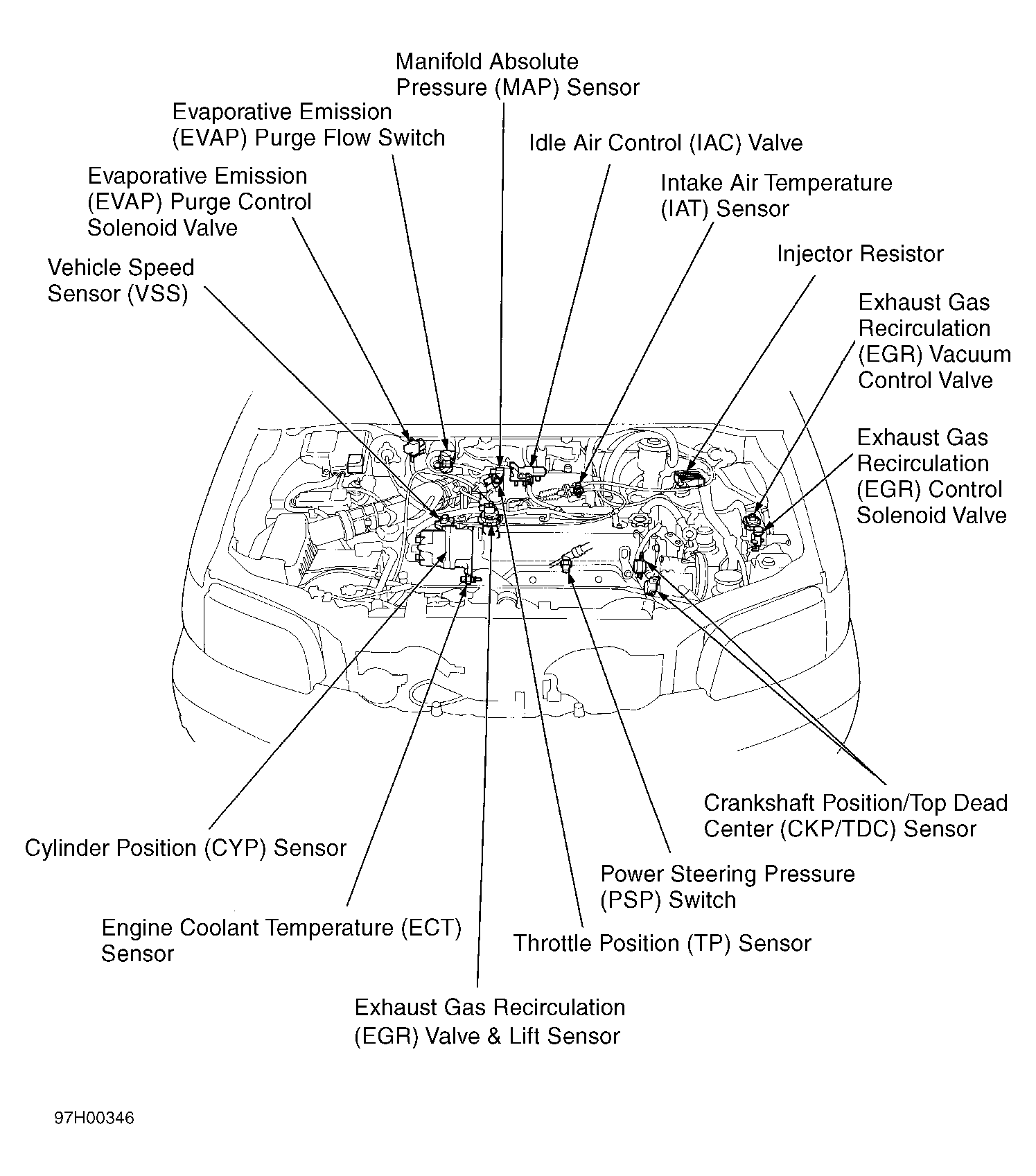

Fig 1: Engine Compartment

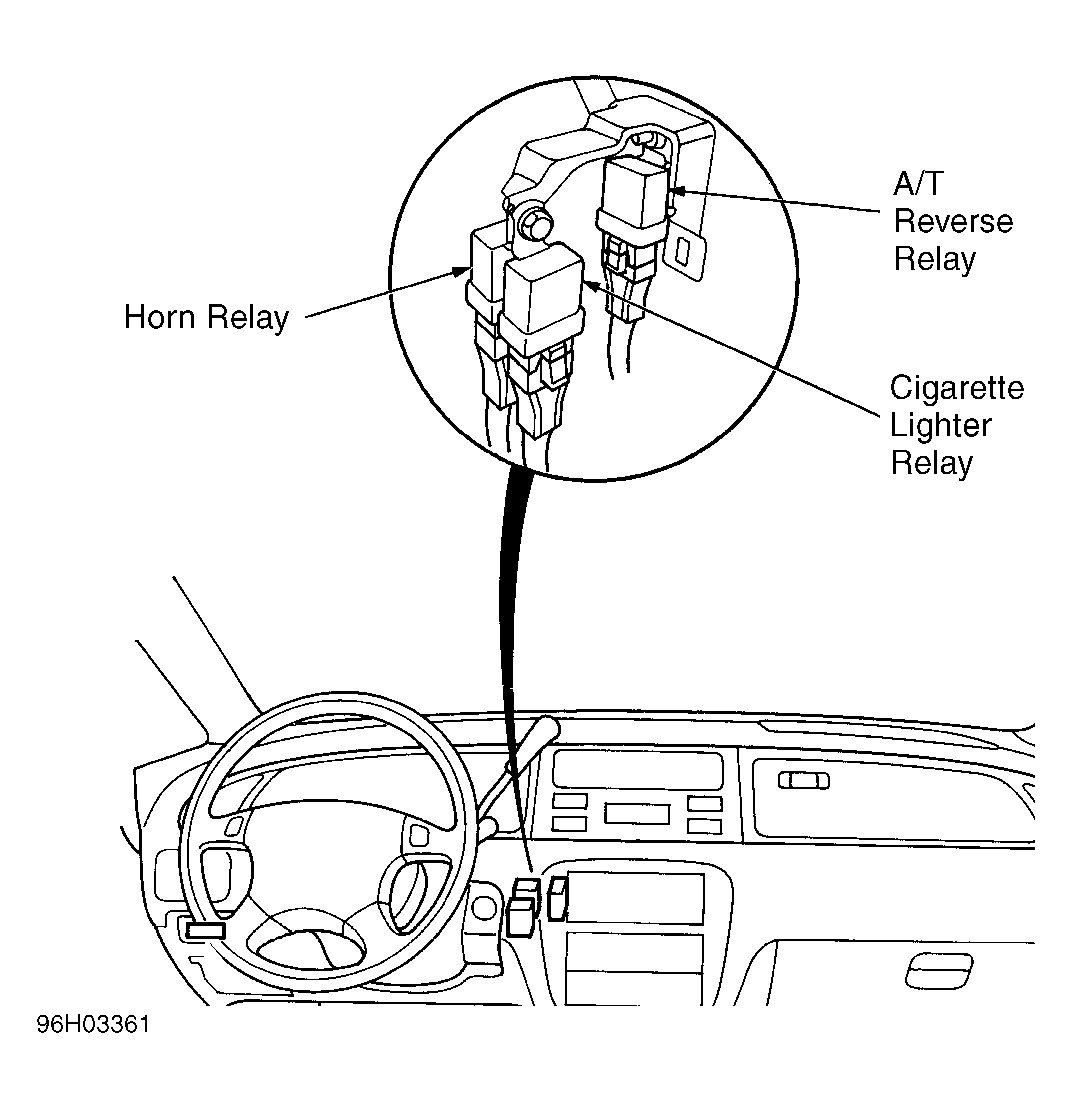

Fig 2: Dash

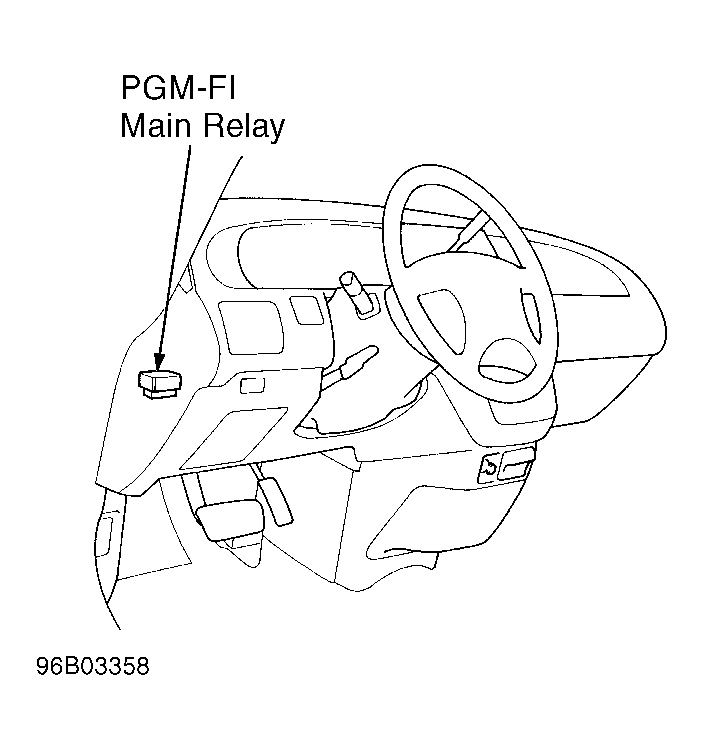

Fig 3: Dash

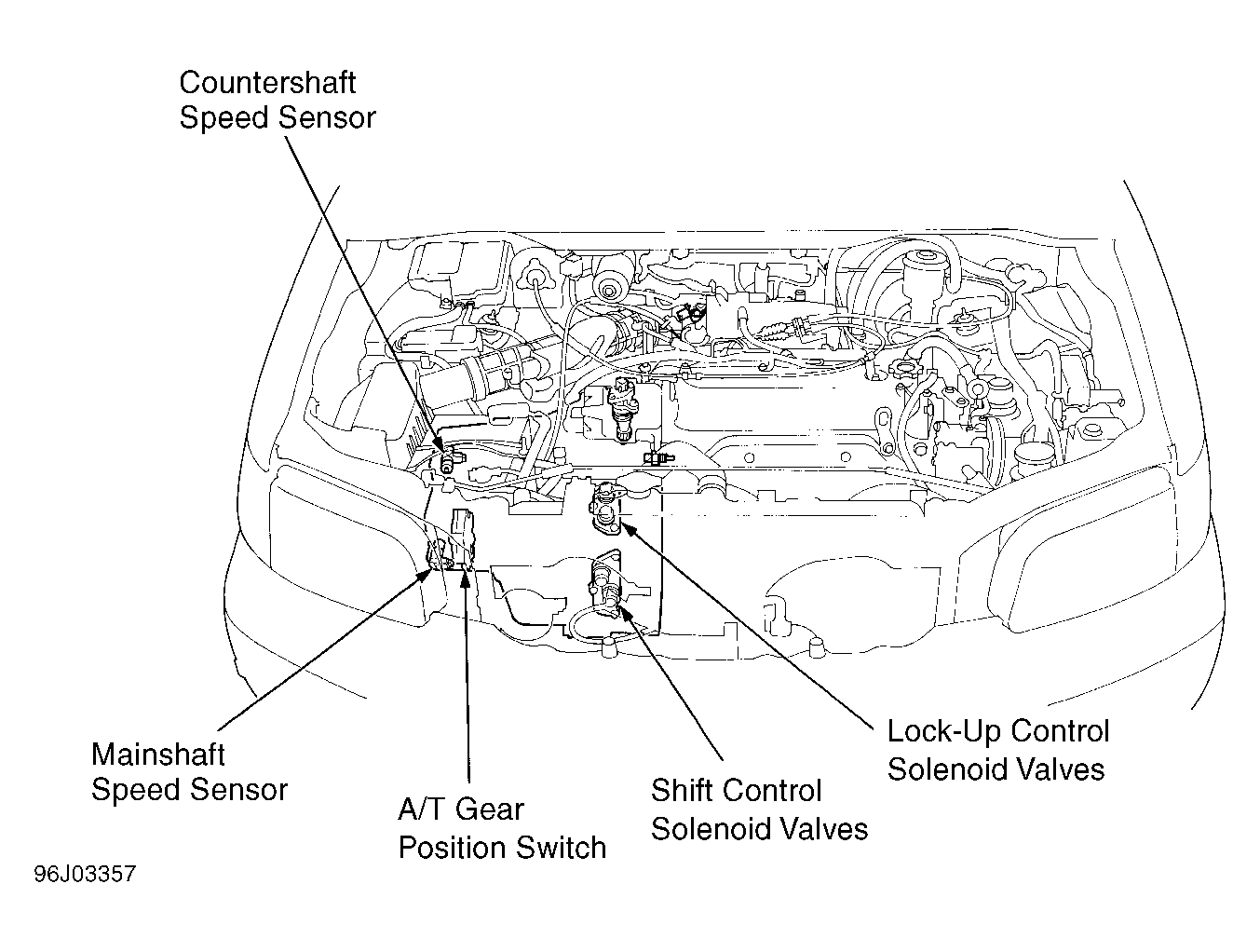

Fig 4: Engine Compartment

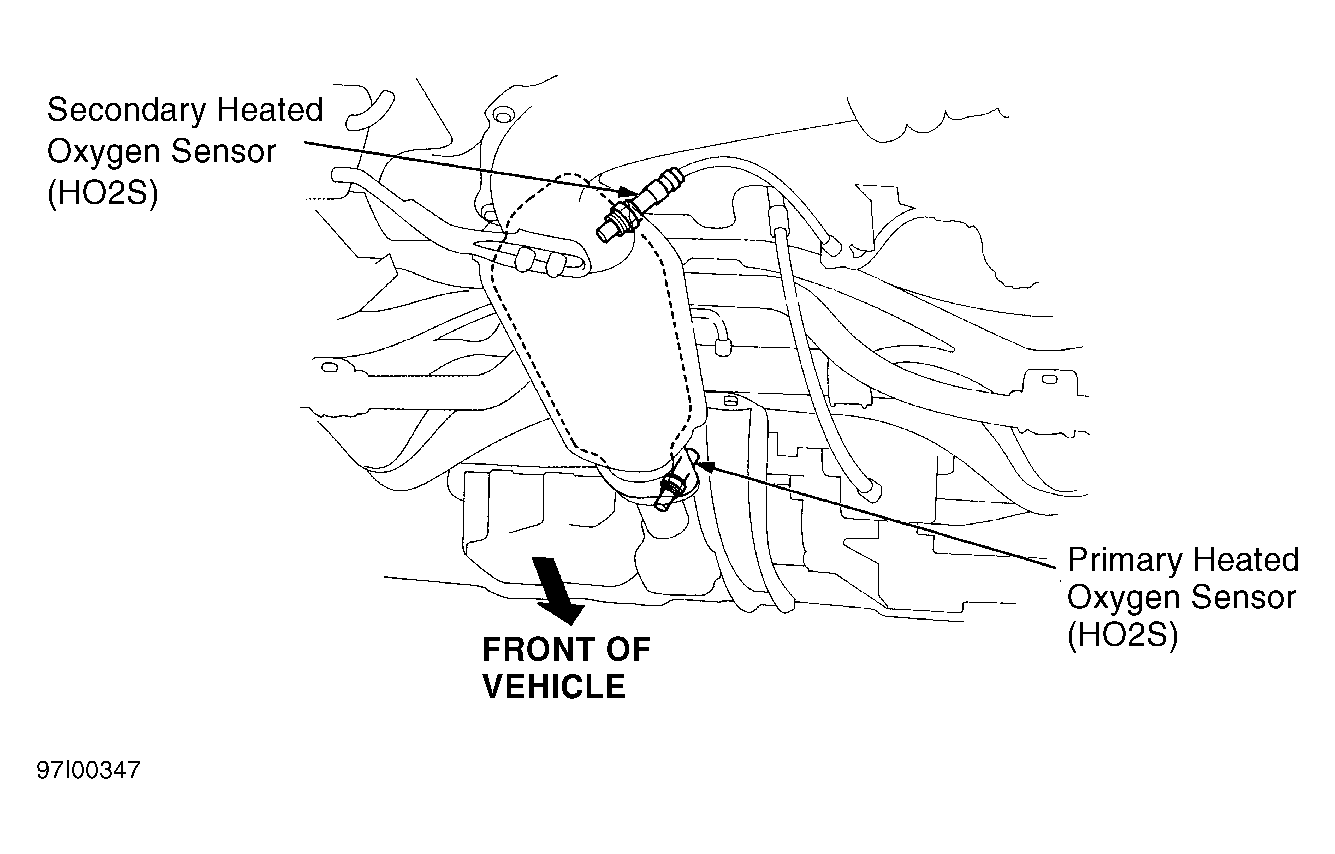

Fig 5: Underside Of Vehicle
Fig 6: Dash
Fig 7: Engine Compartment
Fig 8: Vehicle Overview
Fig 9: Dash
Fig 10: Dash
Fig 11: Dash
Fig 12: Driver's Door

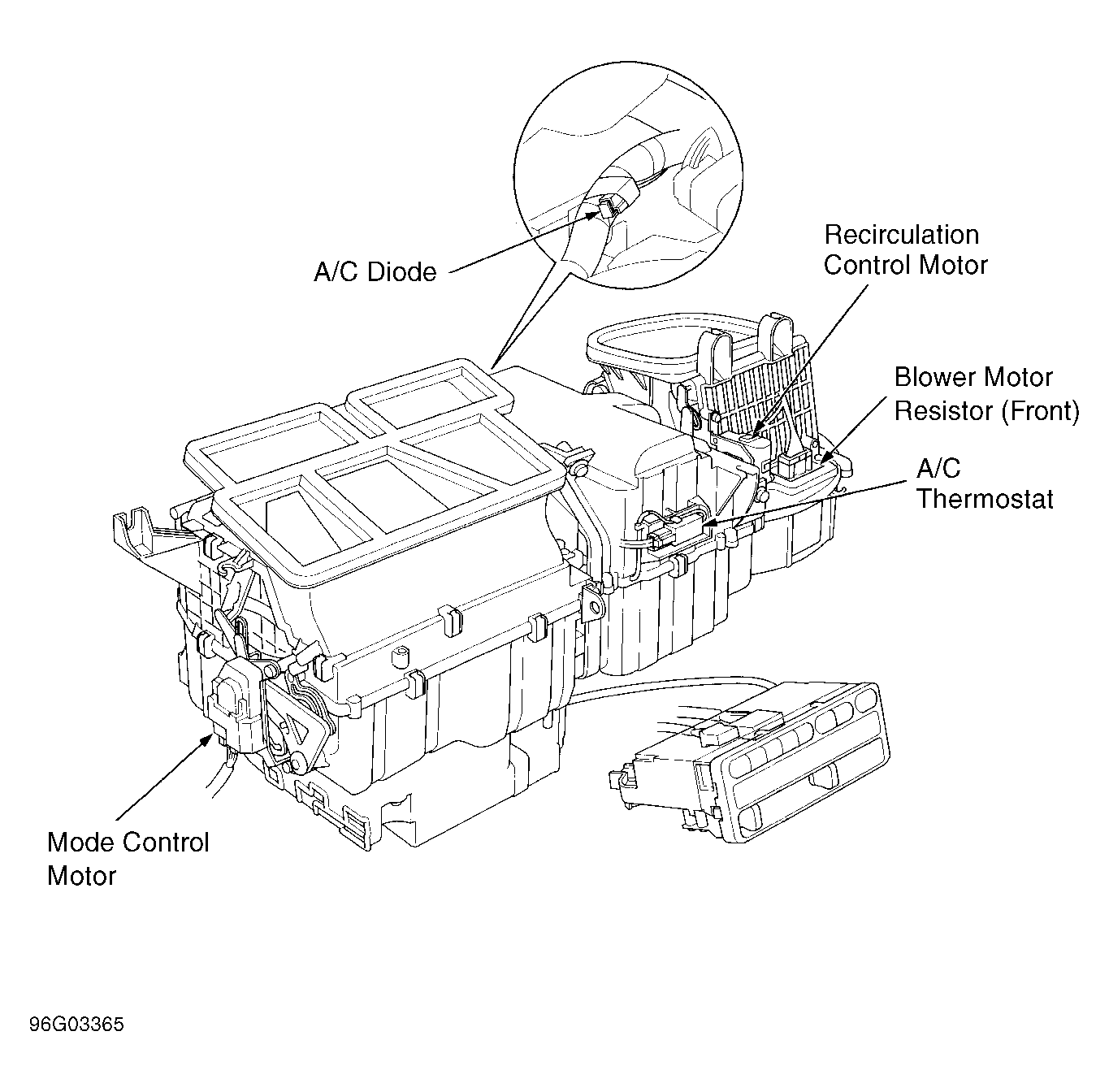

Fig 13: Heater-A/C Assembly
