Service Point Locations

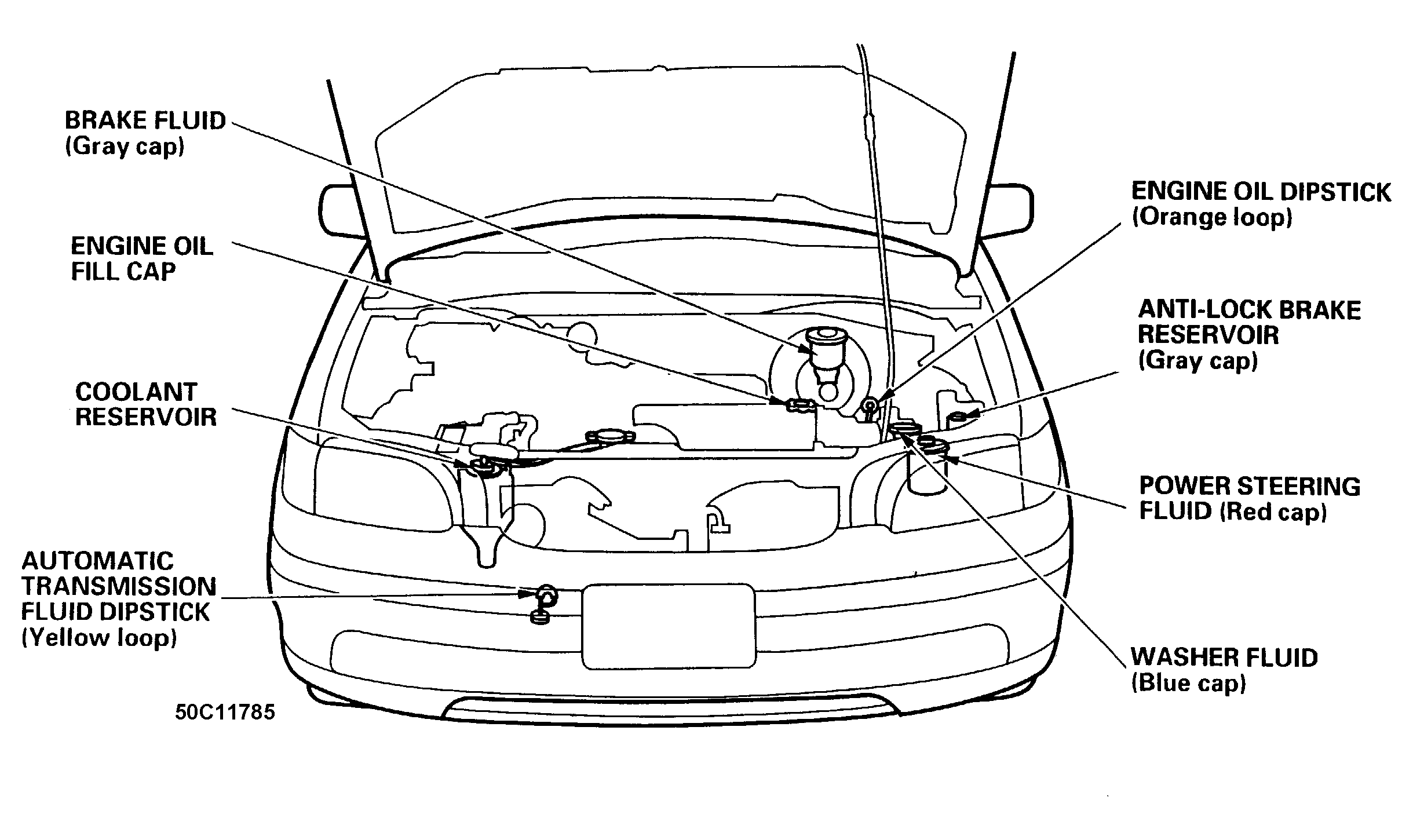

Fig 1: Service Point Locations

G50C11785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

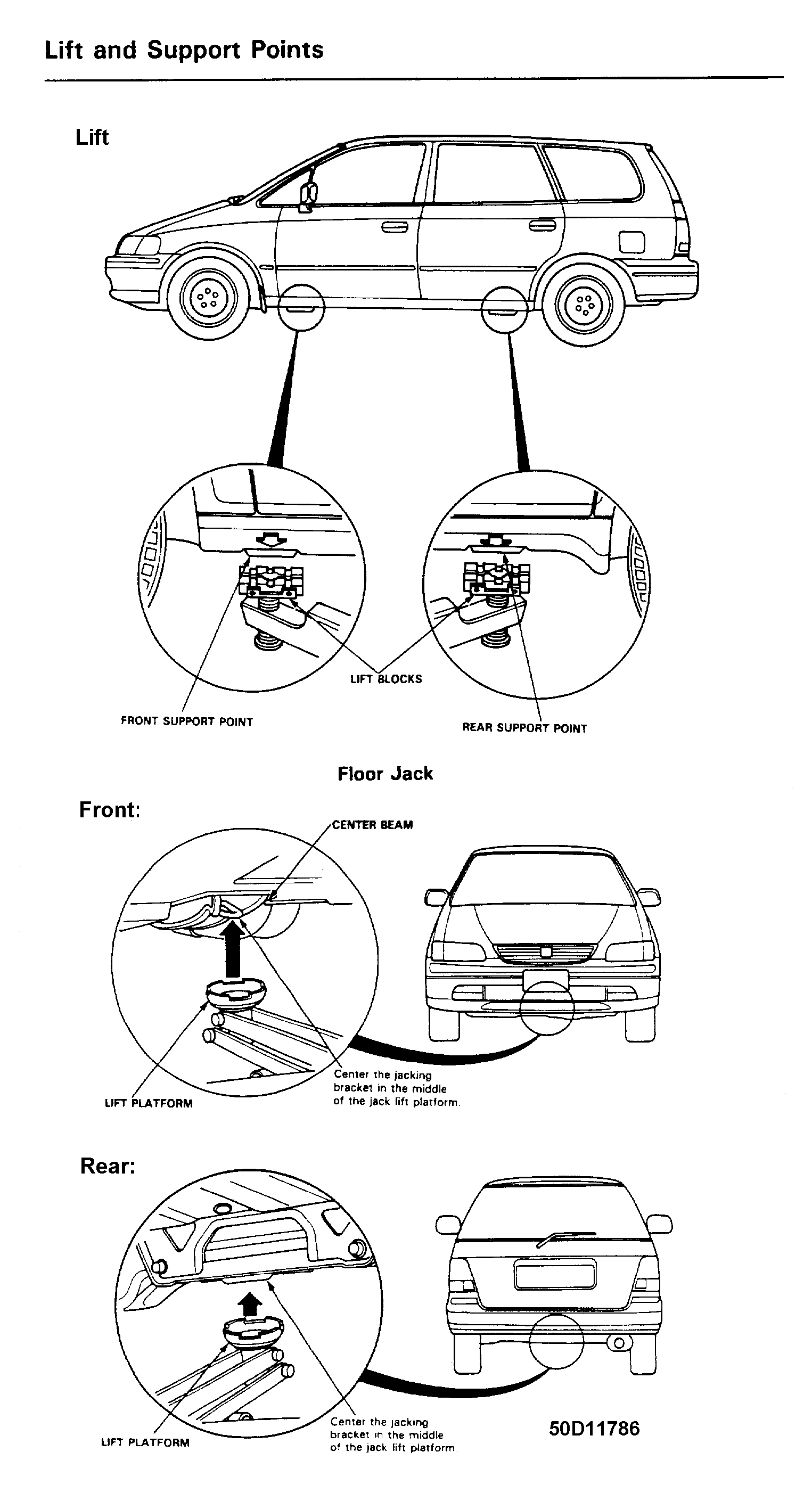

Fig 2: Lift Points

G50D11786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

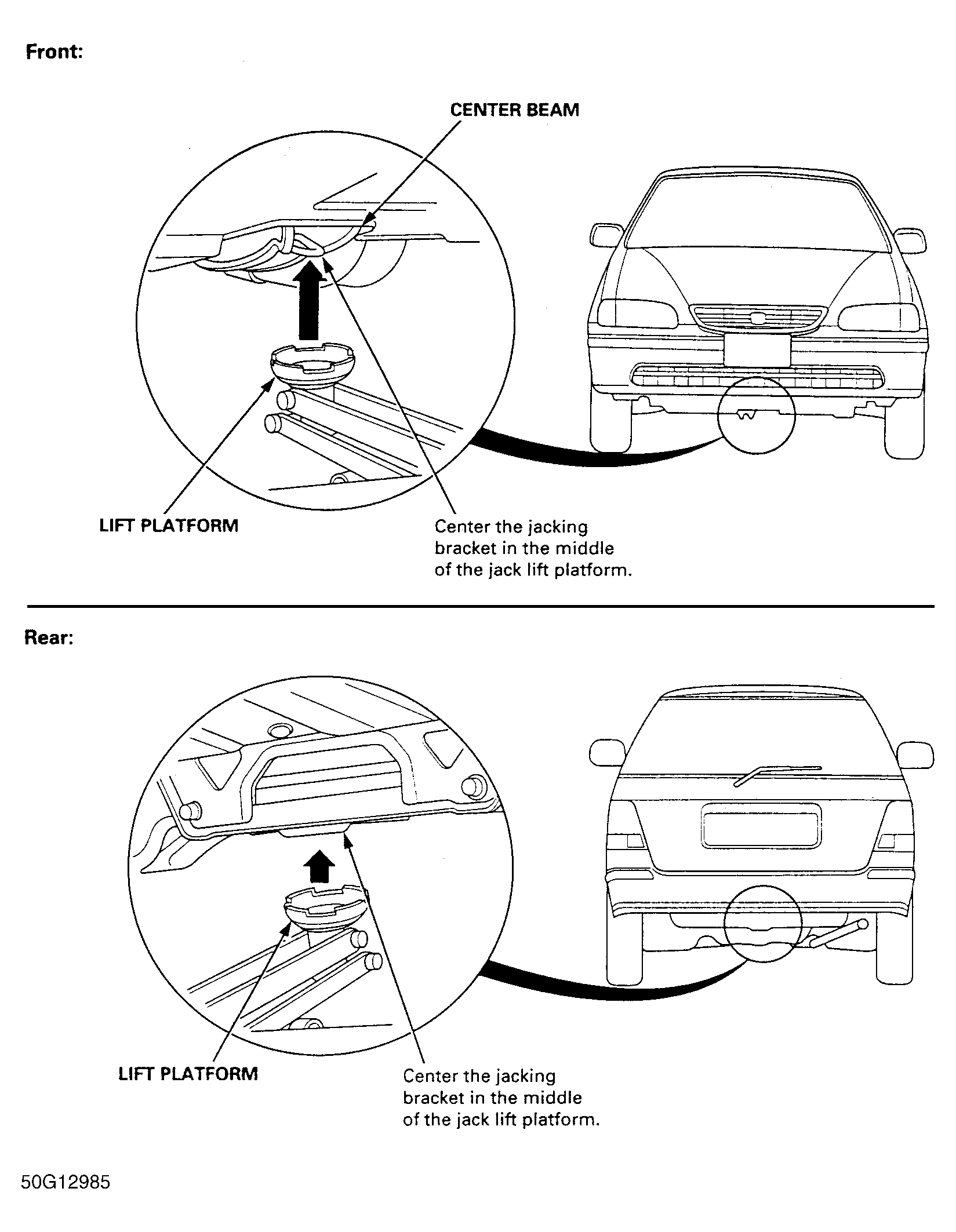

Fig 3: Floor Jack Lift Points

G50G12985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

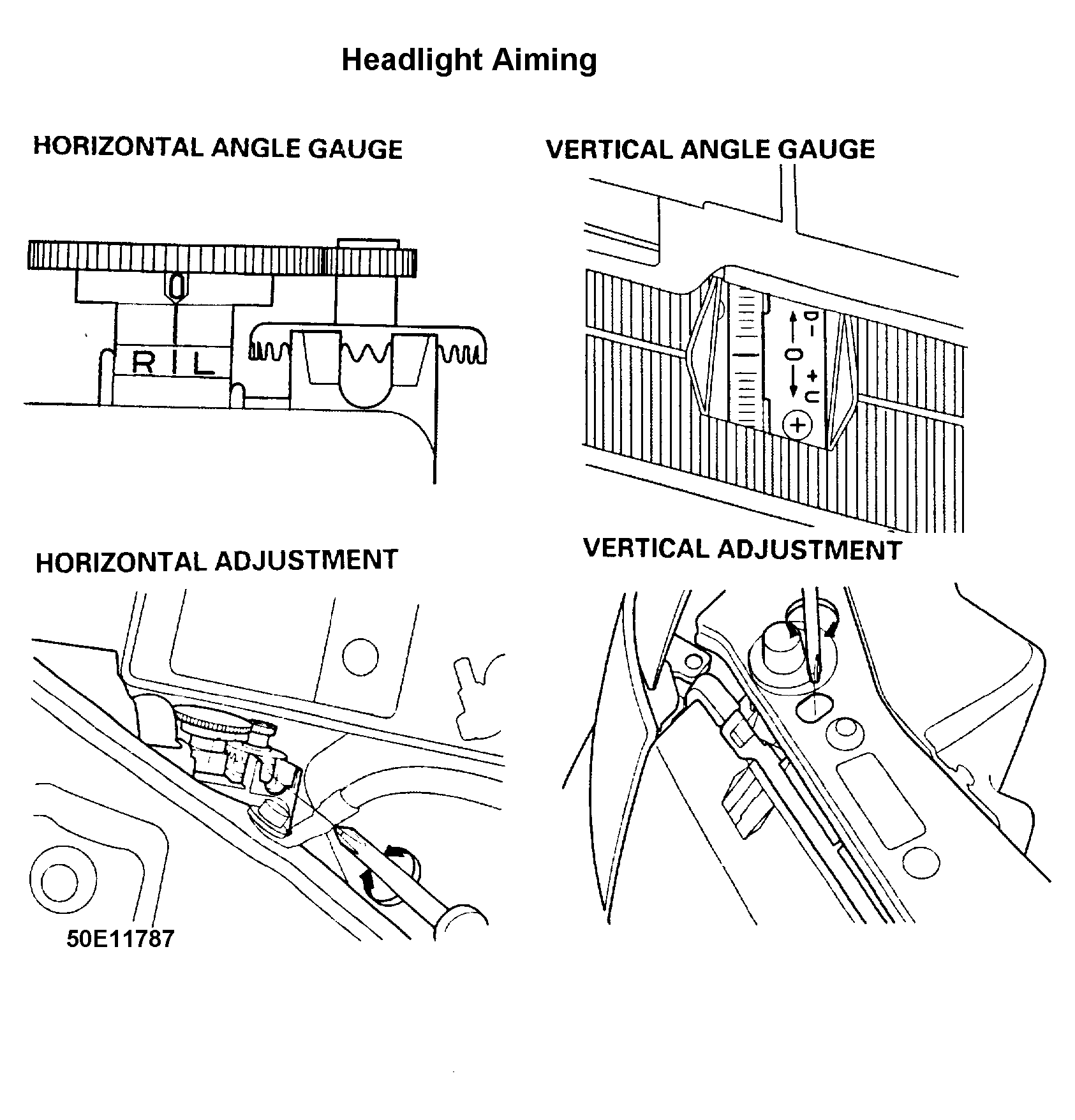

Fig 4: Headlight Aiming

G50E11787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

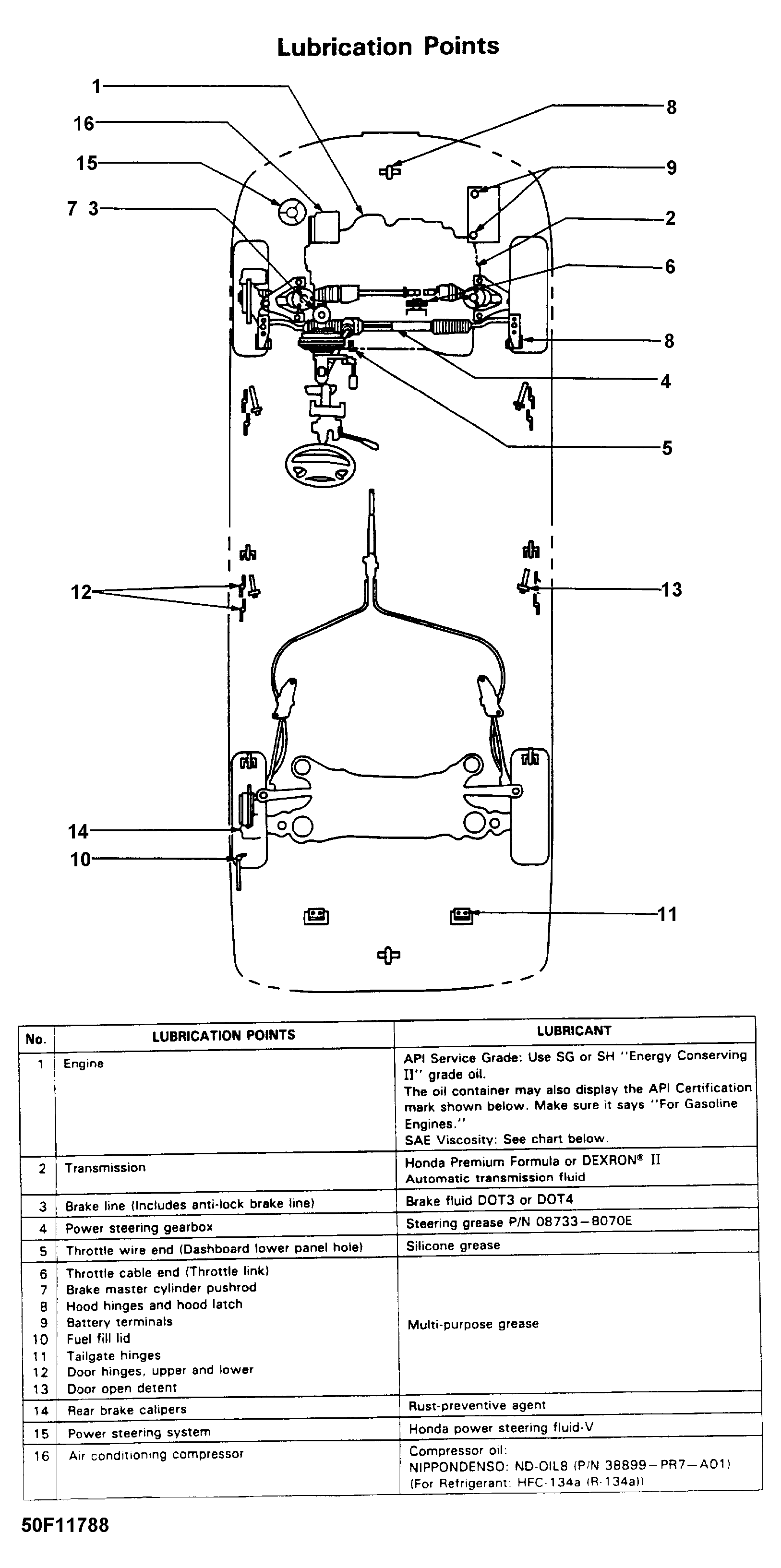

Fig 5: Lubrication Points

G50F11788

Courtesy of AMERICAN HONDA MOTOR CO., INC.
