Home >> Isuzu >> 1997 >> Rodeo LS, 3.2 V, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests - 3.2L >> Component Locations

Component Locations

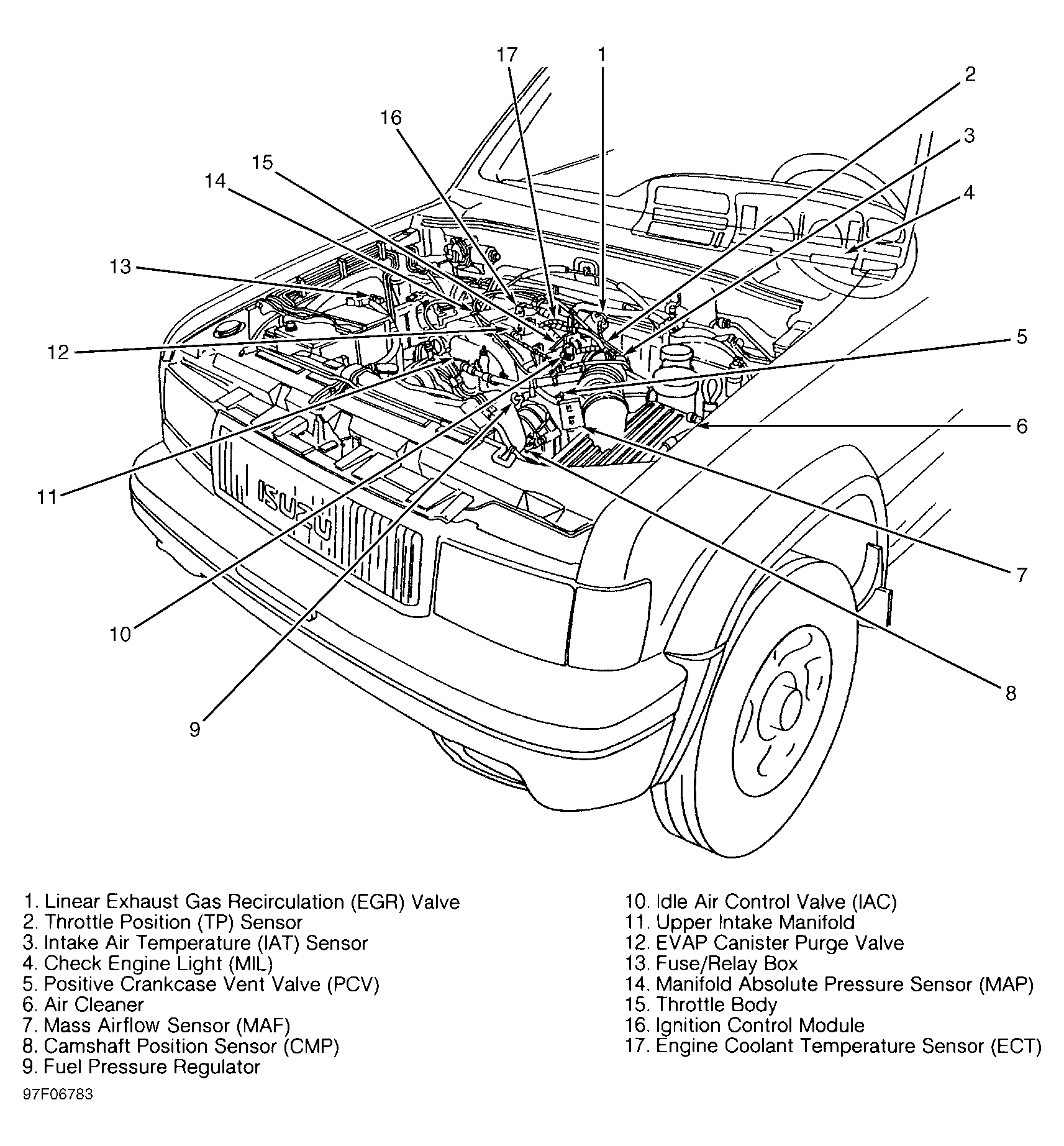

Fig 1: Component Location (3.2L)
G97F06783Courtesy of ISUZU MOTOR CO.
