Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

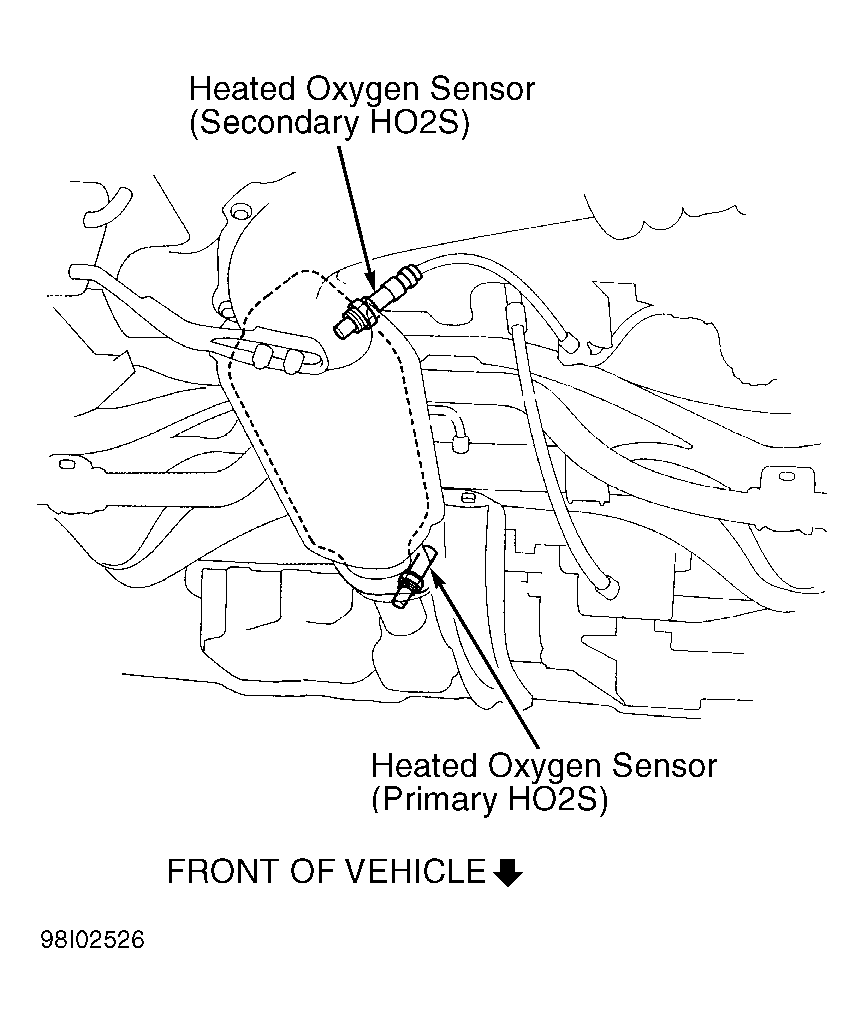

Fig 1: Underside Of Vehicle

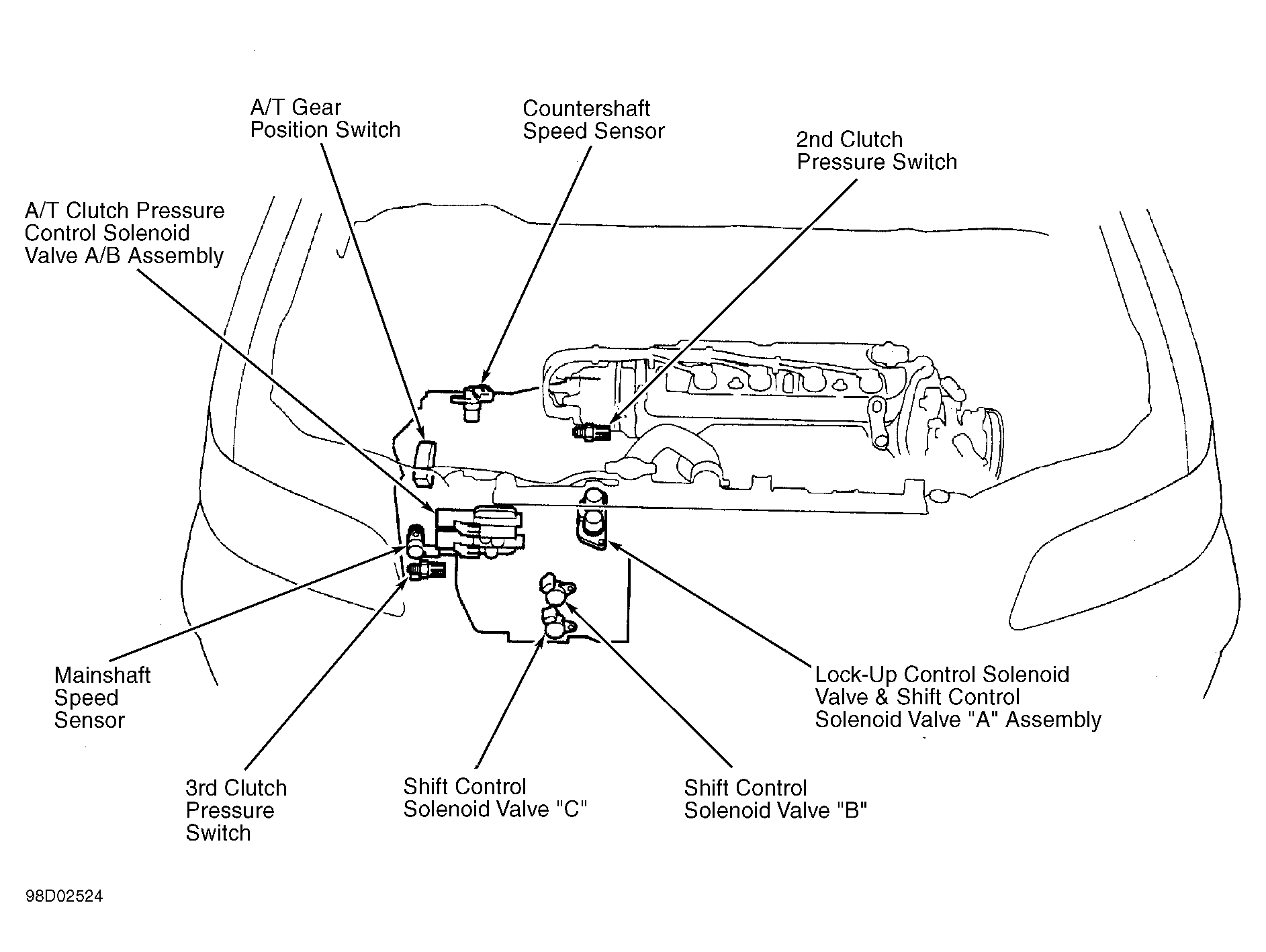

Fig 2: Engine Compartment

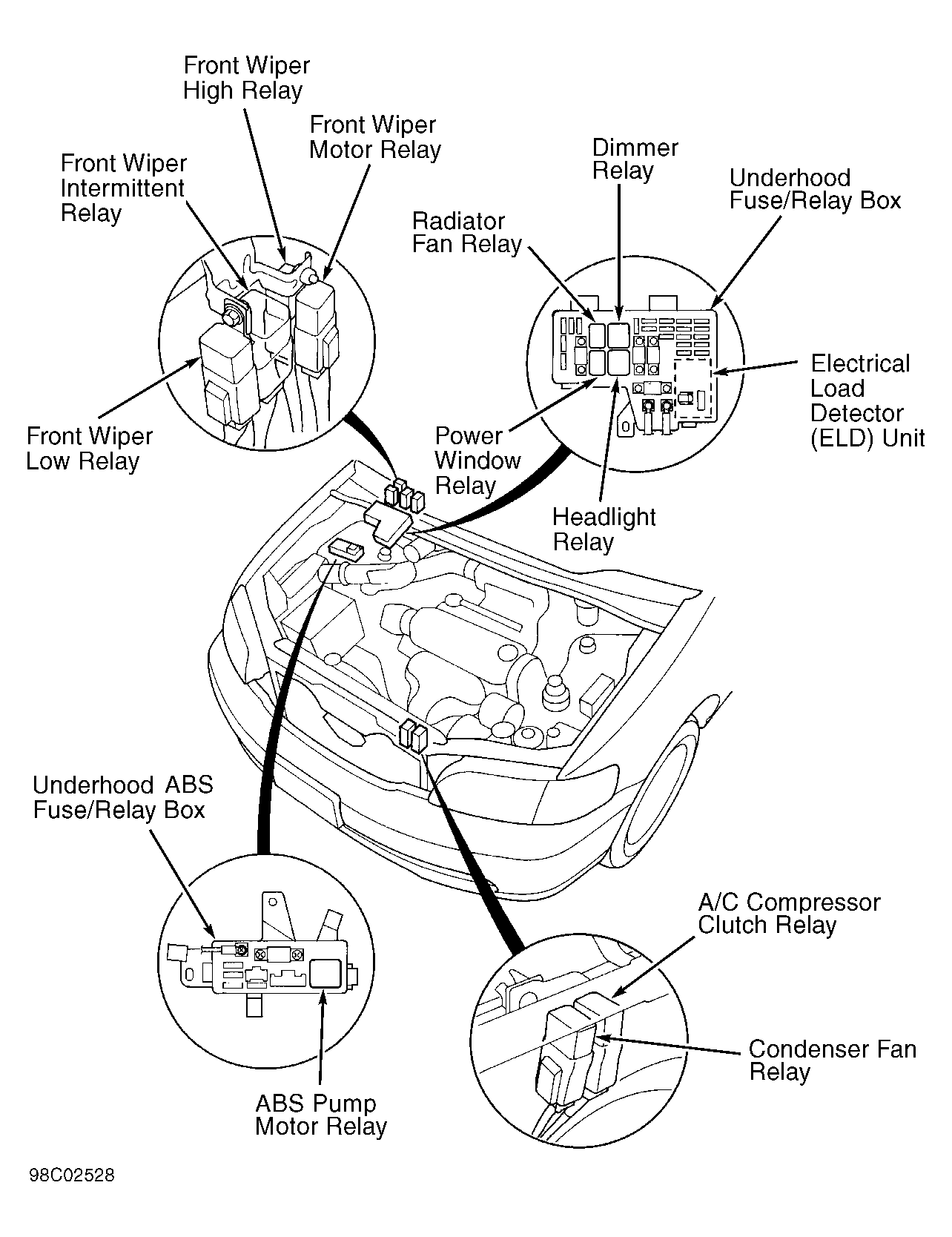

Fig 3: Engine Compartment

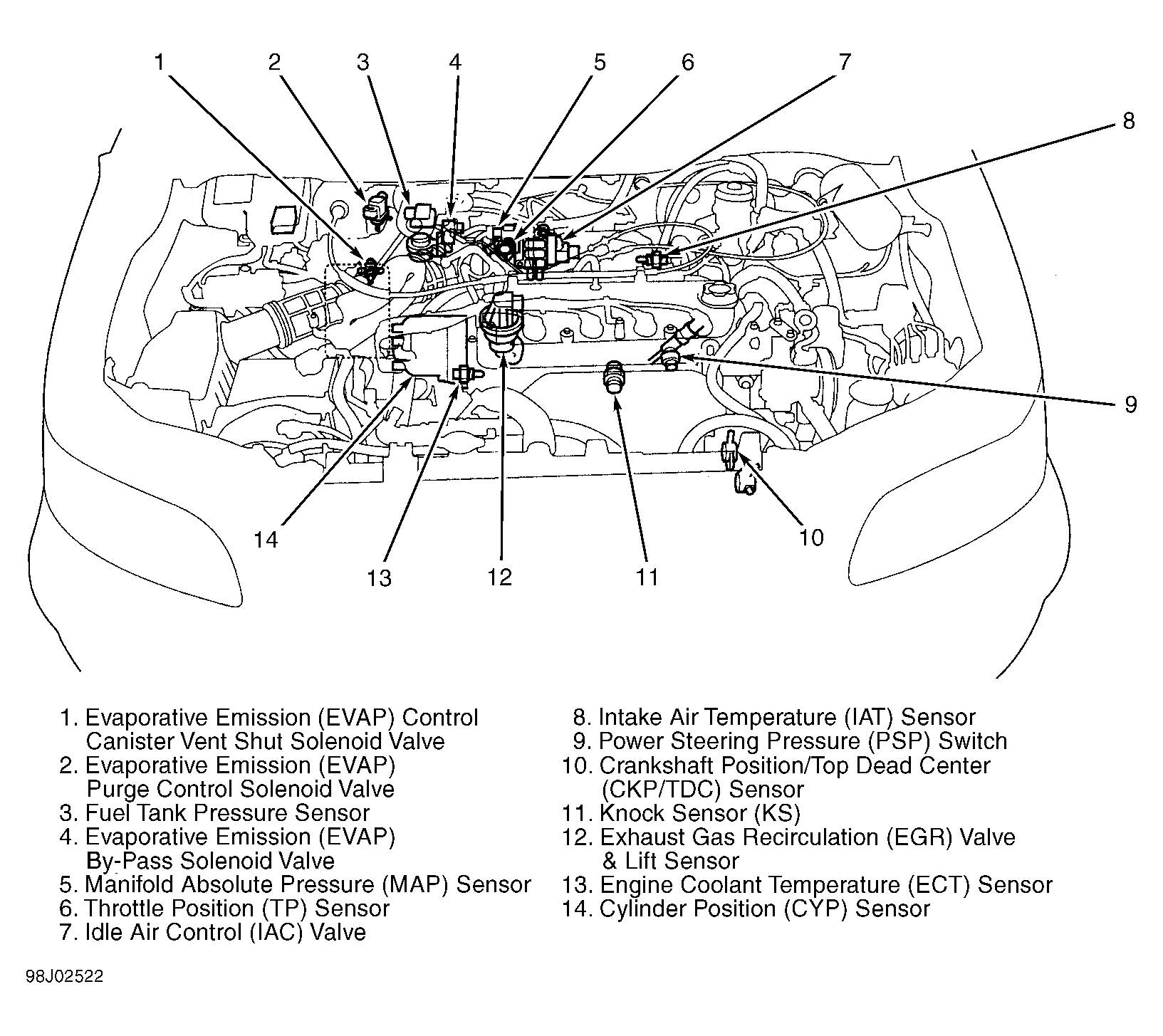

Fig 4: Engine Compartment

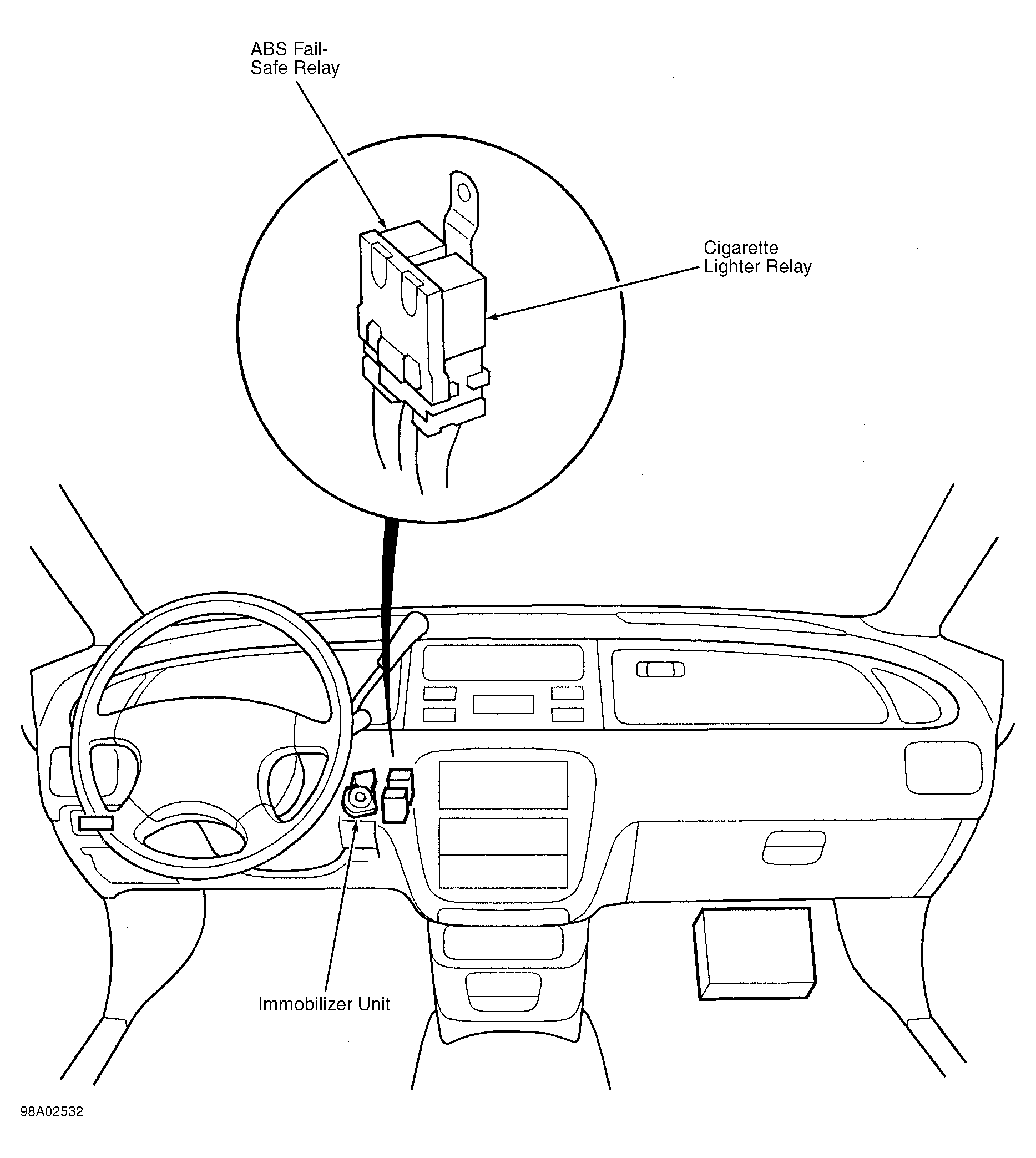

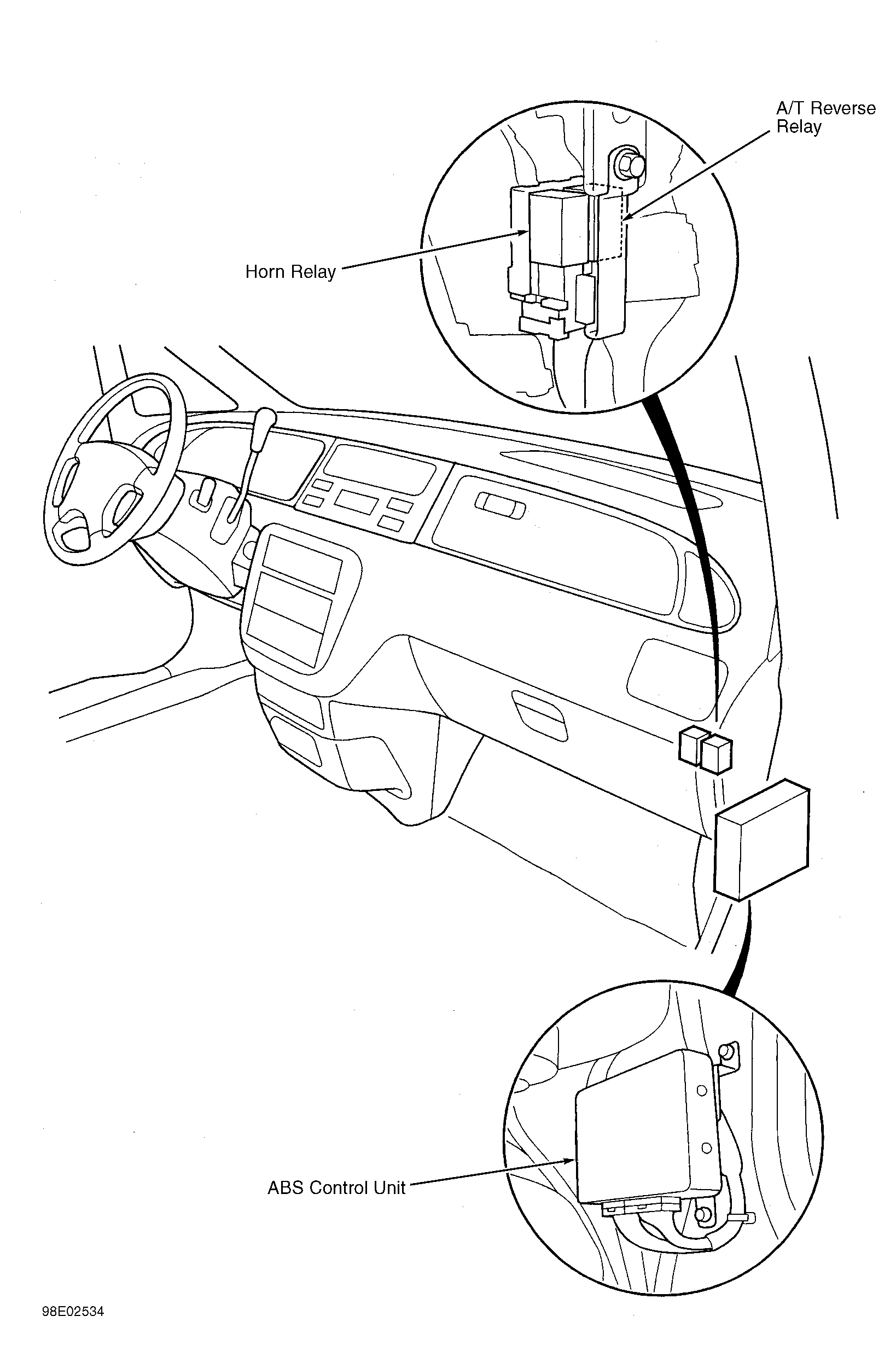

Fig 5: Dash

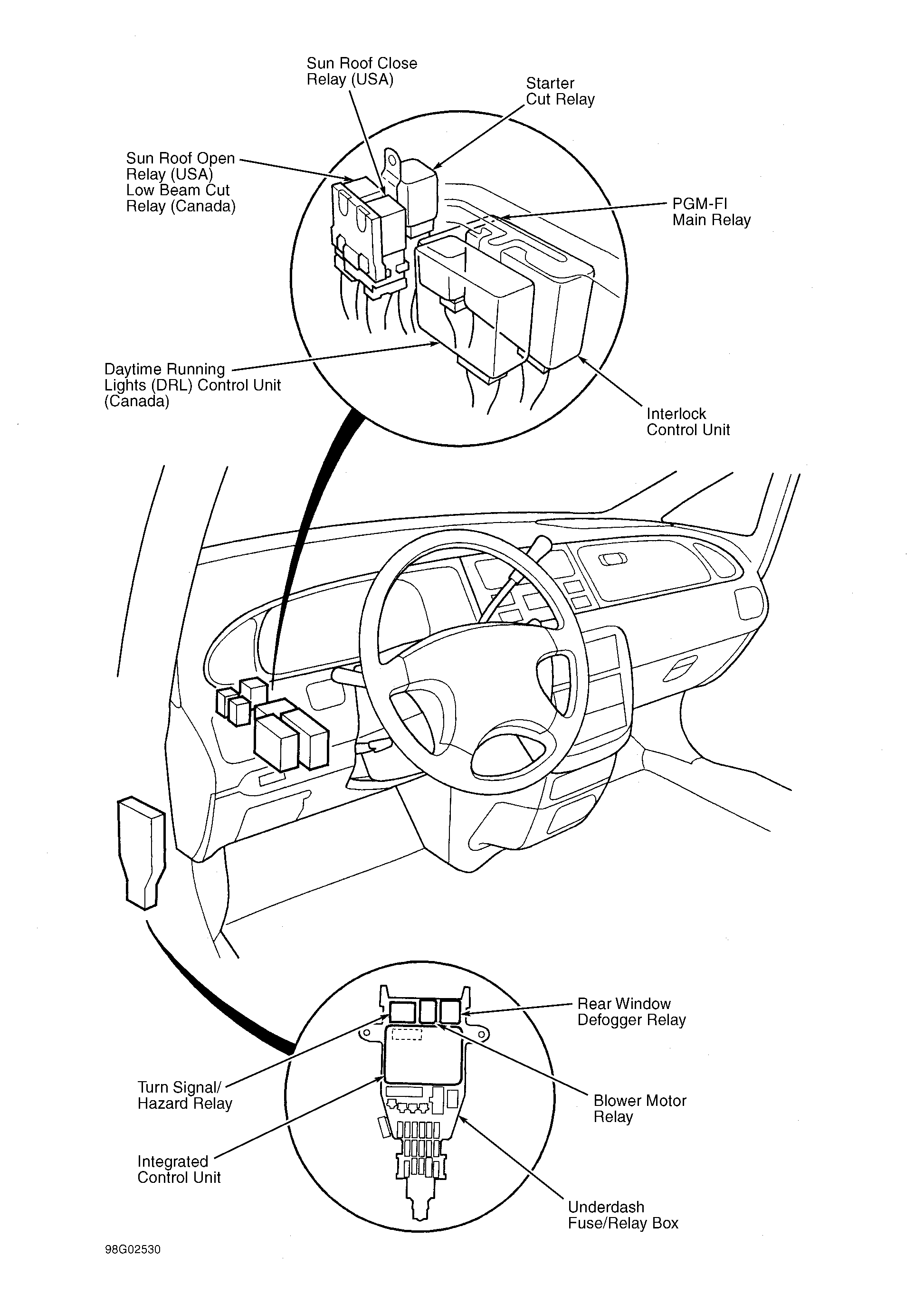

Fig 6: Driver's Door

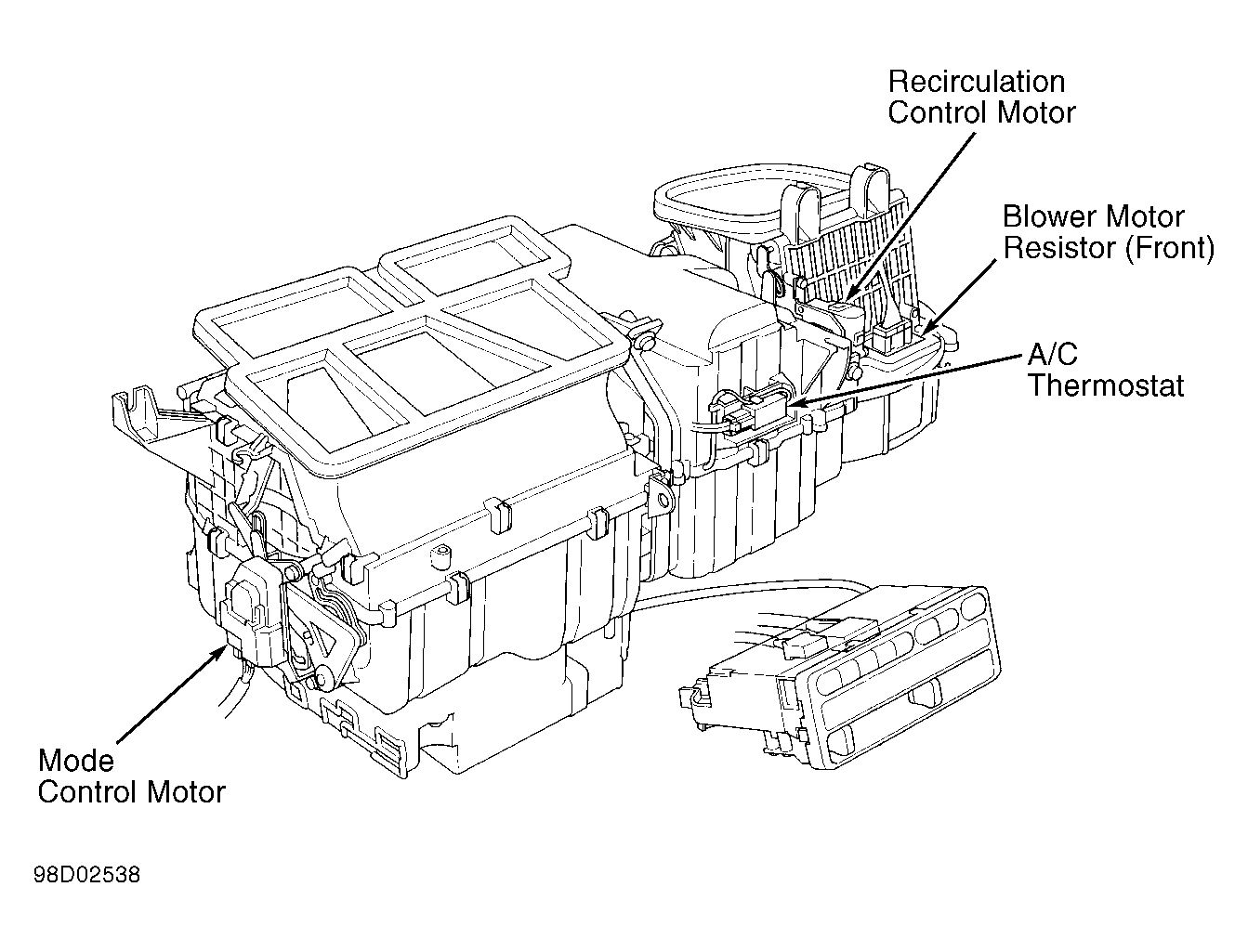

Fig 7: Heater-A/C Assembly

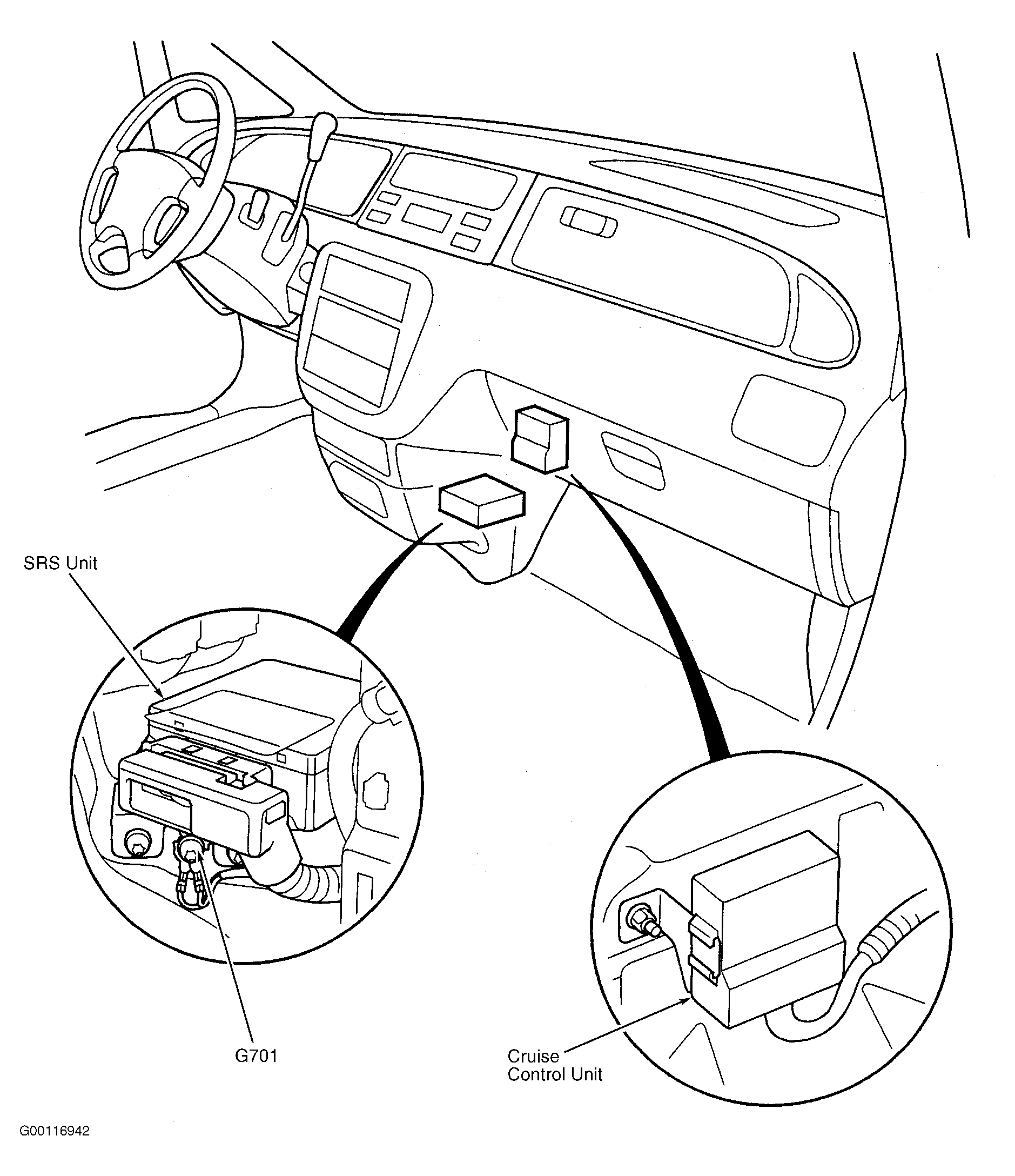

Fig 8: Dash

Fig 9: Dash

Fig 10: Dash

Fig 11: Dash
