Component Locations

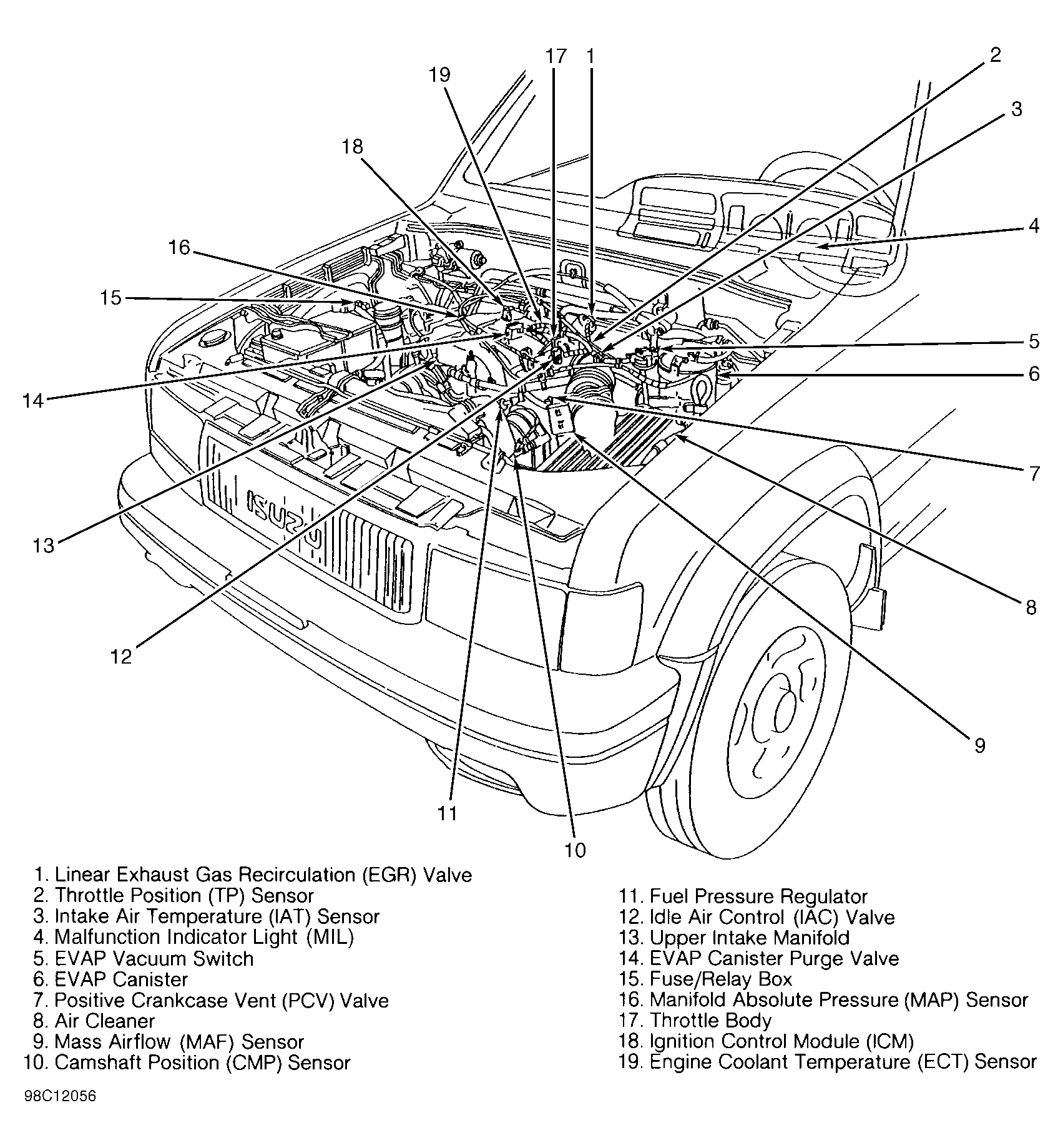

Fig 1: Component Location (Amigo, Rodeo & Passport 2.2L)

Courtesy of ISUZU MOTOR CO.

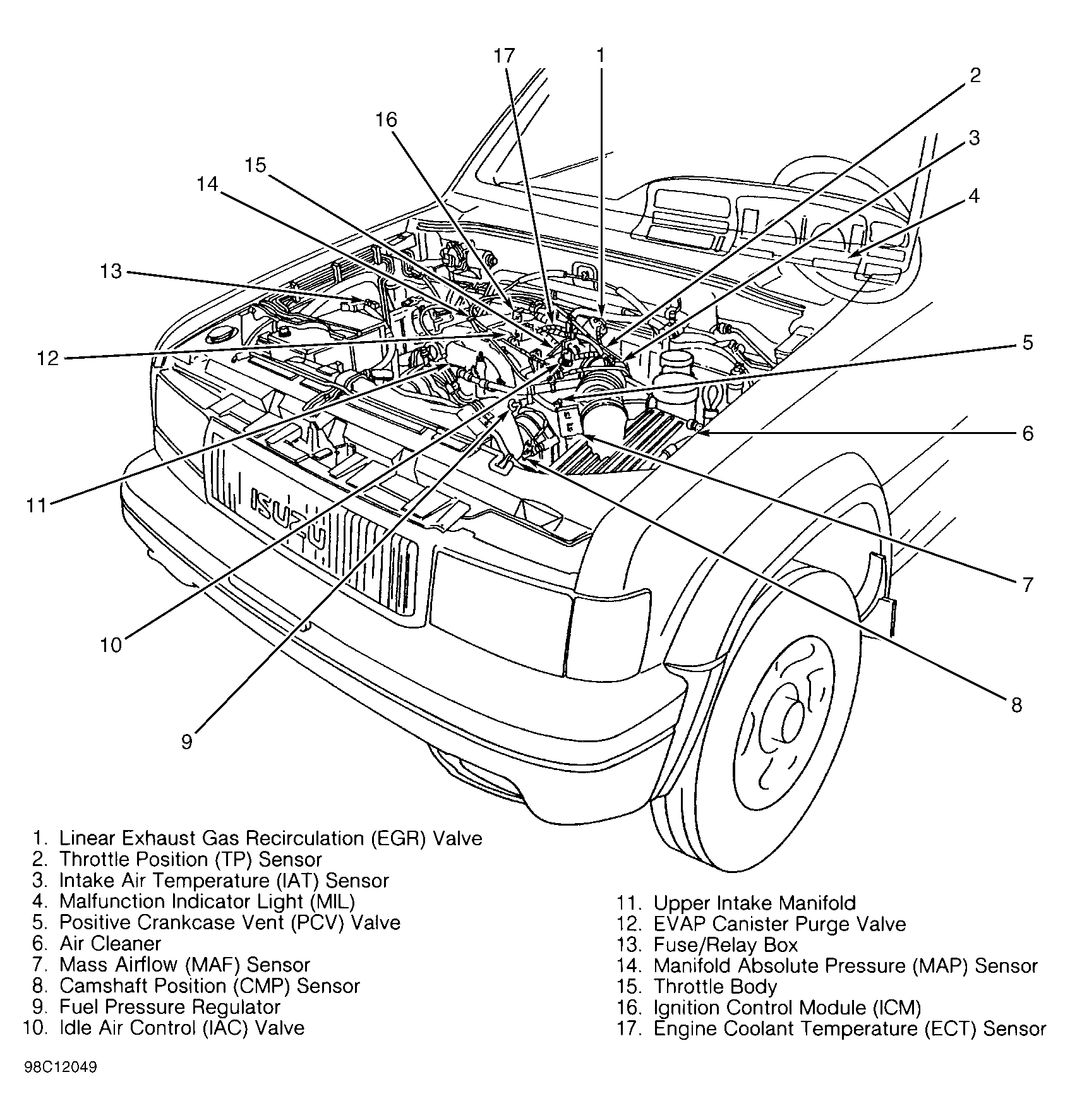

Fig 2: Component Location (Amigo, Rodeo & Passport 3.2L)

Courtesy of ISUZU MOTOR CO.

Fig 3: Component Location (Hombre 2.2L) Engine Left Side

Courtesy of ISUZU MOTOR CO.

Fig 4: Component Location (Hombre 2.2L) Engine Right Side

Courtesy of ISUZU MOTOR CO.

Fig 5: Component Location (Hombre 2.2L) Engine Rear View

Courtesy of ISUZU MOTOR CO.

Fig 6: Component Location (Hombre 4.3L) Engine Right Side

Courtesy of ISUZU MOTOR CO.

Fig 7: Component Location (Hombre 4.3L) Engine Right/ Rear View

Courtesy of ISUZU MOTOR CO.

Fig 8: Component Location (Hombre 4.3L) Engine Left View

Courtesy of ISUZU MOTOR CO.

Fig 9: Component Location (Trooper & SLX)

Courtesy of ISUZU MOTOR CO.
