Home >> Isuzu >> 1998 >> Rodeo LS, 2.2 D >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Service Point Locations

Service Point Locations

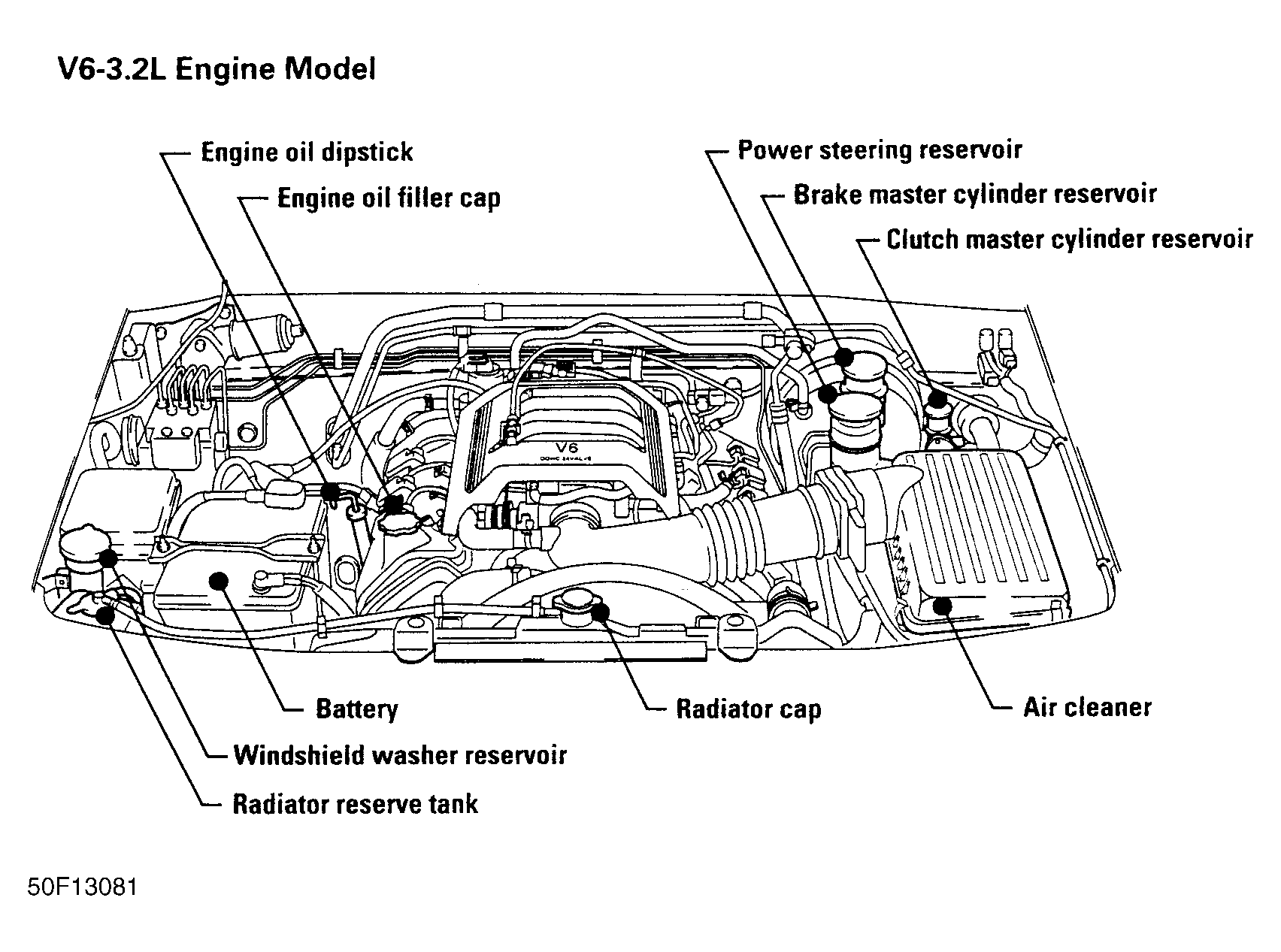

Fig 1: Engine Service Point Locations (3.2L)
G50F13081Courtesy of ISUZU MOTOR CO.

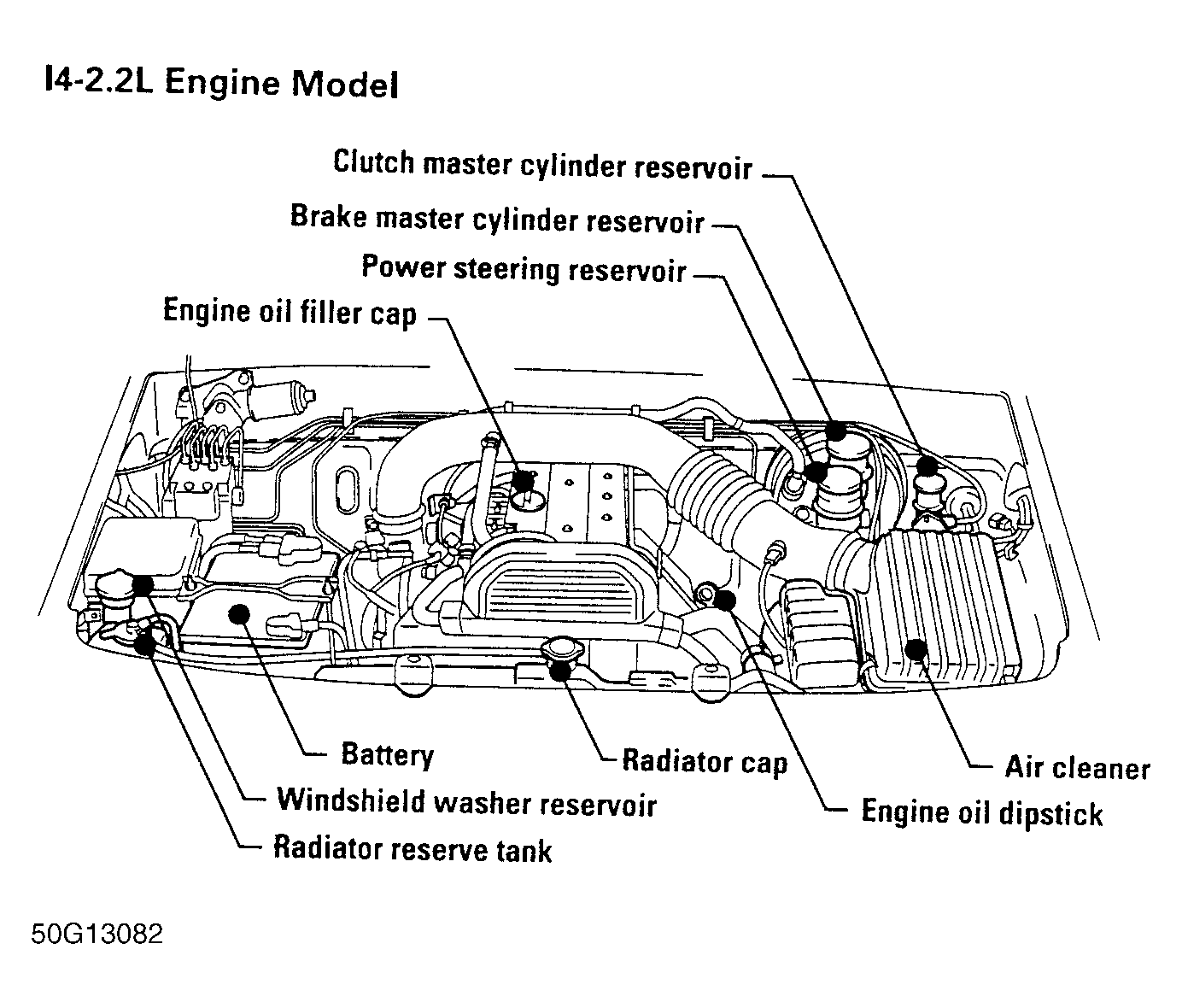

Fig 2: Engine Service Point Locations (2.2L)
G50G13082Courtesy of ISUZU MOTOR CO.

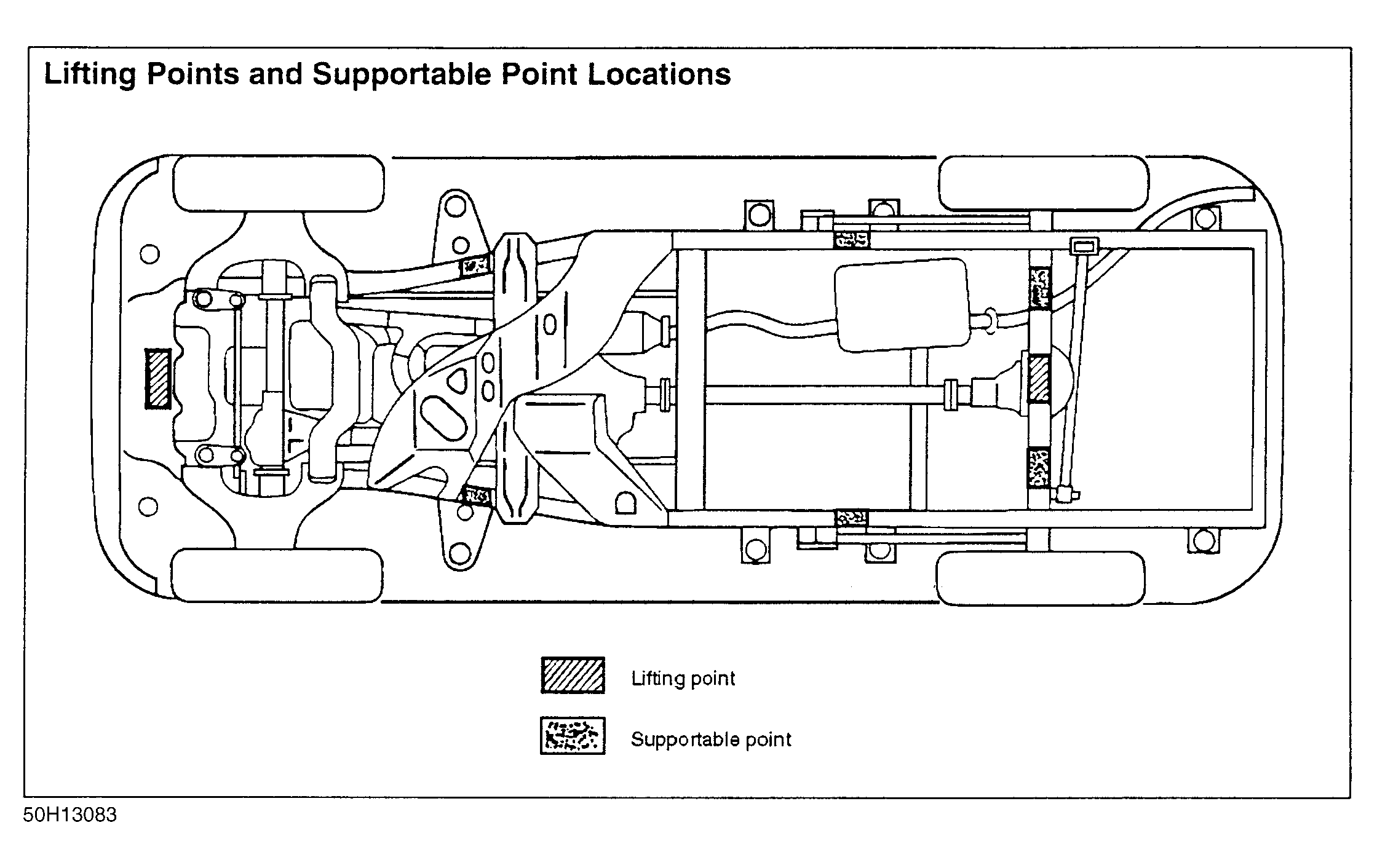

Fig 3: Lift Points
G50H13083Courtesy of ISUZU MOTOR CO.
