Component Tests: Notes

NOTE: Perform basic diagnostic test before and after performing any of the following component tests, and after completing any repairs. See BASIC DIAGNOSTIC TEST under DIAGNOSTIC TESTS.

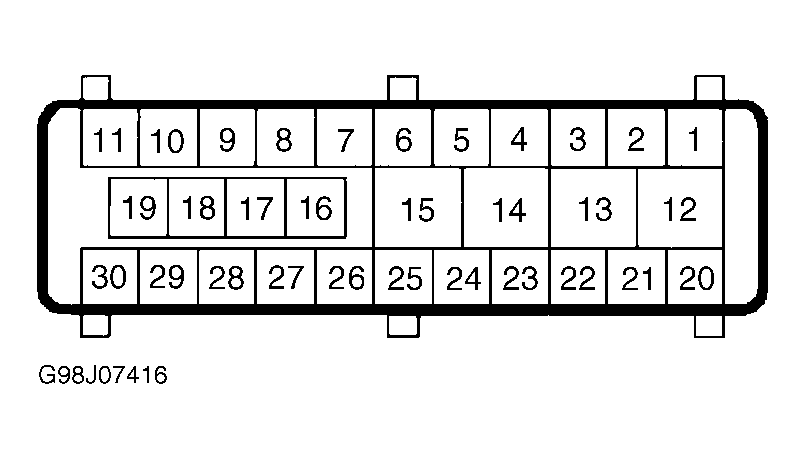

NOTE: To aid in wire color and terminal identification and/or component location, see WIRING DIAGRAMS . Refer to illustration for EHCU harness connector terminal identification. See Figure .
