Window Glass
Window Glass

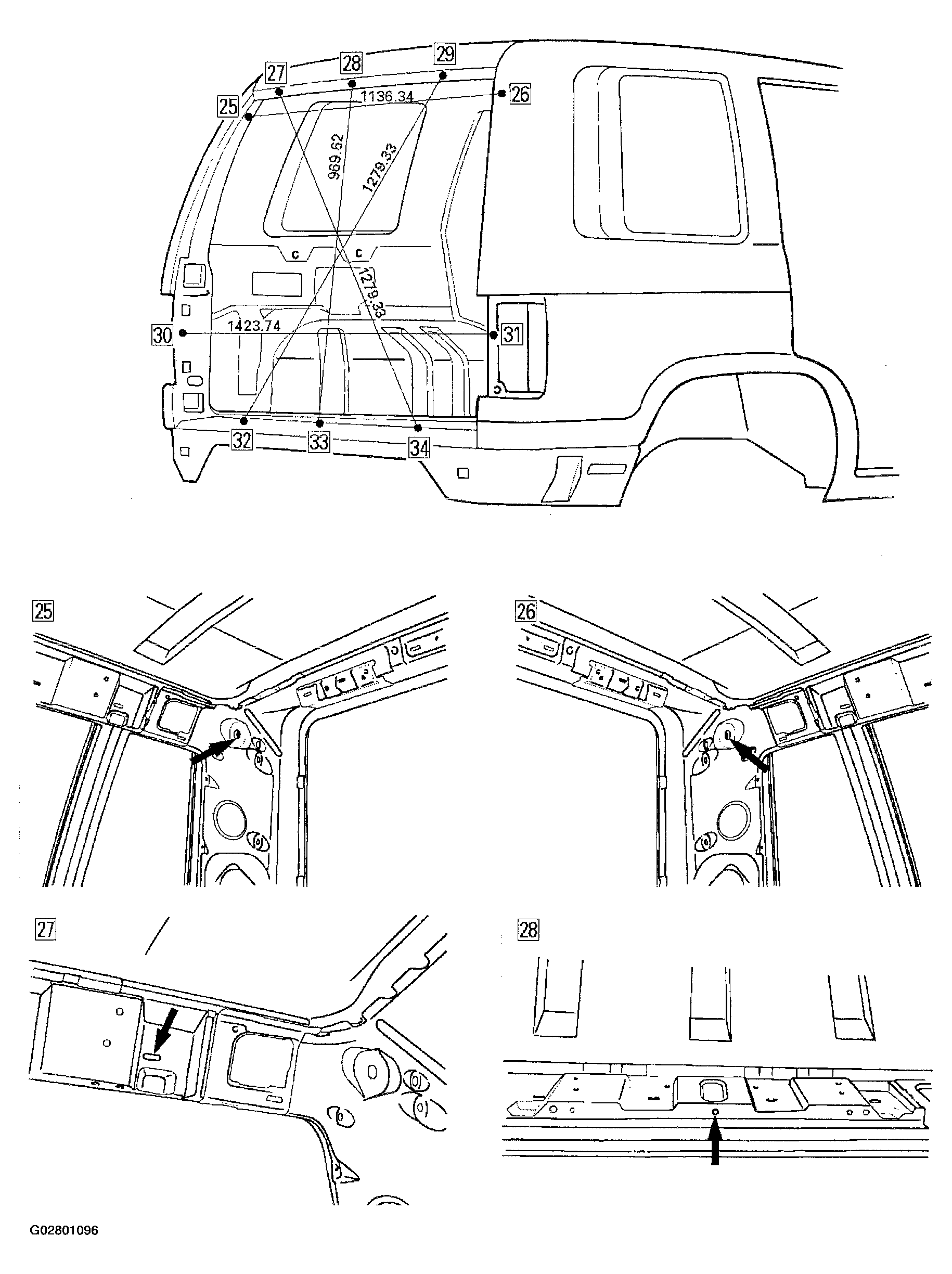

Fig 1: Identifying Window Glass Dimensions (1 Of 4)
Courtesy of ISUZU MOTOR CO.

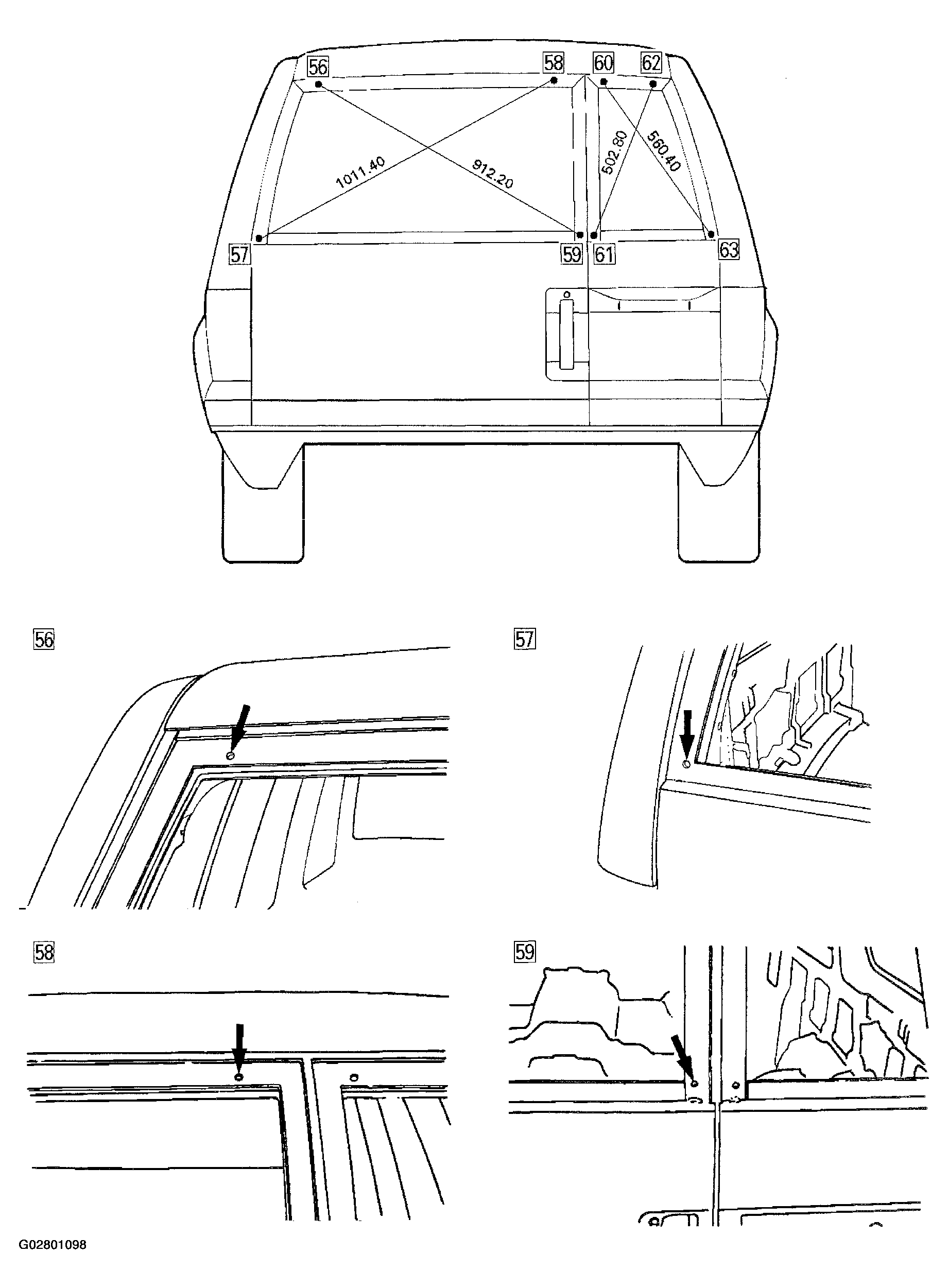

Fig 2: Identifying Window Glass Dimensions (2 Of 4)
Courtesy of ISUZU MOTOR CO.

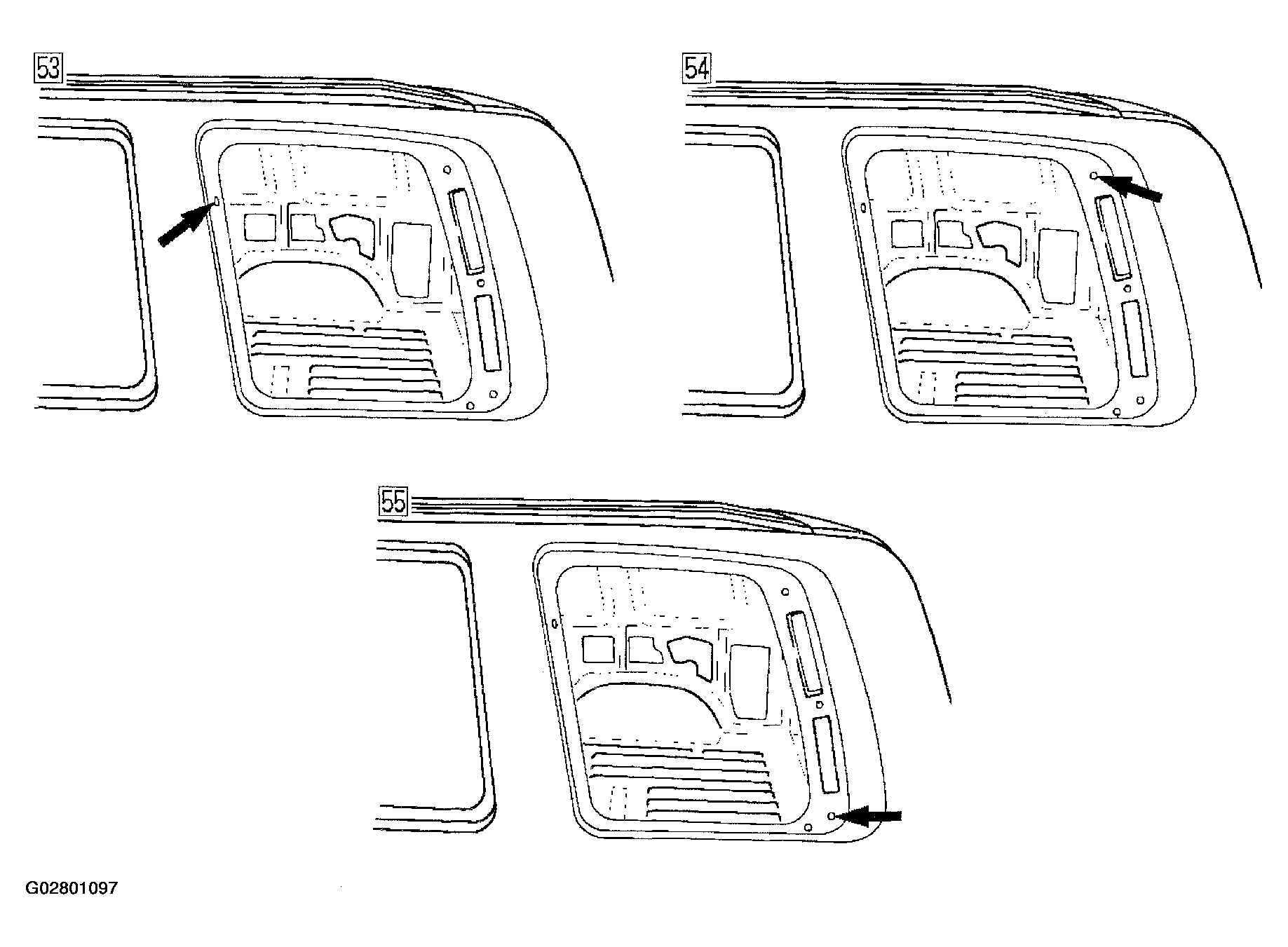

Fig 3: Identifying Window Glass Dimensions (3 Of 4)
Courtesy of ISUZU MOTOR CO.

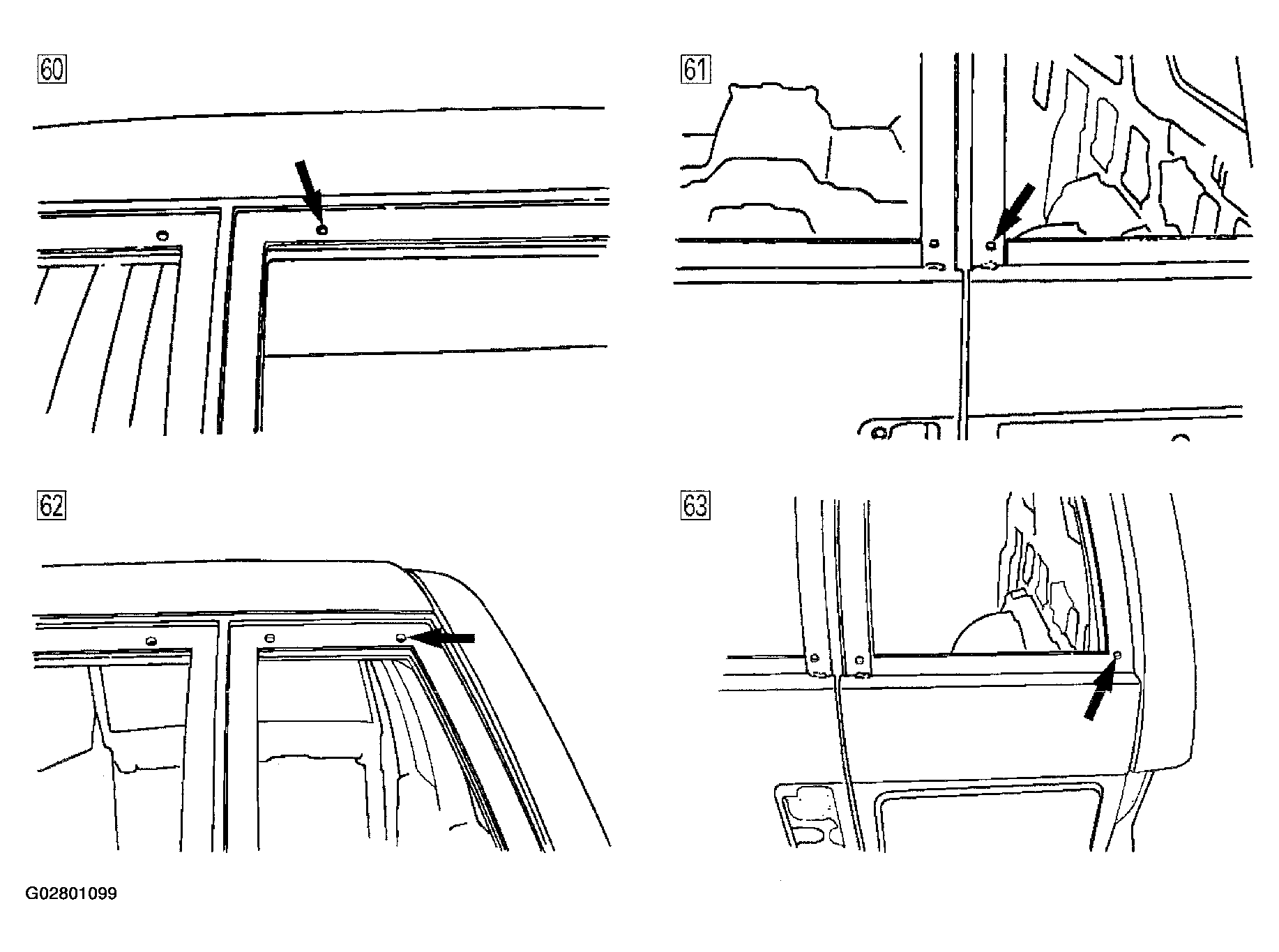

Fig 4: Identifying Window Glass Dimensions (4 Of 4)
Courtesy of ISUZU MOTOR CO.
