Rear Air Deflector: Installation

To install, follow the removal steps in the reverse order, noting the following points.

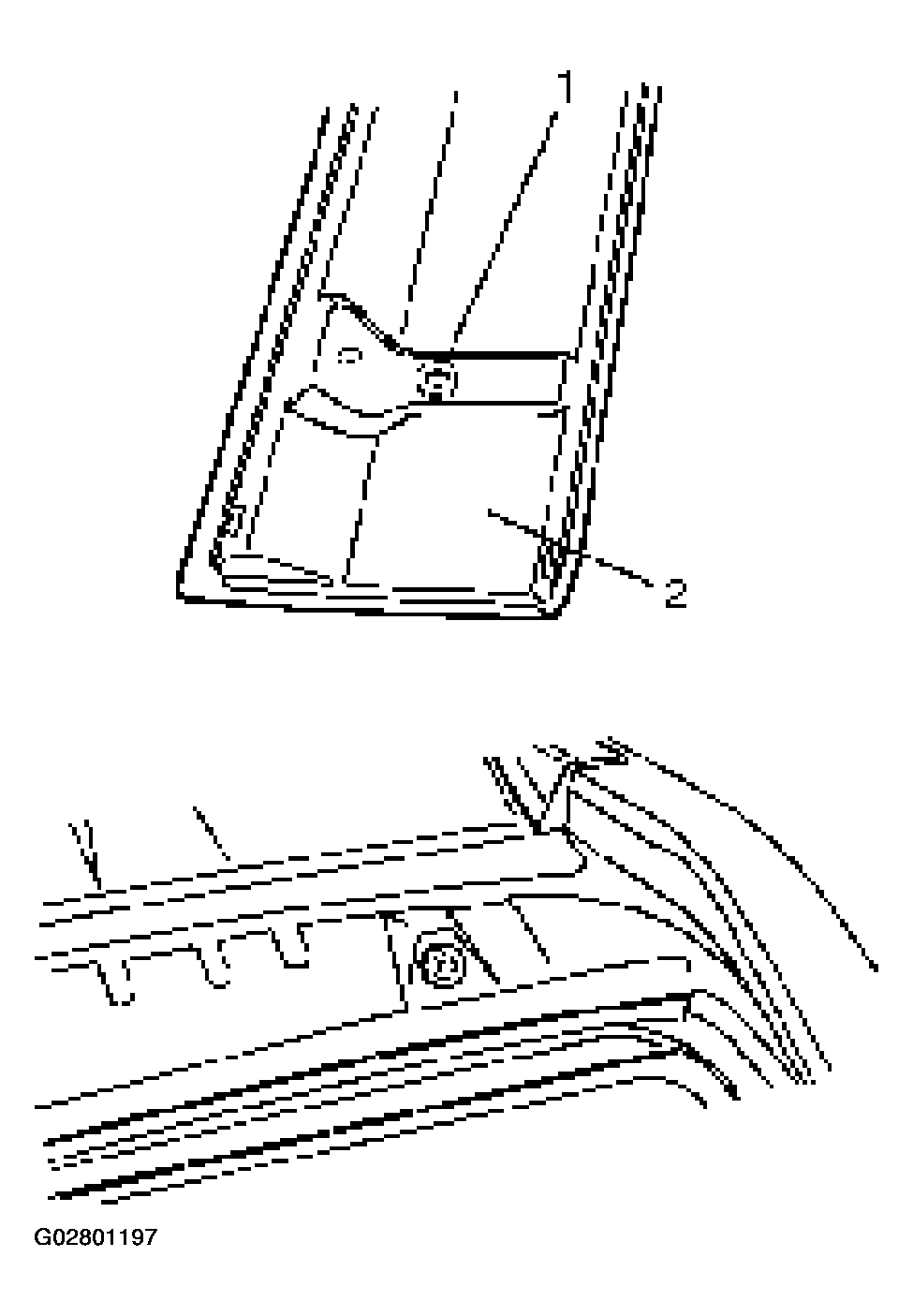

1. Install the grommet (1) to the air deflector (2) drain hole.
   Fig 1: Installing Grommet To Air Deflector Drain Hole

   Courtesy of ISUZU MOTOR CO.

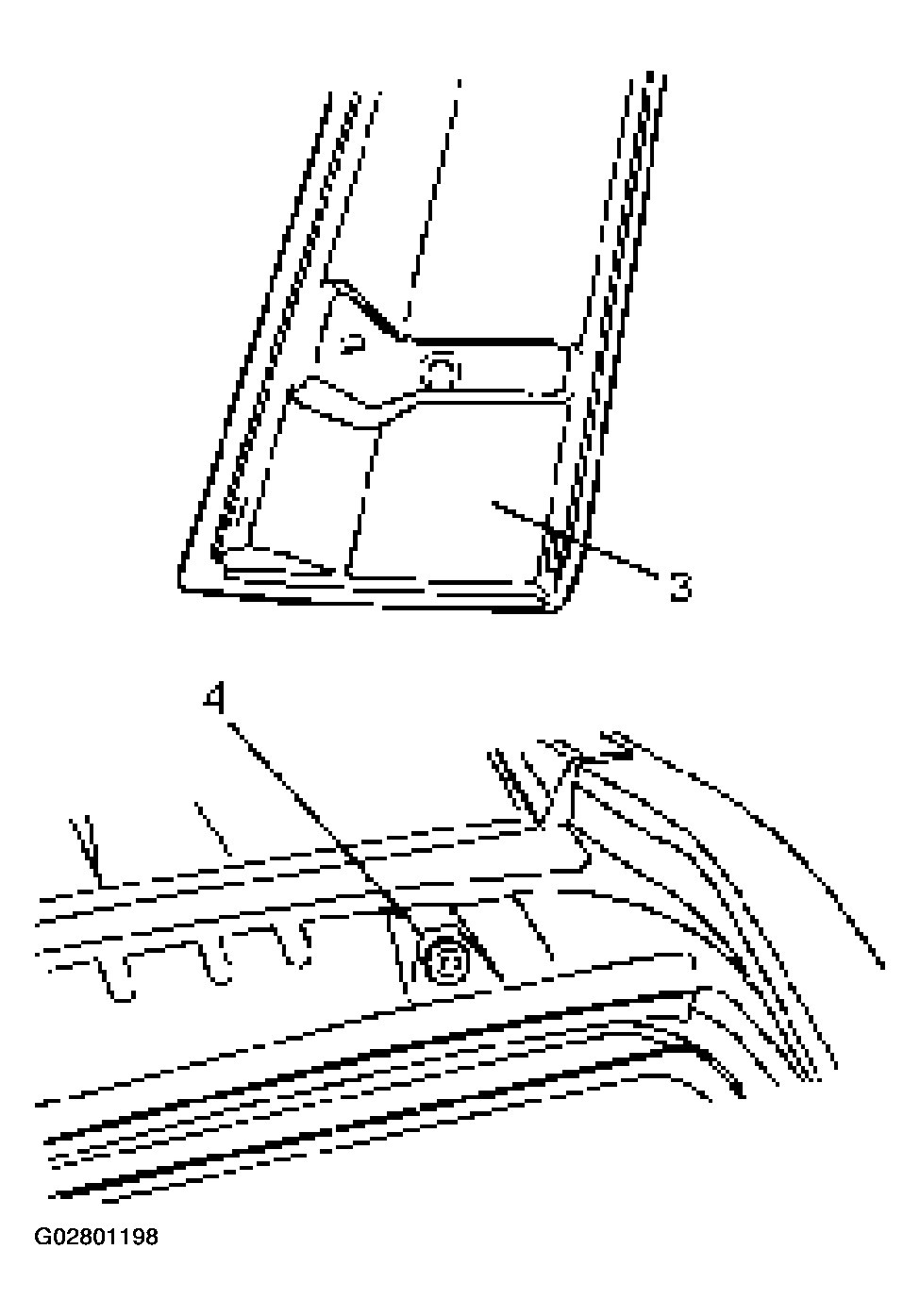

2. Use a new nylon washer (4). Peel off the adhesive tape of the washer to install the nylon washer to the air deflector (3).
   Fig 2: Installing Nylon Washer To Air Deflector

   Courtesy of ISUZU MOTOR CO.

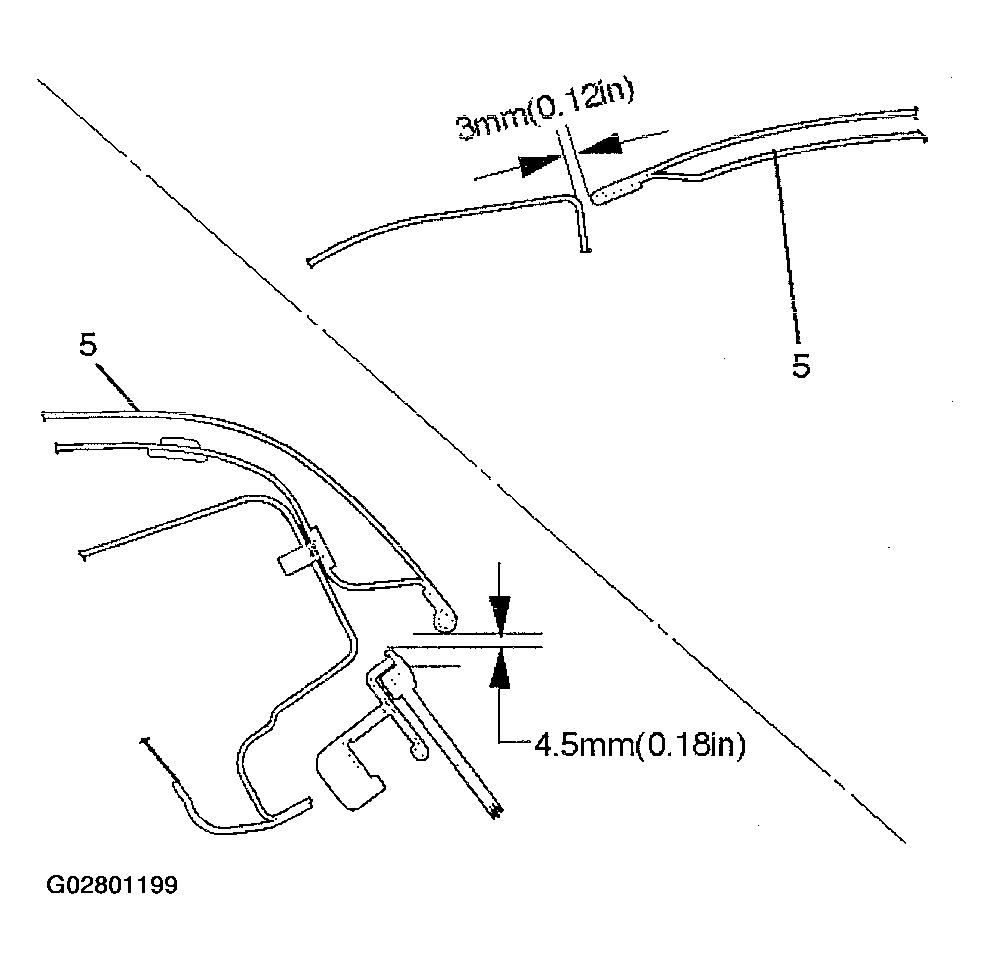

3. Install the air deflector (2) to the roof by referring to the specified values shown in the illustration.
   Fig 3: Installing Air Deflector To Roof

   Courtesy of ISUZU MOTOR CO.
4. Tighten the deflector fixing to the specified torque.

Bolt Torque:  6 N.m (52 lb in)

Nut Torque:  8 N.m (69 lb in)
