Vacuum Diagrams: Introduction

NOTE: This article also applies to Honda Passport. For Passport coverage, refer to Rodeo, unless otherwise indicated.

NOTE: Some vehicles have adopted California emission standards. Use underhood emission application label to identify correct emission system applications. Use the following illustrations as a guide only.

This article contains example underhood views or schematics of vacuum hose routing. Use these vacuum diagrams as a guide during visual inspection in appropriate BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses which may cause driveability and/or computer-indicated malfunctions.

NOTE: Vacuum diagrams are not available for Amigo, Rodeo, Trooper and VehiCROSS.

Fig 1: Vacuum Diagram (Hombre 2.2L)

Courtesy of ISUZU MOTOR CO.

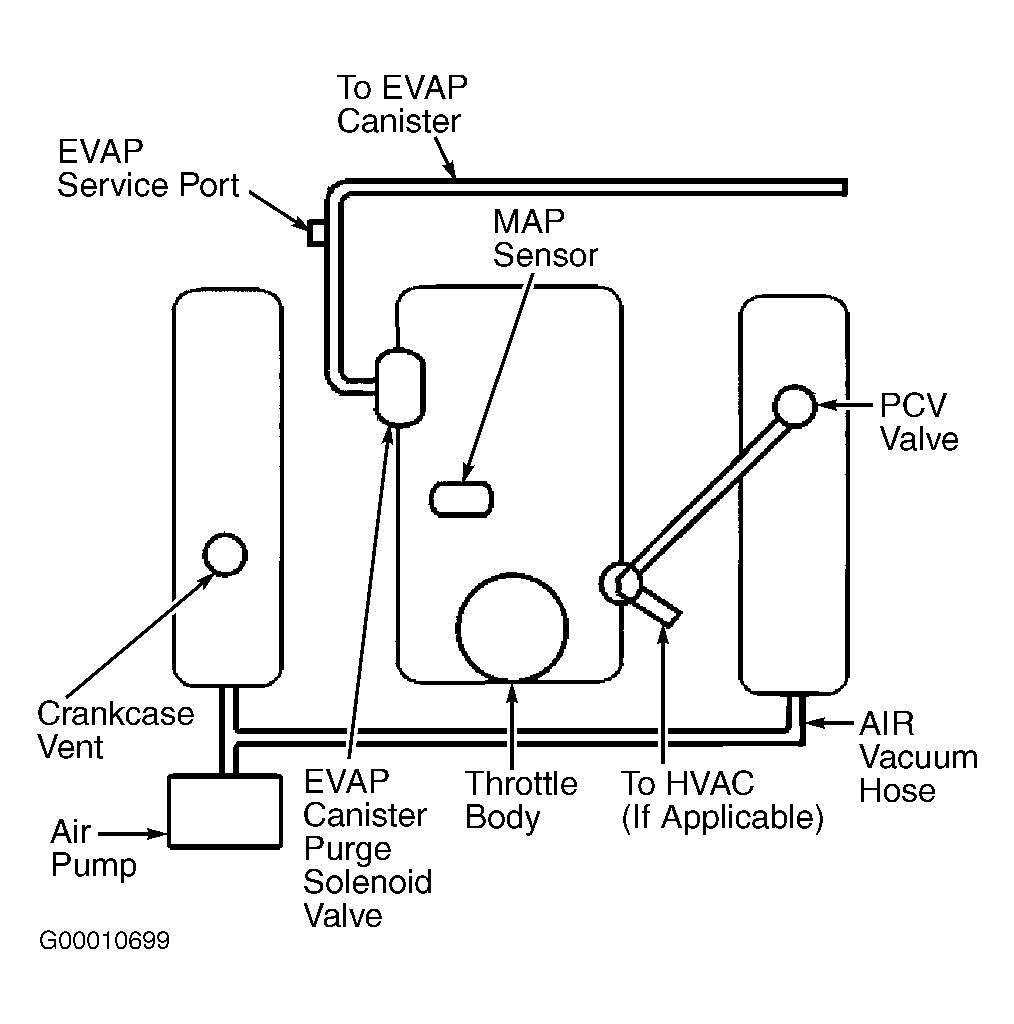

Fig 2: Vacuum Diagram (Hombre 4.3L)

Courtesy of ISUZU MOTOR CO.
