Front Section

Fig 1: Identifying Body Dimension Of Front Section (1 Of 3)
G02809068Courtesy of ISUZU MOTOR CO.

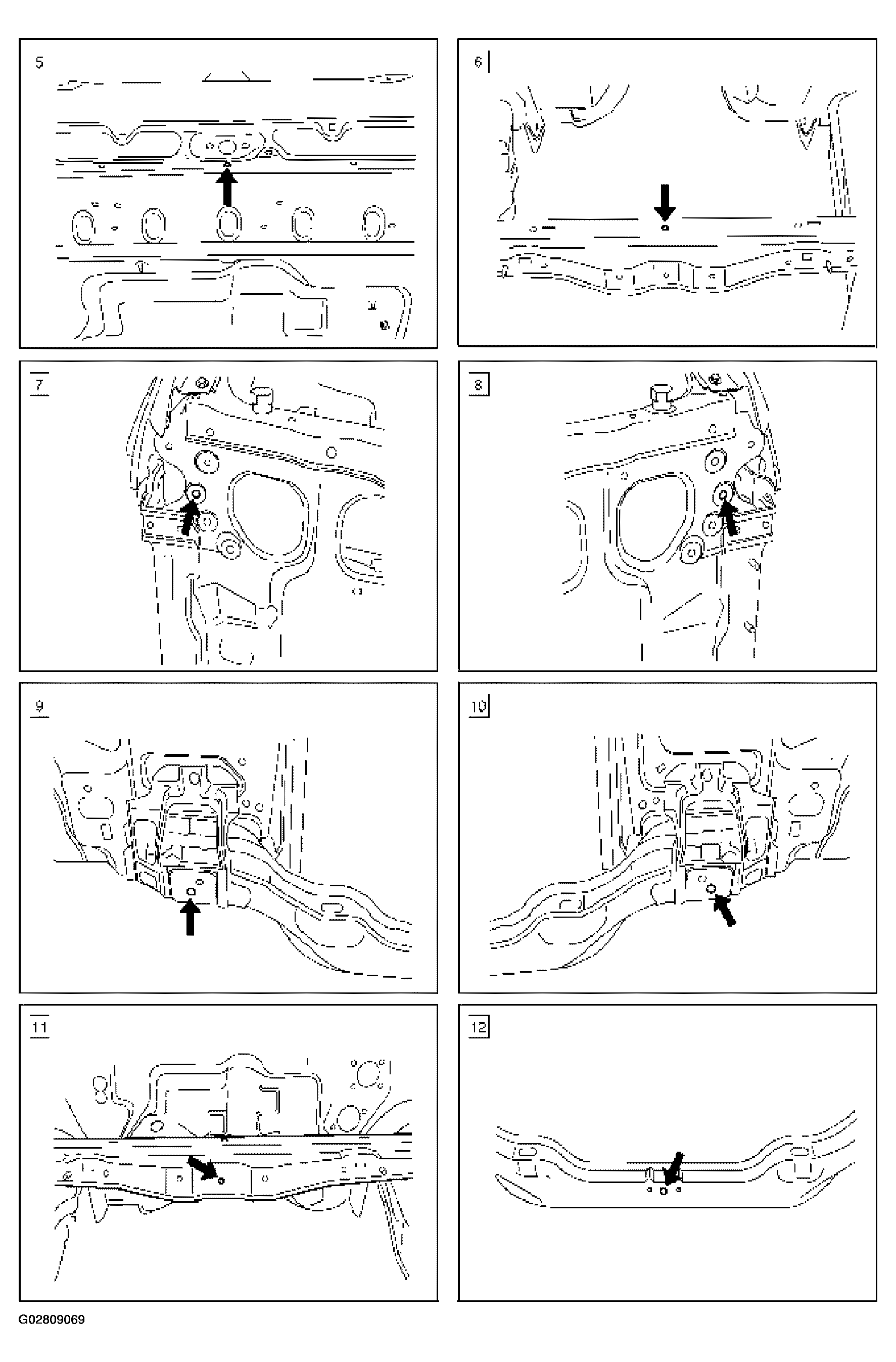

Fig 2: Identifying Body Dimension Of Front Section (2 Of 3)
G02809069Courtesy of ISUZU MOTOR CO.

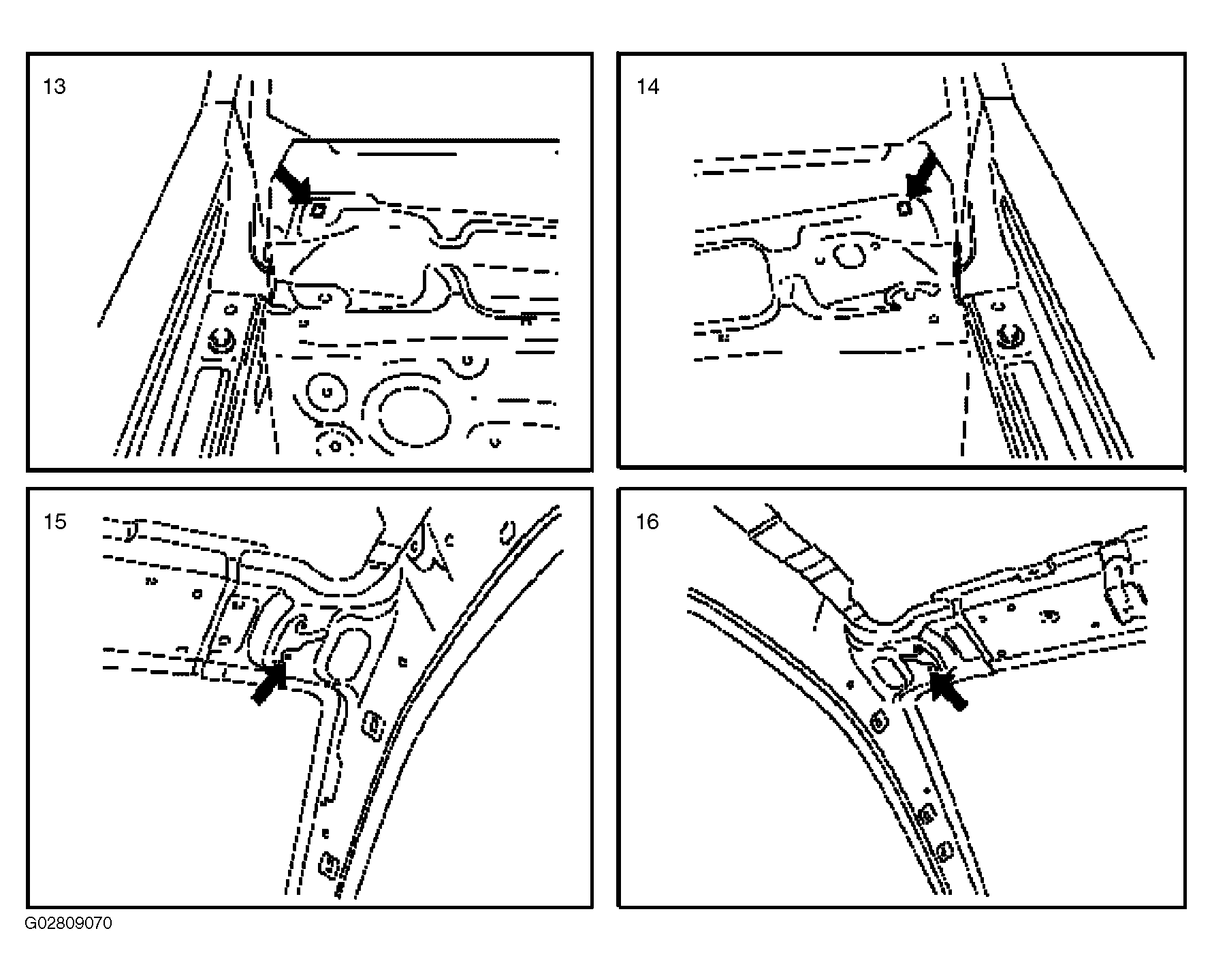

Fig 3: Identifying Body Dimension Of Front Section (3 Of 3)
G02809070Courtesy of ISUZU MOTOR CO.
