Repair and Diagnosis: Electrical: Horns: Entertainment: Audio: Removal

1. Disconnect the battery ground cable.
2. Remove the center cluster assembly (1).
   • Refer to INSTRUMENT PANEL ASSEMBLY .

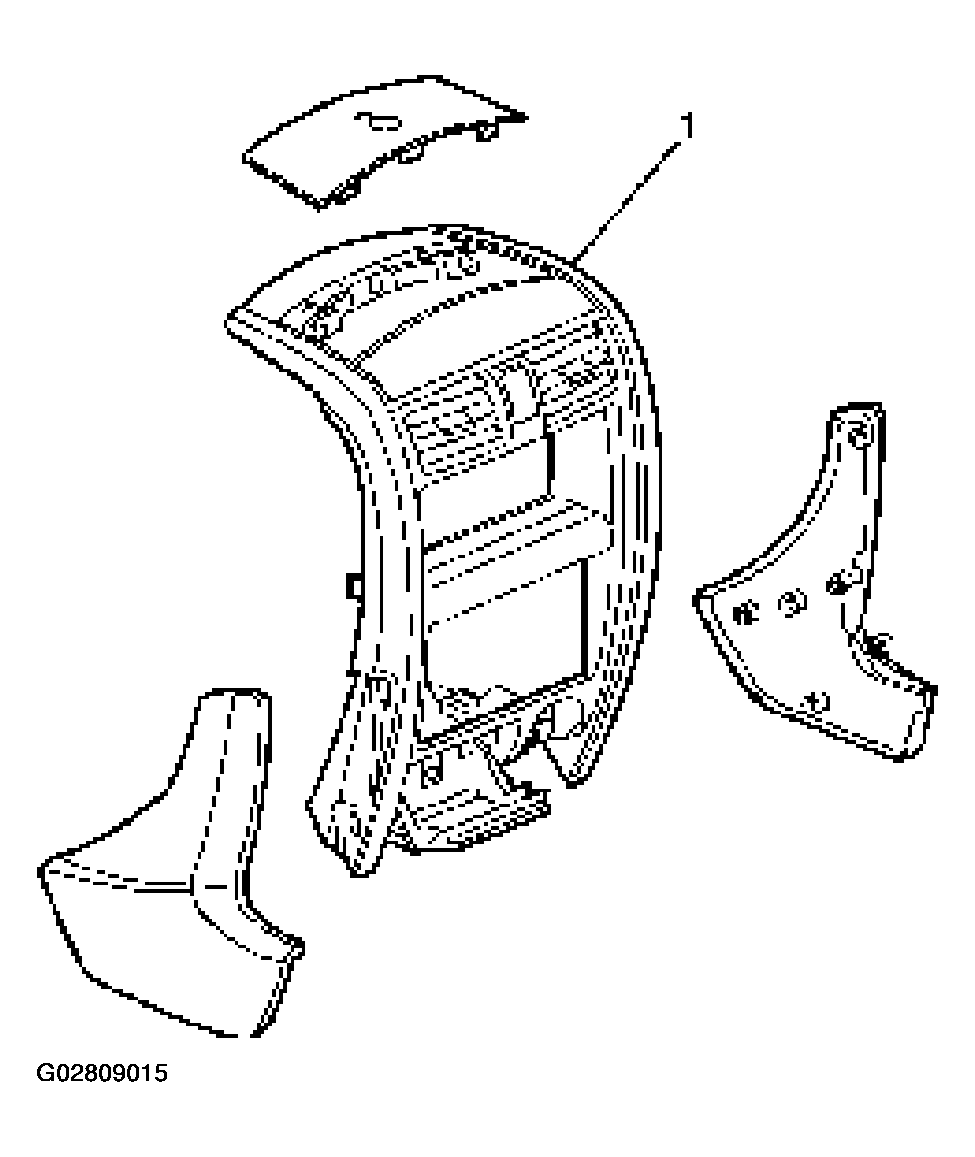

     Fig 1: Identifying Center Cluster Assembly

     Courtesy of ISUZU MOTOR CO.
3. Remove the audio (2).
   • Remove the two fixing screws (3).
   • Disconnect the connector and the antenna cable.

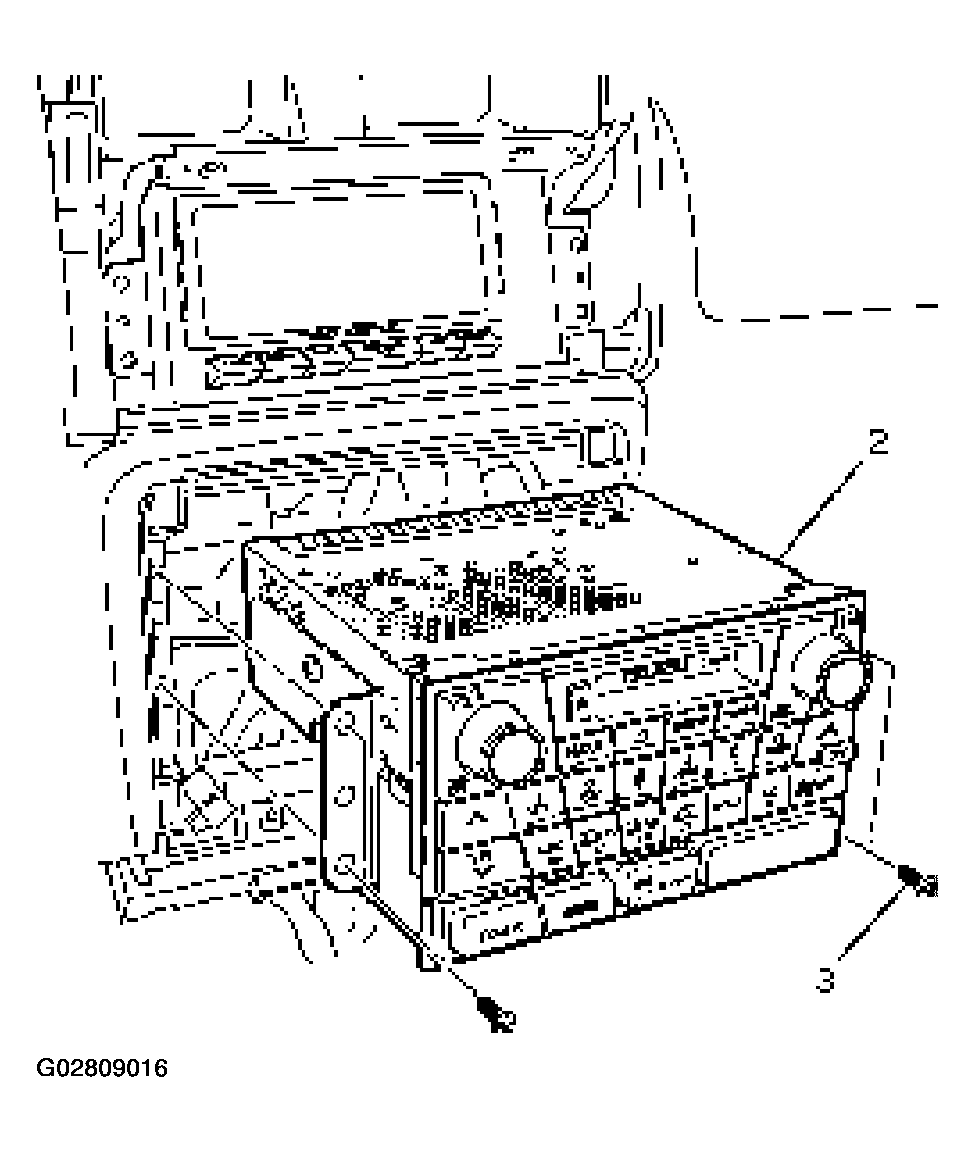

Fig 2: Removing Audio

Courtesy of ISUZU MOTOR CO.
