GPS Control Unit: Removal

  1. Disconnect the battery ground cable.
  2. Remove the cluster upper cover (3).
    • Disconnect the sun sensor connector and the GPS control unit connector.
  3. Remove the GPS control unit (2).
    • Remove the screws (1).

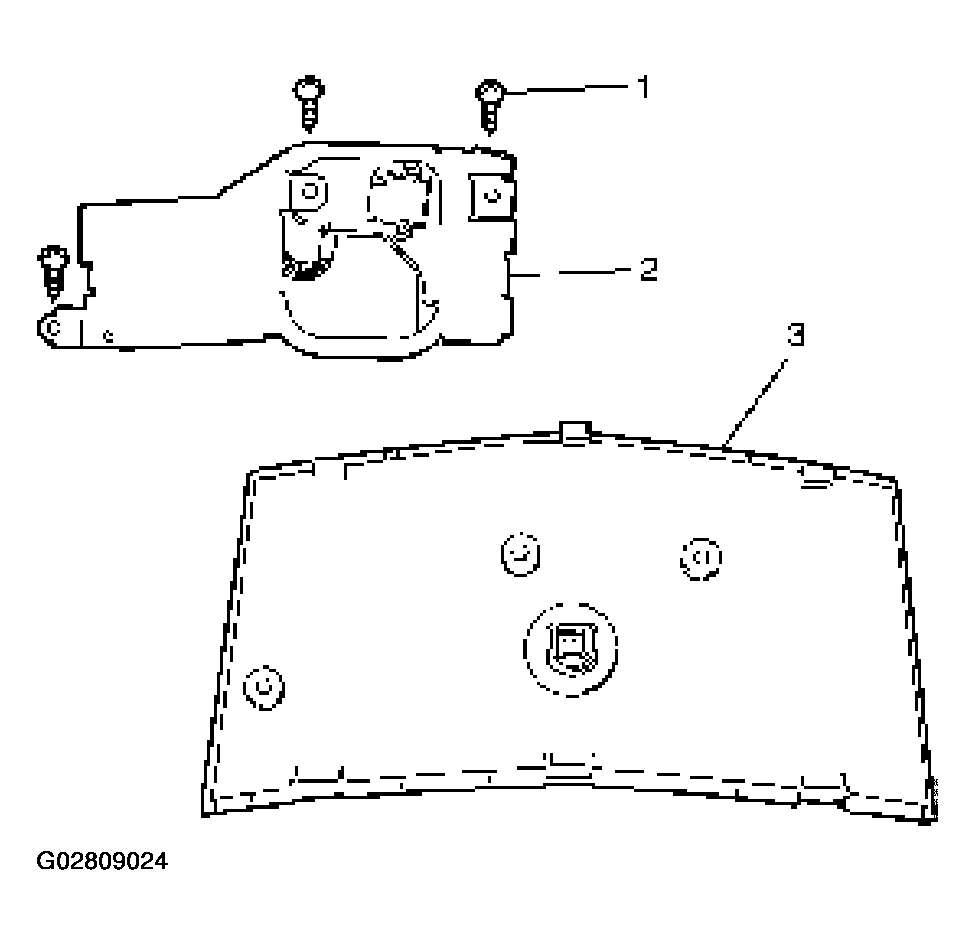

      Fig 1: Removing Screws Of GPS Control Unit
      G02809024Courtesy of ISUZU MOTOR CO.
