Overrunning Clutch

  1. Visual check for excessive wear or damage.
  2. Test the pinion rotation, it must rotate smoothly when rotated clockwise and it shouldn't rotate when turned counterclockwise. See  2.

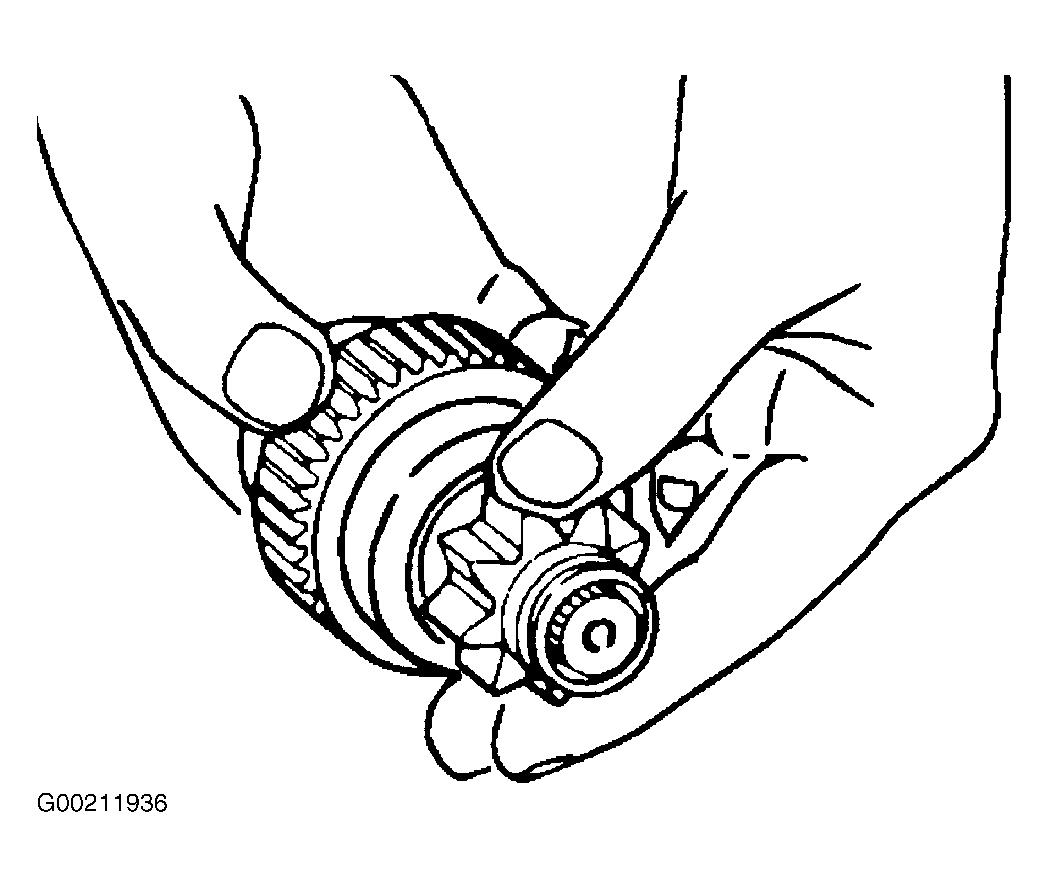

    Fig 1: Testing Overrunning Clutch
    G00211936Courtesy of AMERICAN HONDA MOTOR CO., INC.
