Torque Specifications

Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt cover, Oil pump, Oil gallery, Oil strainer

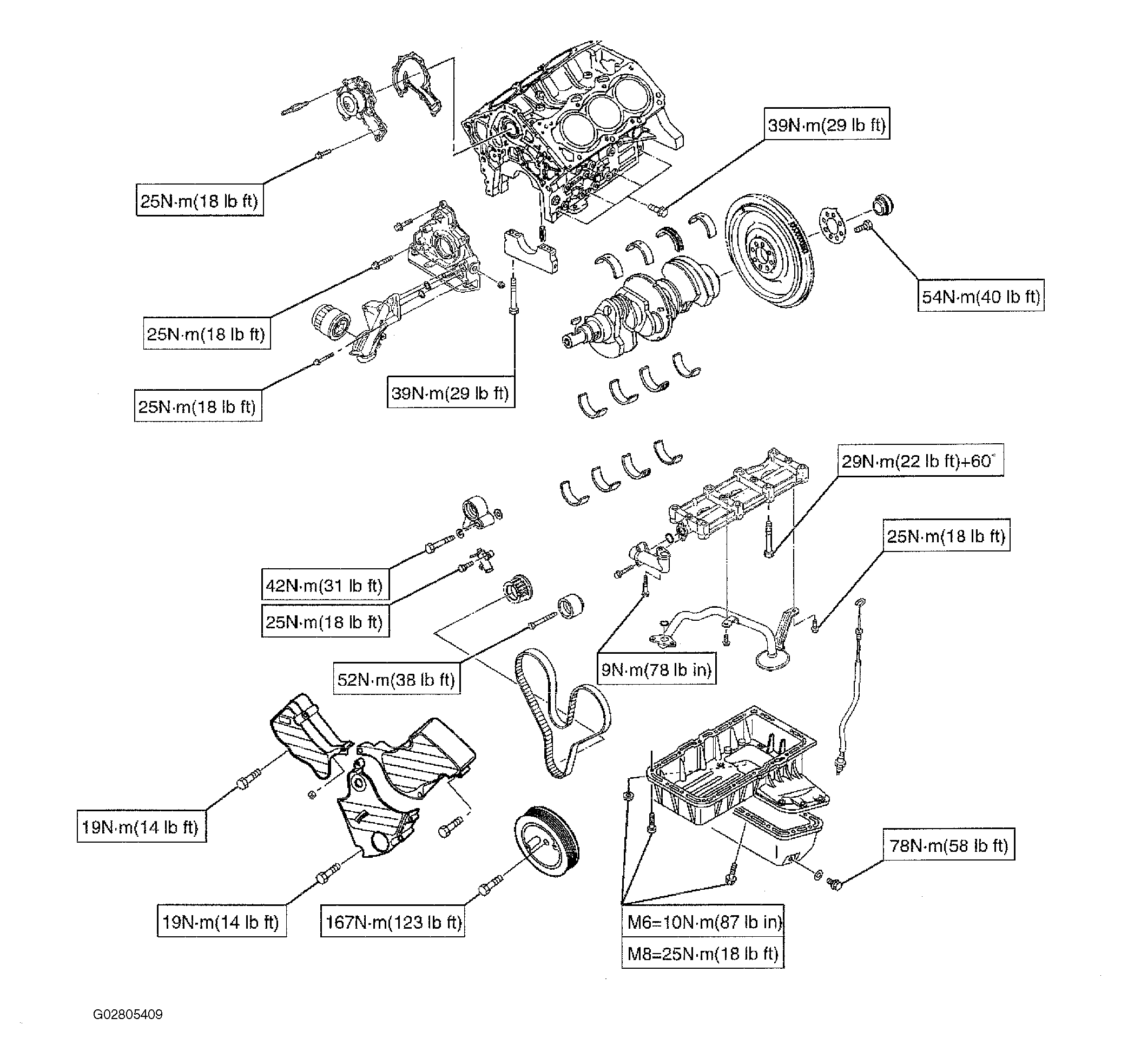

Fig 1: Exploded View Of Engine Assembly
G02805409Courtesy of ISUZU MOTOR CO.
