Air Cleaner Element: Installation

  1. Install air cleaner element (5).
  2. Attach the mass air cleaner duct cover to the body completely, then clamp it with the clip (4).
  3. Install air flow sensor (3).
  4. Install air temperature sensor (2).
  5. Install positive crankcase ventilation hose connector (1).

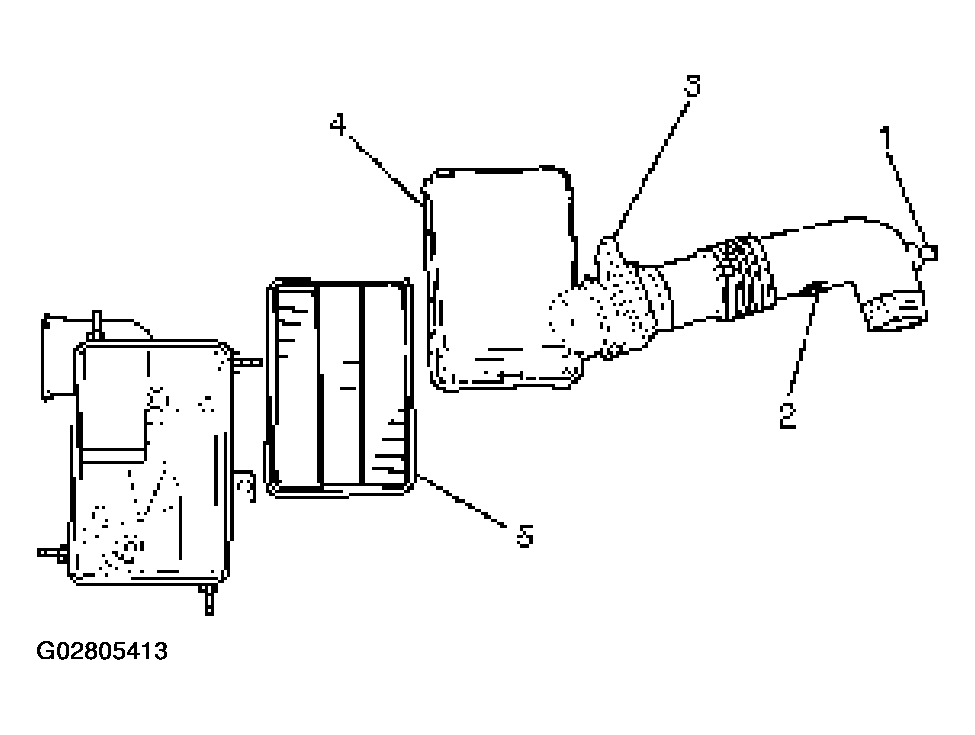

    Fig 1: Installing Air Cleaner Element
    G02805413Courtesy of ISUZU MOTOR CO.
