Isuzu
>>
2002
>>
Axiom Base, RWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power-Assisted Steering System
>>
Main Data and Specifications
>>
Torque Specifications
Torque Specifications

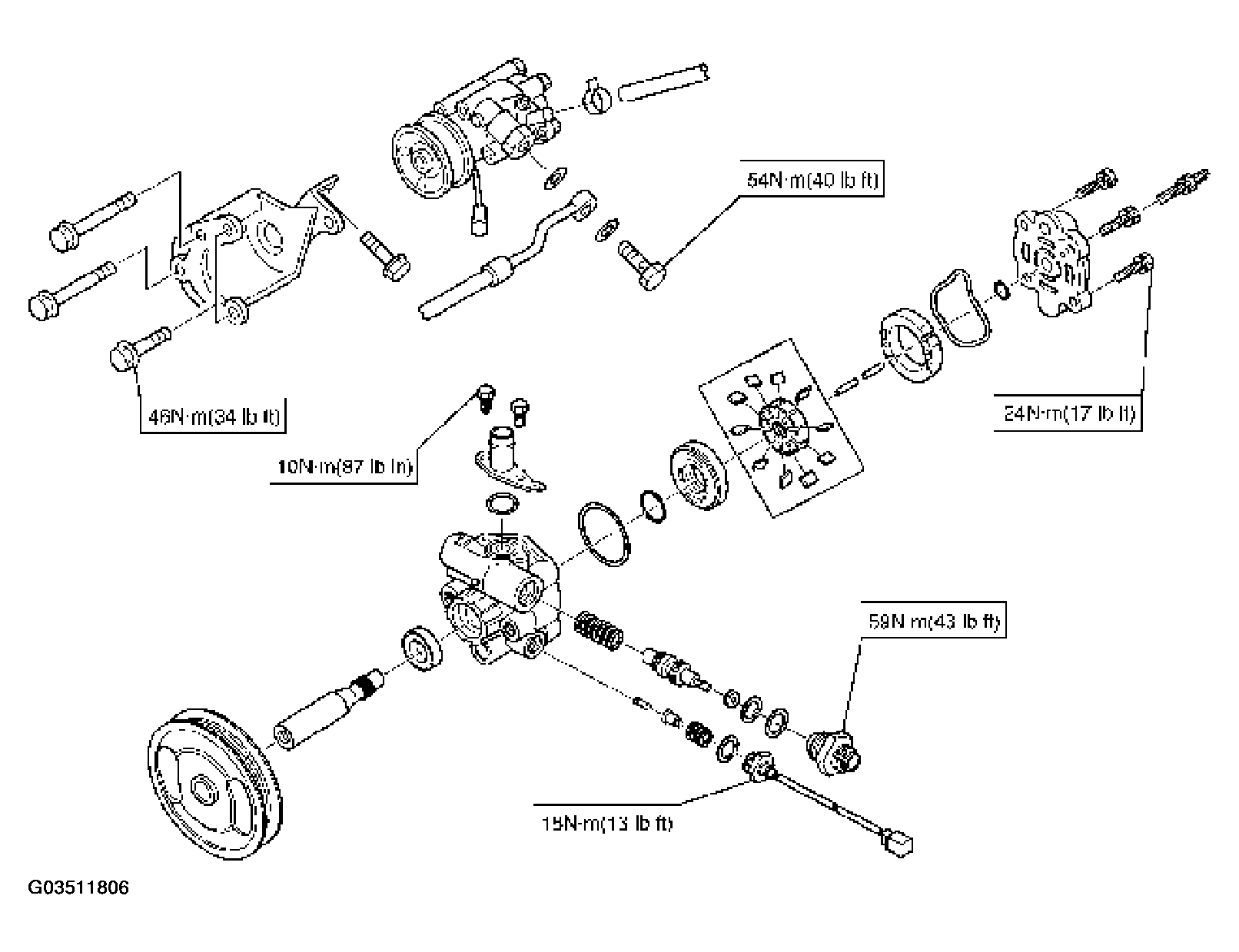

Fig 1: Torque Specifications Power Steering Unit Components
Courtesy of ISUZU MOTOR CO.

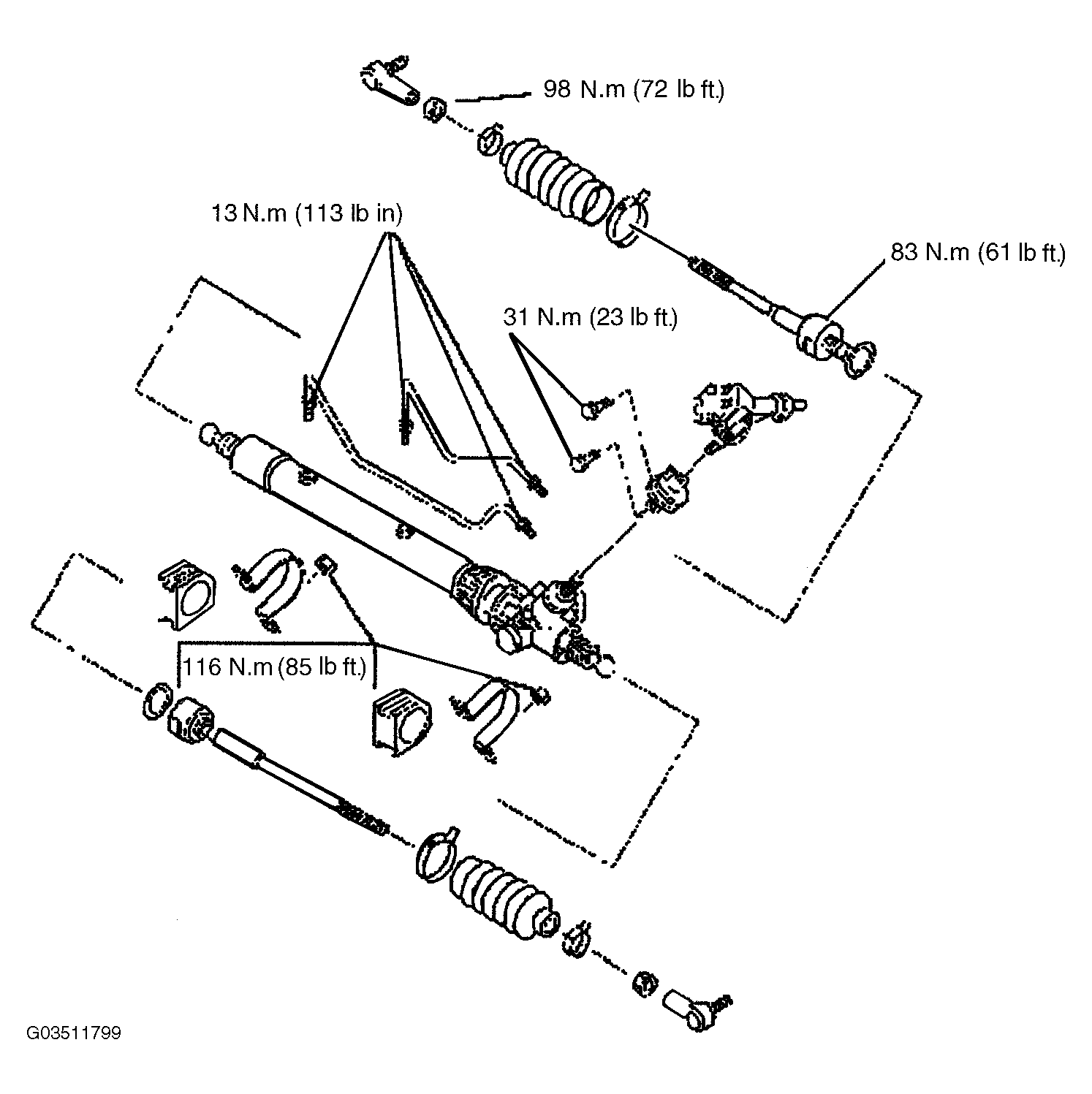

Fig 1: Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
