Power Steering Unit: Removal: Notes

Remove the stone guard.
Remove the transfer gear assembly and universal joint assembly.
Make a setting mark across the coupling flange and transfer gear assembly to ensure reassembly of the parts in the original position.
Drain power steering fluid.
Remove the tie rod end assembly from knuckle.
Use tie rod end remover J -29107.

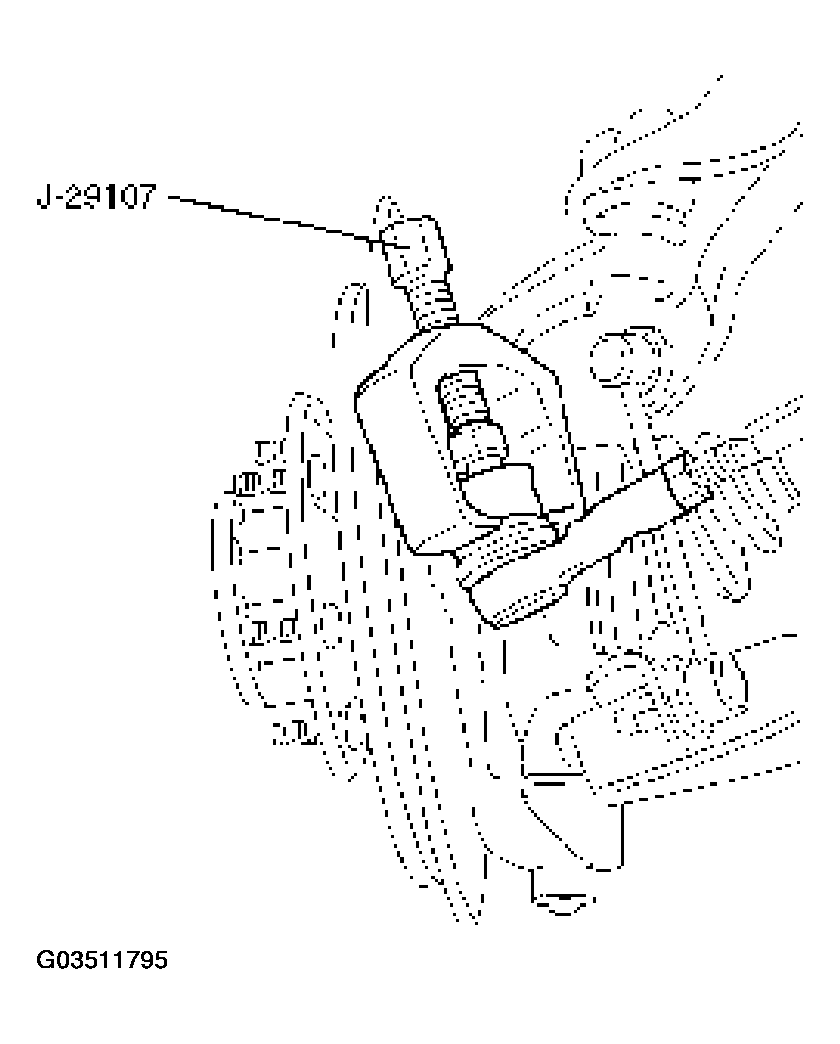

Fig 1: Removing Tie Rod End Assembly Using Tie Rod End Remover
Courtesy of ISUZU MOTOR CO.
Disconnect the feed line and return line from steering unit.
Remove the clips on the crossmember and frame.

Wire the power steering line to frame.

NOTE: Take care to prevent foreign matter from entry when disconnect the power steering line.

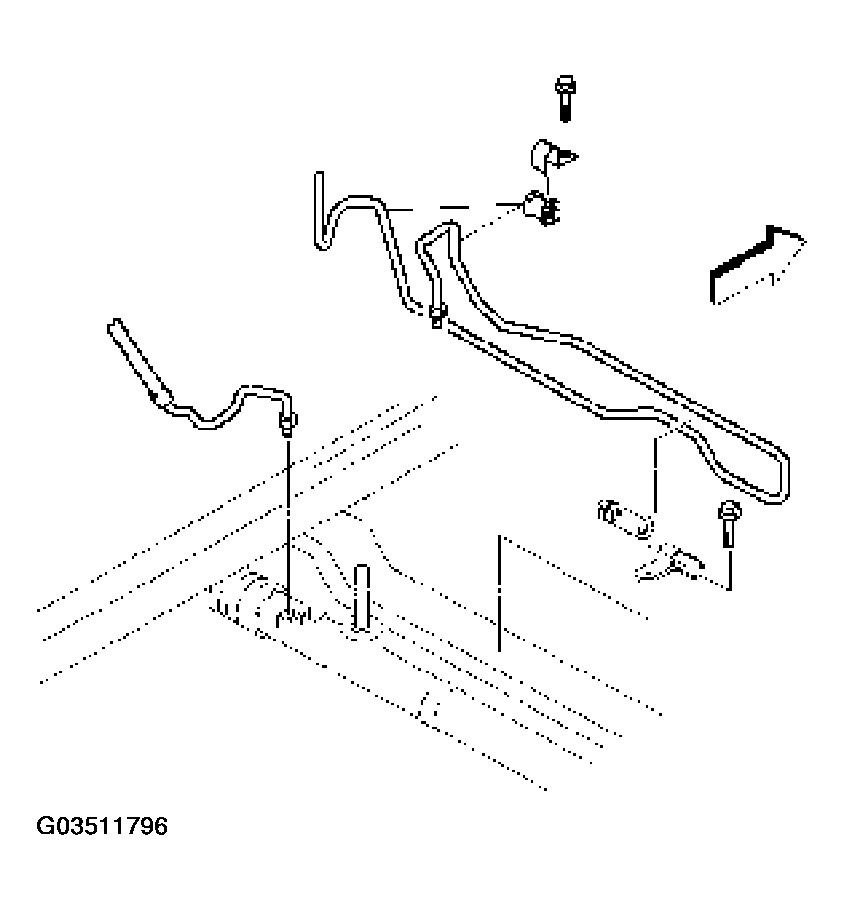

Fig 2: Disconnecting Feed Line & Return Line From Steering Unit
Courtesy of ISUZU MOTOR CO.
