Column Capsule

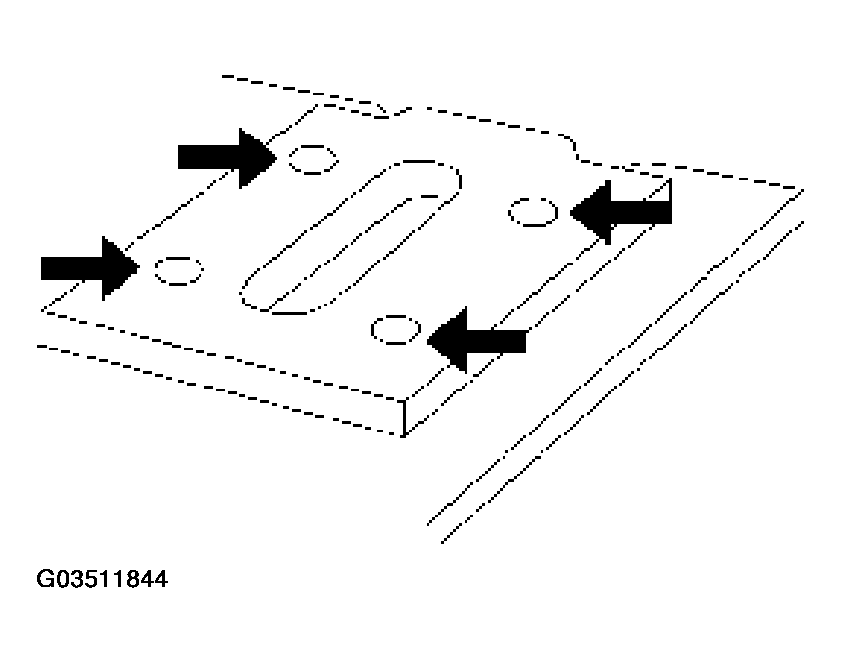

Check capsules on steering column bracket assembly; all must be securely seated in bracket slots and checked for any loose conditions when pushed or pulled by hand.

Fig 1: Checking Capsules On Steering Column Bracket Assembly

Courtesy of ISUZU MOTOR CO.

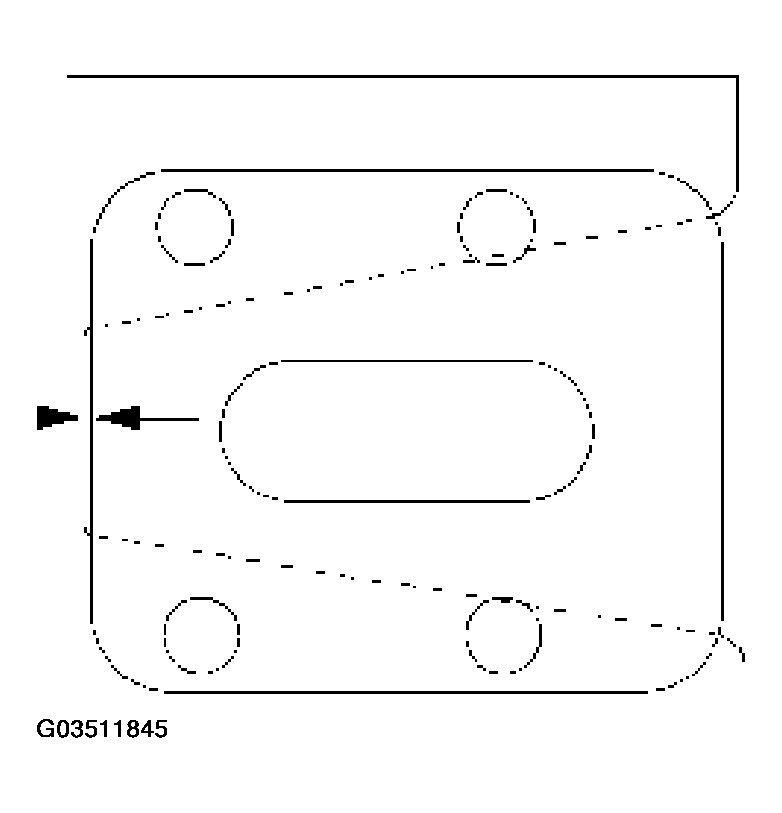

Check clearance between capsule and bracket. If must be within 1mm (0.039 in).

Fig 2: Checking Clearance Between Capsule & Bracket

Courtesy of ISUZU MOTOR CO.
