Automatic Transmission: Construction

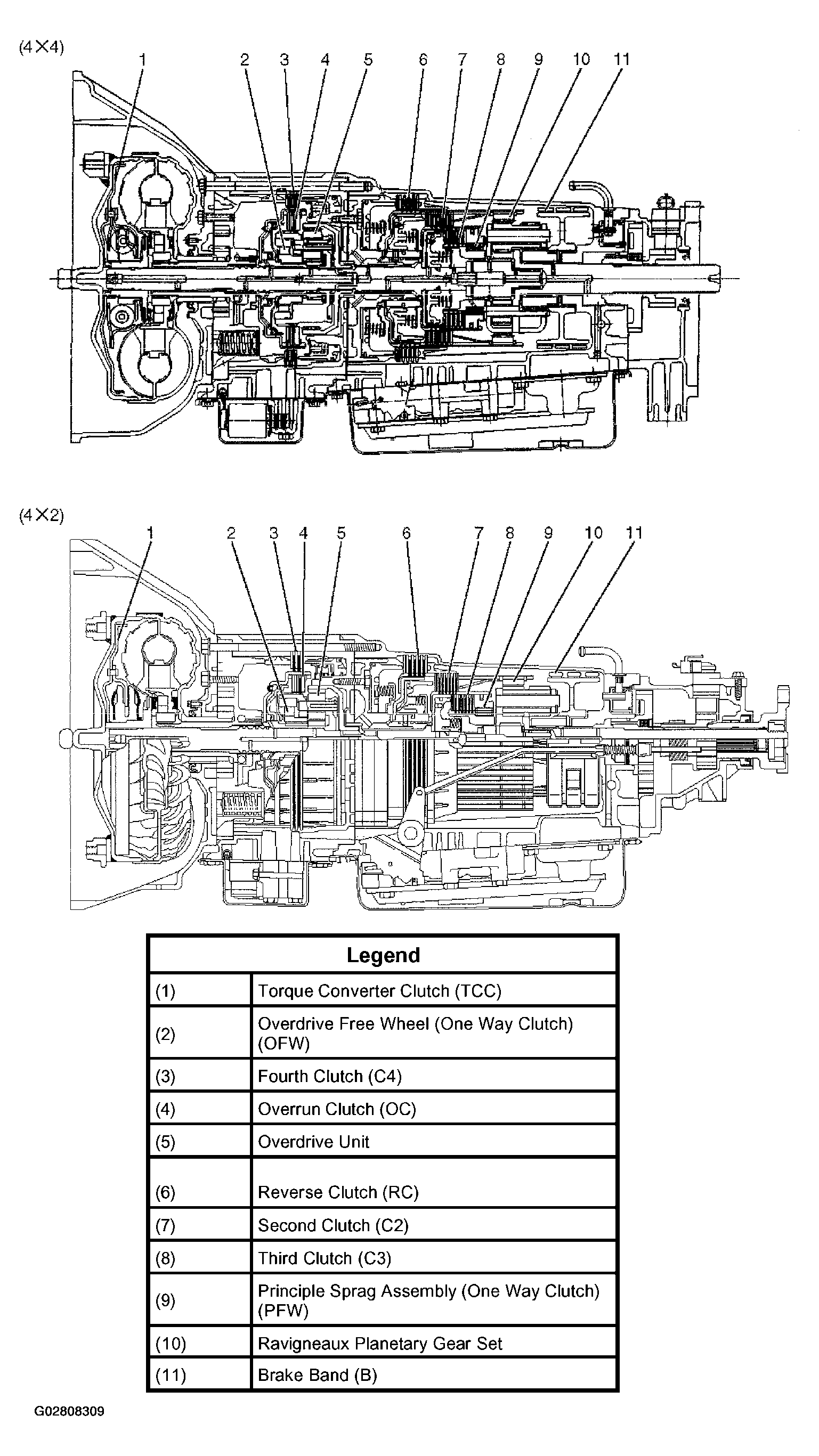

Fig 1: Sectional View Of Automatic Transmission (4L30-E)

G02808309

Courtesy of ISUZU MOTOR CO.
