Automatic Transmission
>>
Range Reference Chart
Range Reference Chart

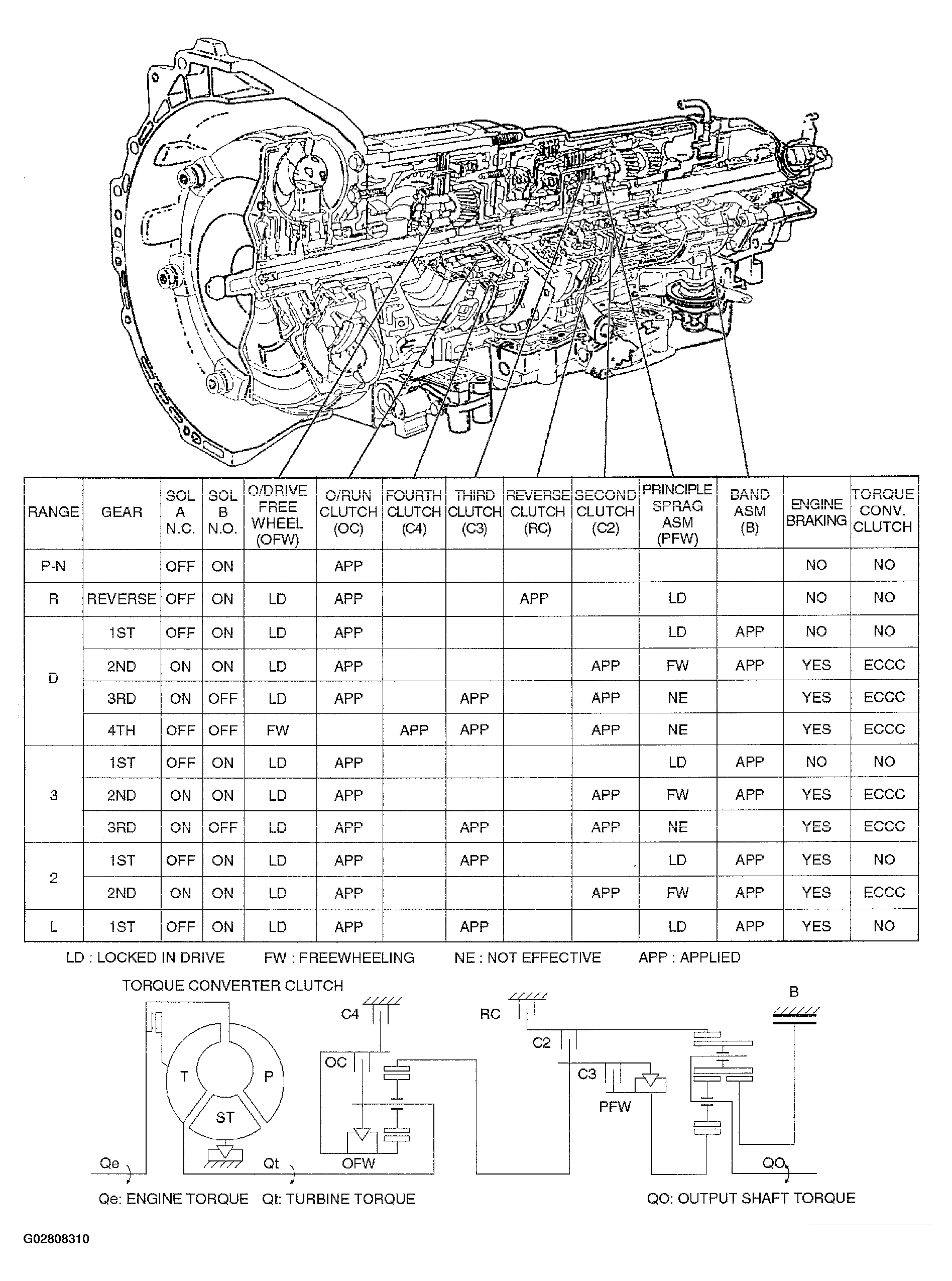

Fig 1: Range Reference Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
