Home >> Isuzu >> 2002 >> Axiom Base, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Selector Lever >> Inspection >> Notes

Selector Lever: Inspection: Notes

  1. Make sure that when the selector lever is shifted from "P" to "L", a "clicking" can be felt at each shift position. Make sure that the gear corresponds to that of the position plate indicator.
  2. Check to see if the selector lever can be shifted as shown in illustration.

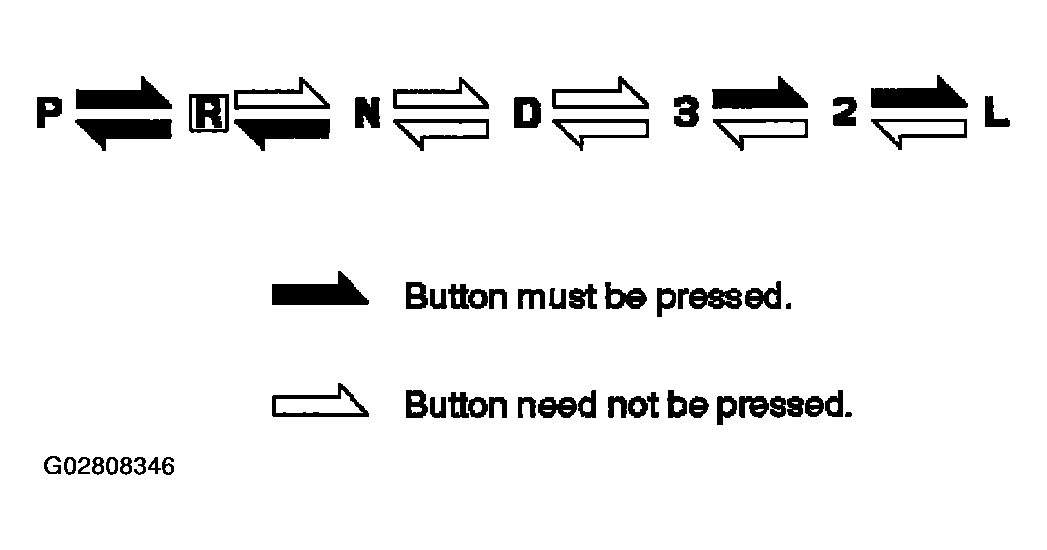

Fig 1: Identifying Selector Lever Shifting
G02808346Courtesy of ISUZU MOTOR CO.
