Selector Lever: Inspection: Removal

Disconnect battery ground cable.
Set ignition Key in "LOCK" position and selector lever in "P" position.
Remove knee pads (1), cluster upper cover (2) and center cluster assembly (3).

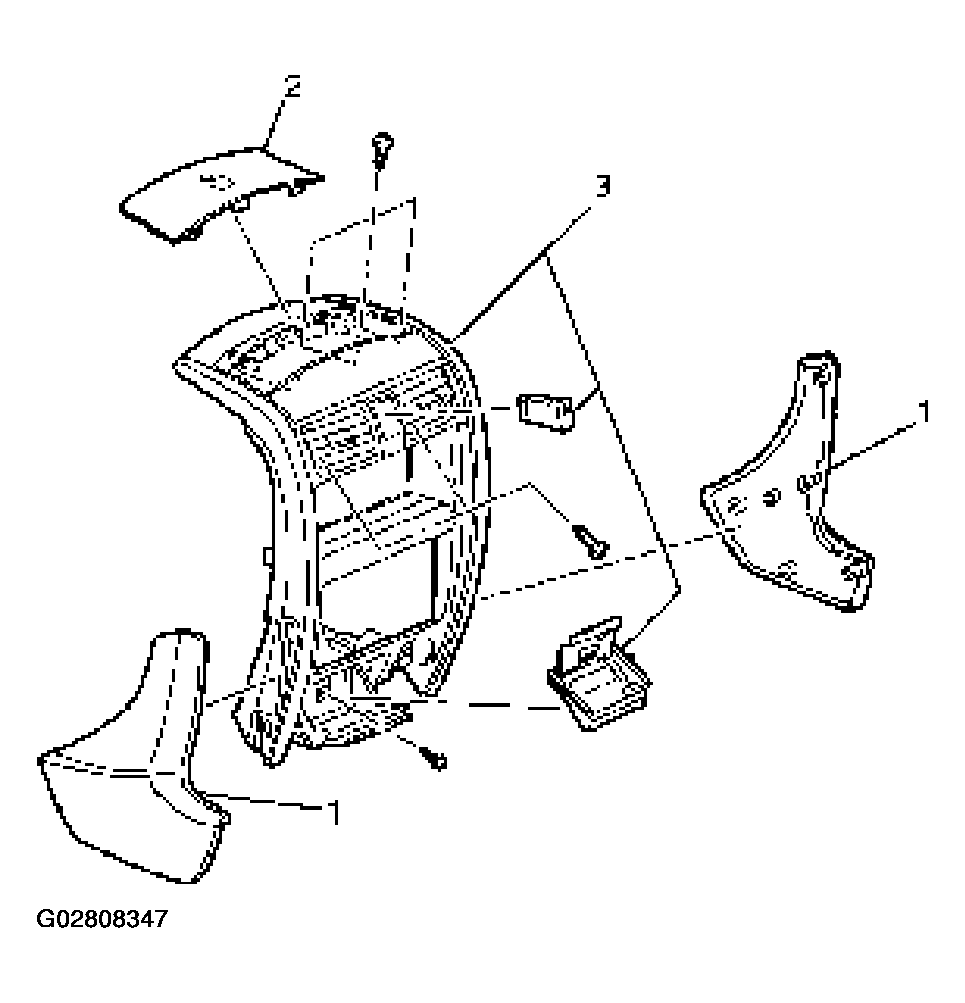

Fig 1: Removing Knee Pads, Cluster Upper Cover & Center Cluster Assembly
Courtesy of ISUZU MOTOR CO.
Remove rear console.

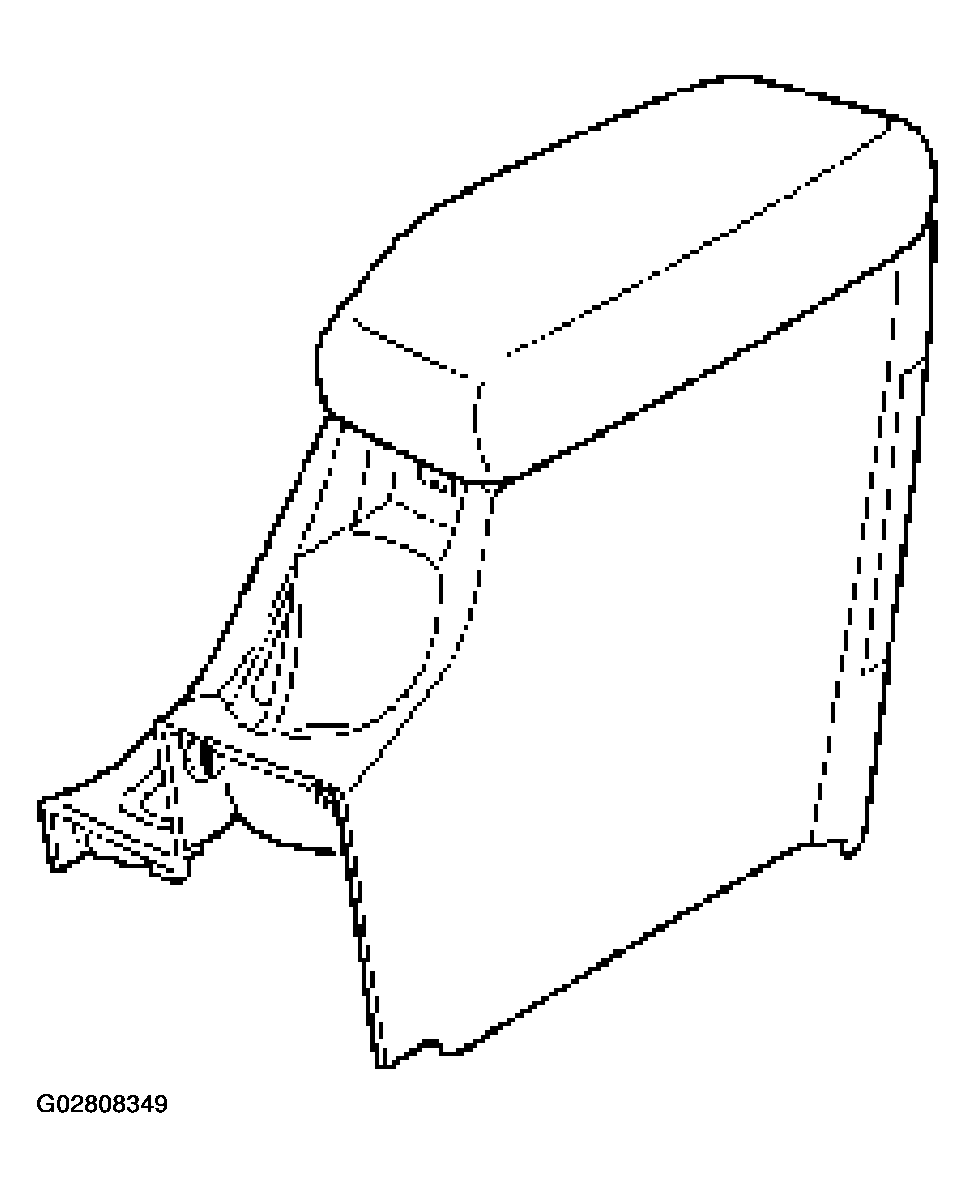

Fig 2: Removing Rear Console
Courtesy of ISUZU MOTOR CO.
Remove front console.

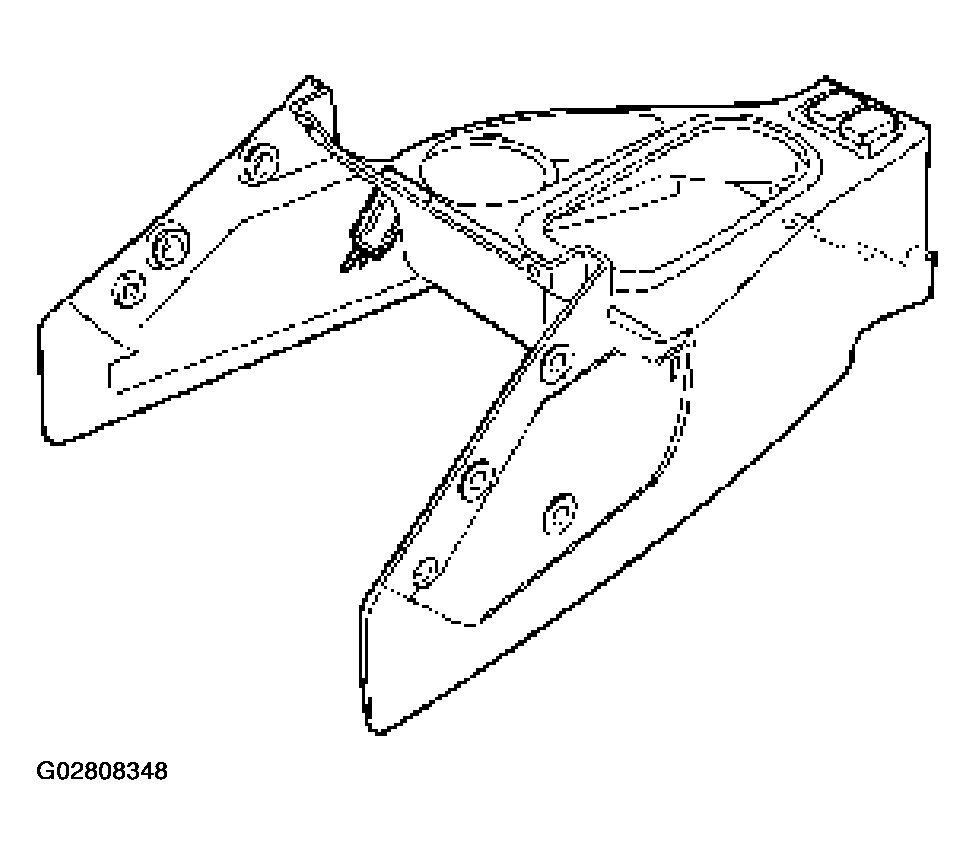

Fig 3: Removing Front Console
Courtesy of ISUZU MOTOR CO.
Remove selector lever knob and cover assembly.

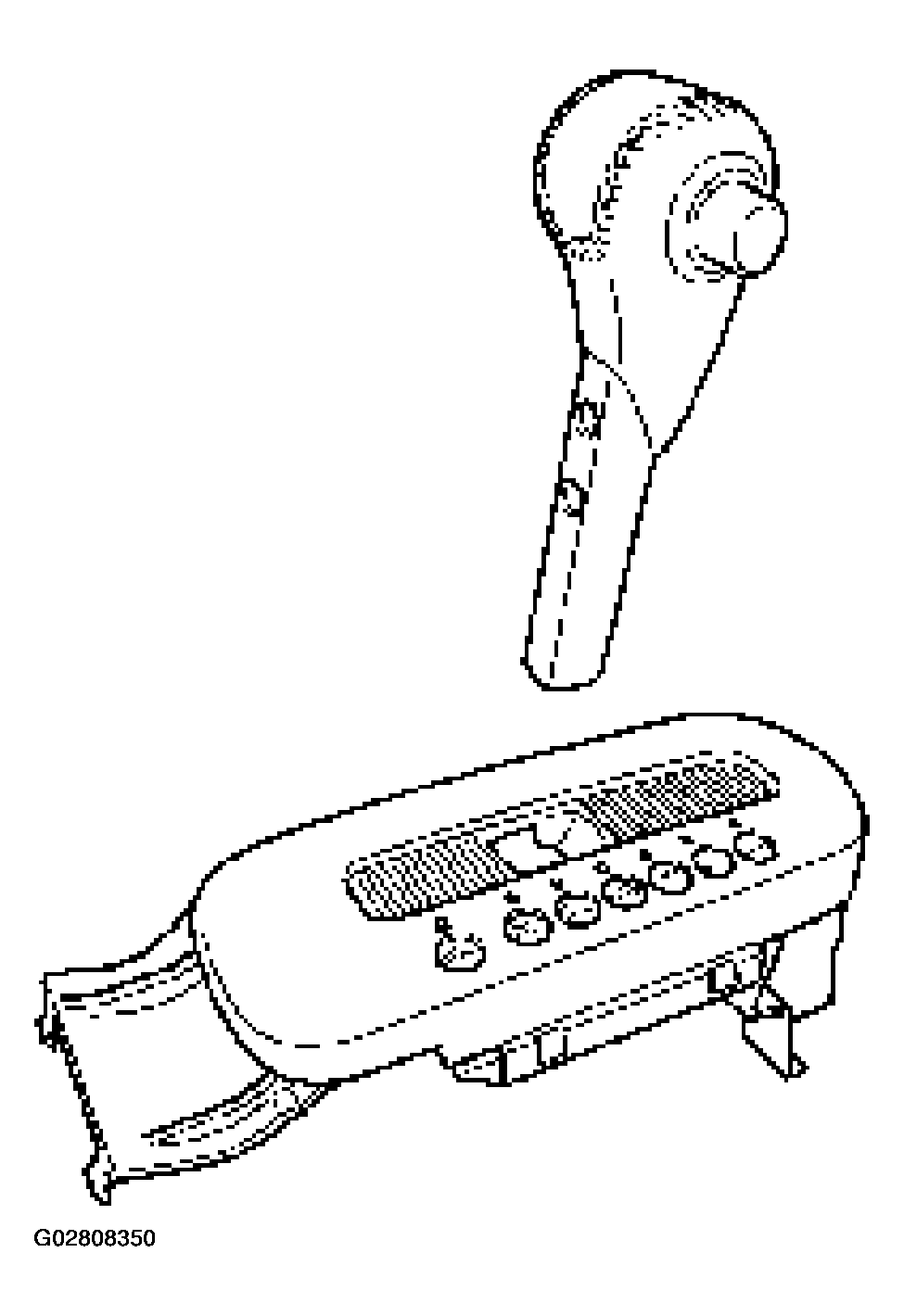

Fig 4: Removing Selector Lever Knob & Cover Assembly
Courtesy of ISUZU MOTOR CO.
Disconnect select cable.
- Refer to SELECT CABLE .
Disconnect shift lock cable.
- Refer to SHIFT LOCK CABLE .
Disconnect harness connector.
Remove selector lever subassembly.

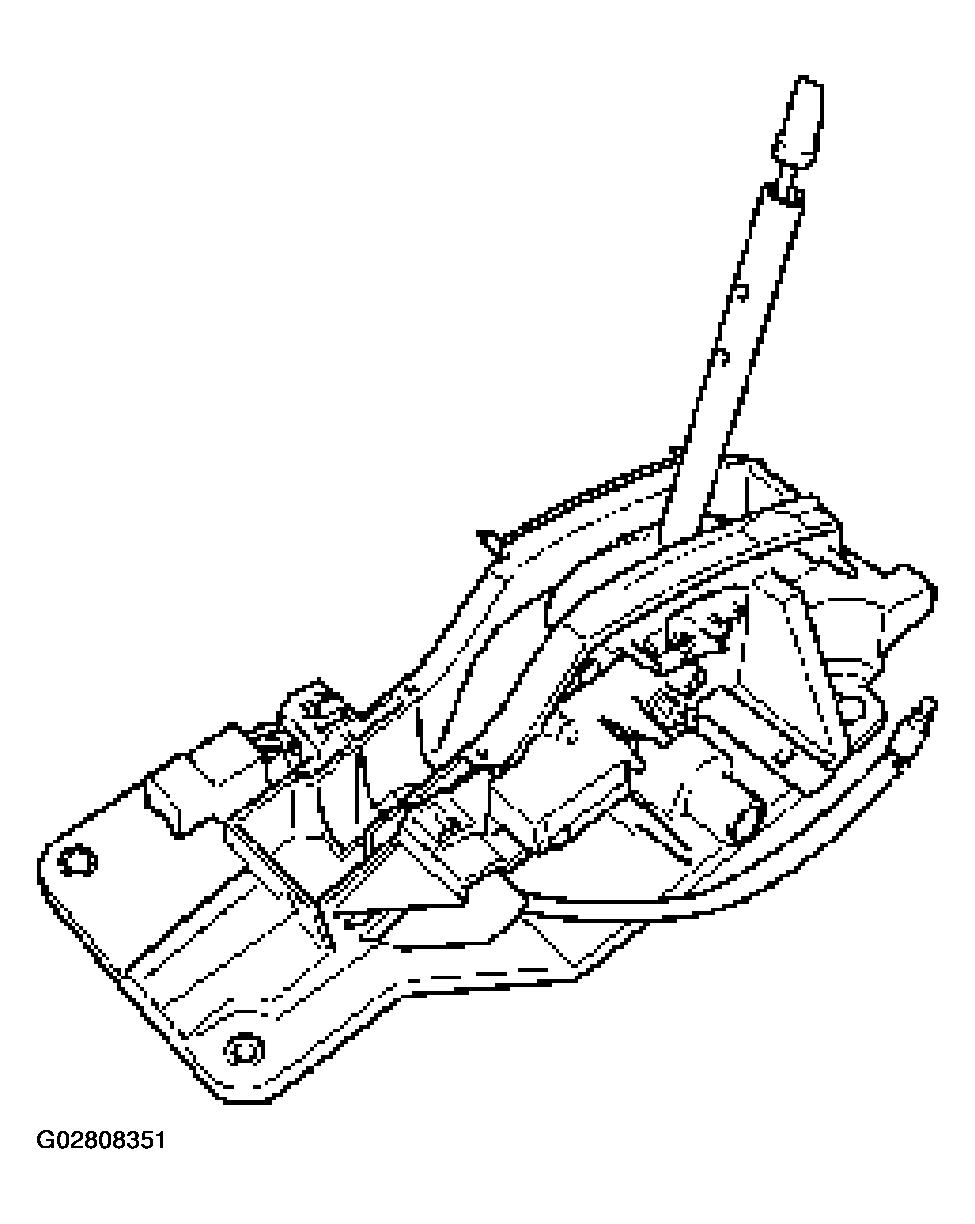

Fig 5: Removing Selector Lever Subassembly

Courtesy of ISUZU MOTOR CO.
