Shift Lock Cable: Removal

  1. Set ignition key in "LOCK" position and selector lever in "P" position.
  2. Remove knee pads, cluster upper cover, center cluster assembly, rear console, and front console.
  3. Disconnect inner cable from selector lever assembly then push claw and disconnect cable assembly.

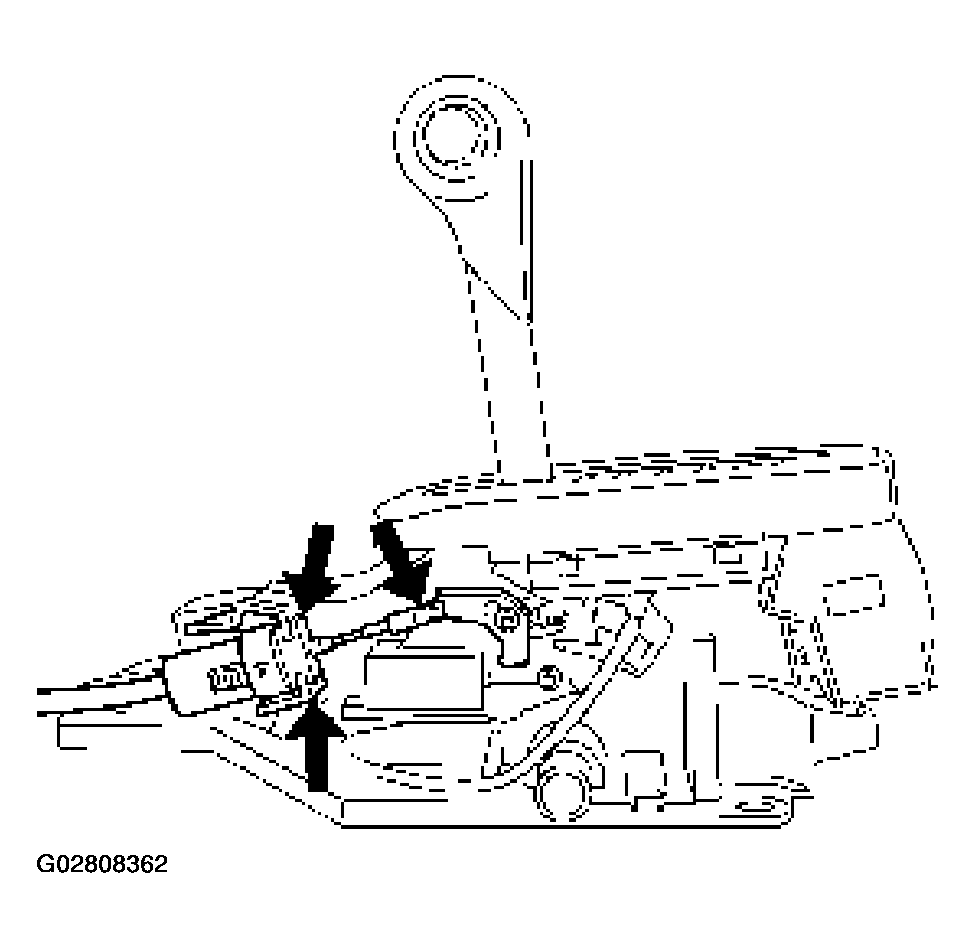

    Fig 1: Disconnecting Inner Cable From Selector Lever Assembly
    G02808362Courtesy of ISUZU MOTOR CO.
  4. Disconnect lock adjust.
    Fig 2: Disconnecting Lock Adjust
    G02808363Courtesy of ISUZU MOTOR CO.
  5. Remove instrument panel lower cover and steering column cover.
  6. Remove spring pin and disconnect inner cable.
    • Disconnect outer cable from bracket.

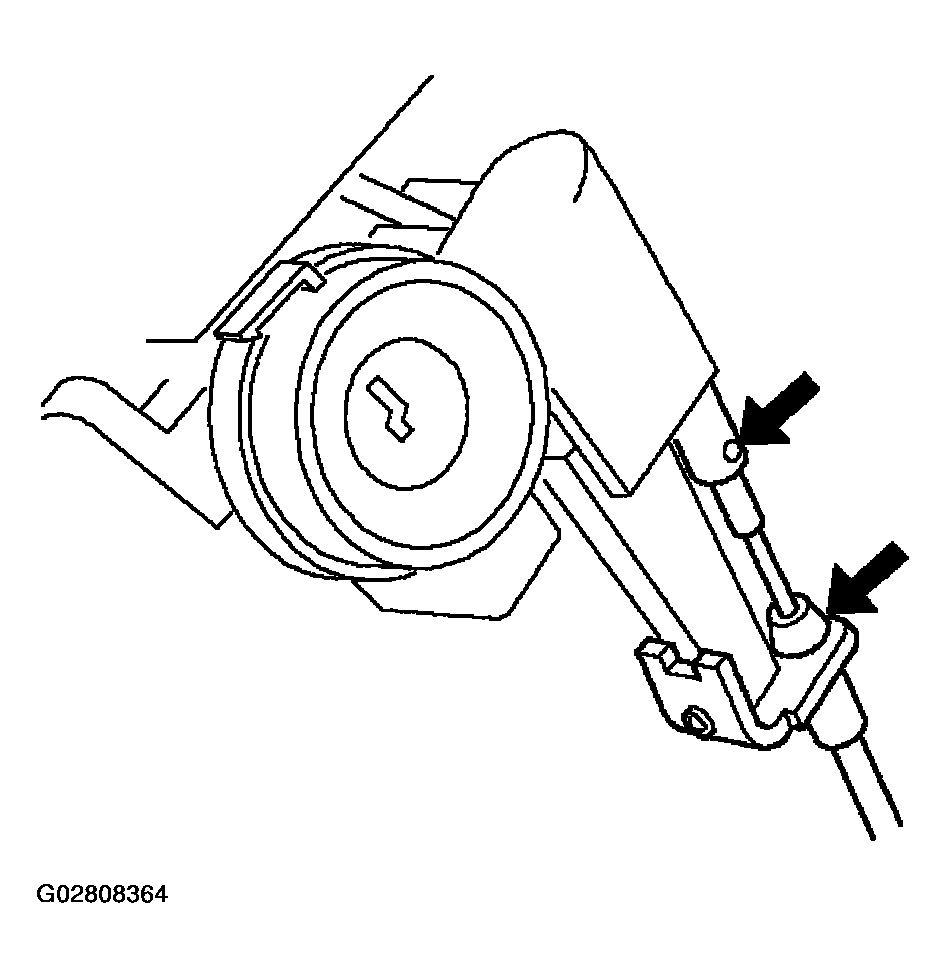

      Fig 3: Disconnecting Outer Cable From Bracket
      G02808364Courtesy of ISUZU MOTOR CO.
