Gear Shift Control

  1. Shift Pattern
  2. Gear Position
  3. Selecting Gear Position

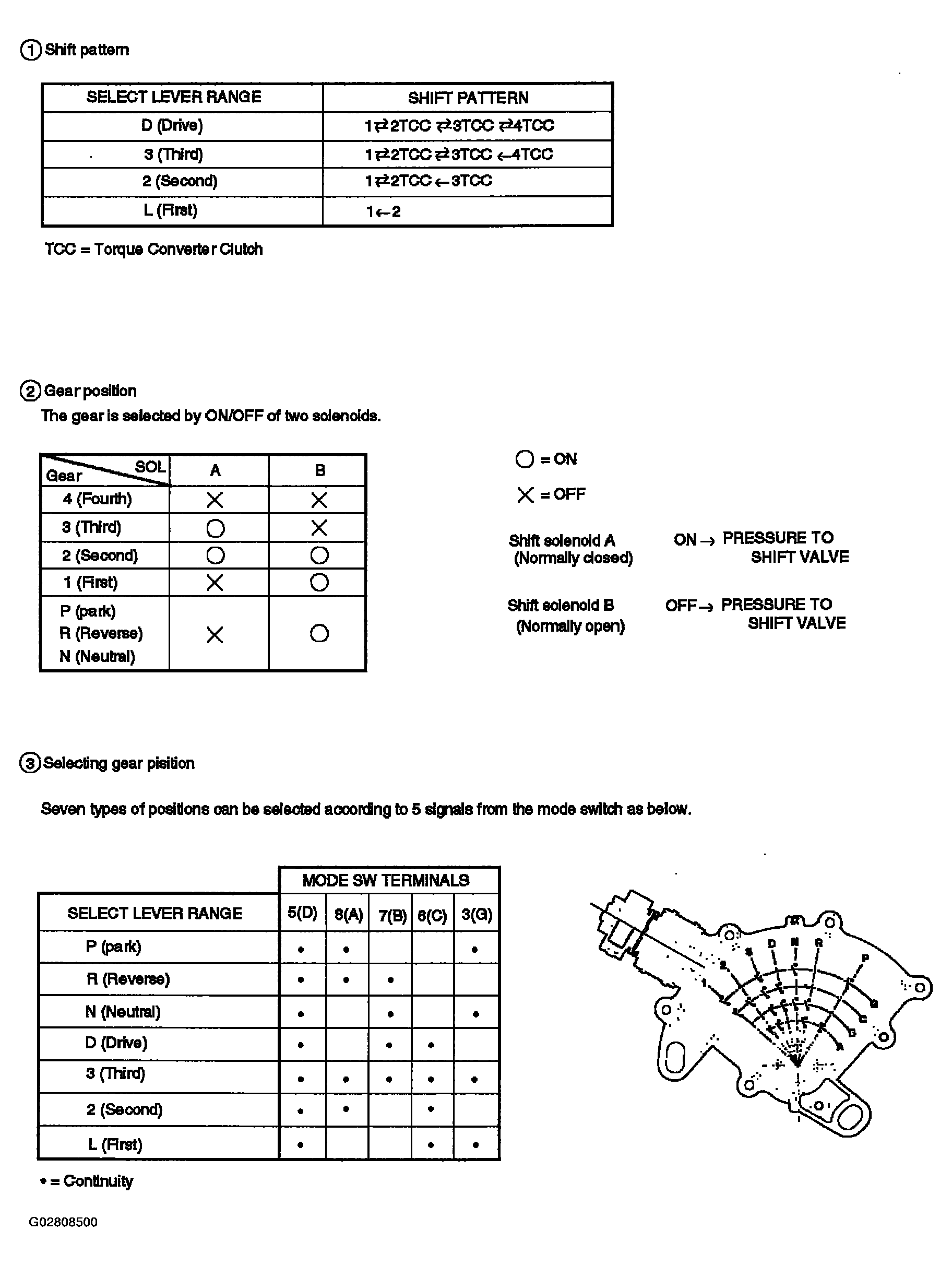

    4. Fig 1: Identifying Shift Pattern, Gear Position & Selecting Gear Position Charts
    G02808500Courtesy of ISUZU MOTOR CO.
