Harness Connector Faces
Harness Connector Faces

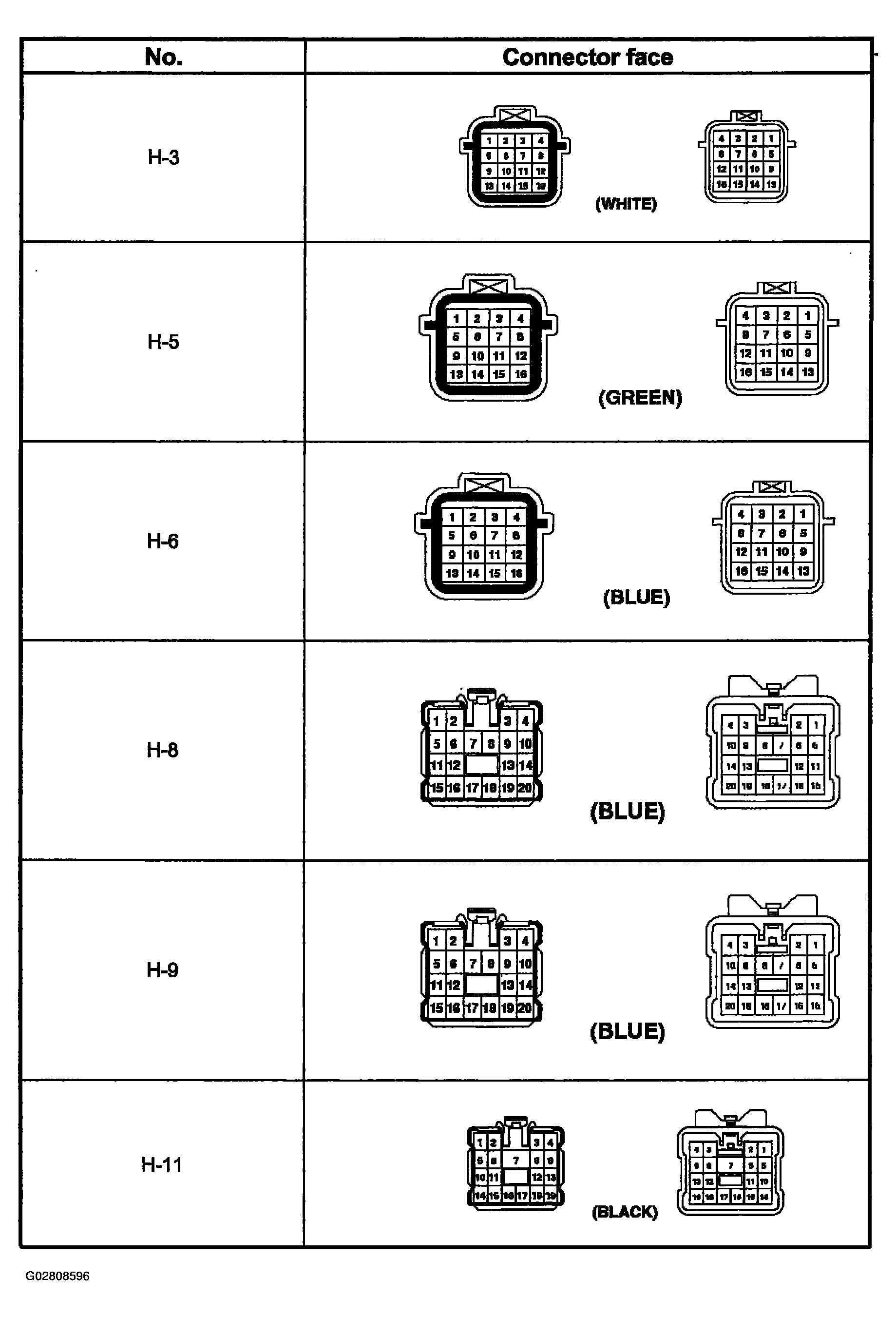

Fig 1: Identifying Harness Connector Faces And Terminals (1 Of 5)
Courtesy of ISUZU MOTOR CO.

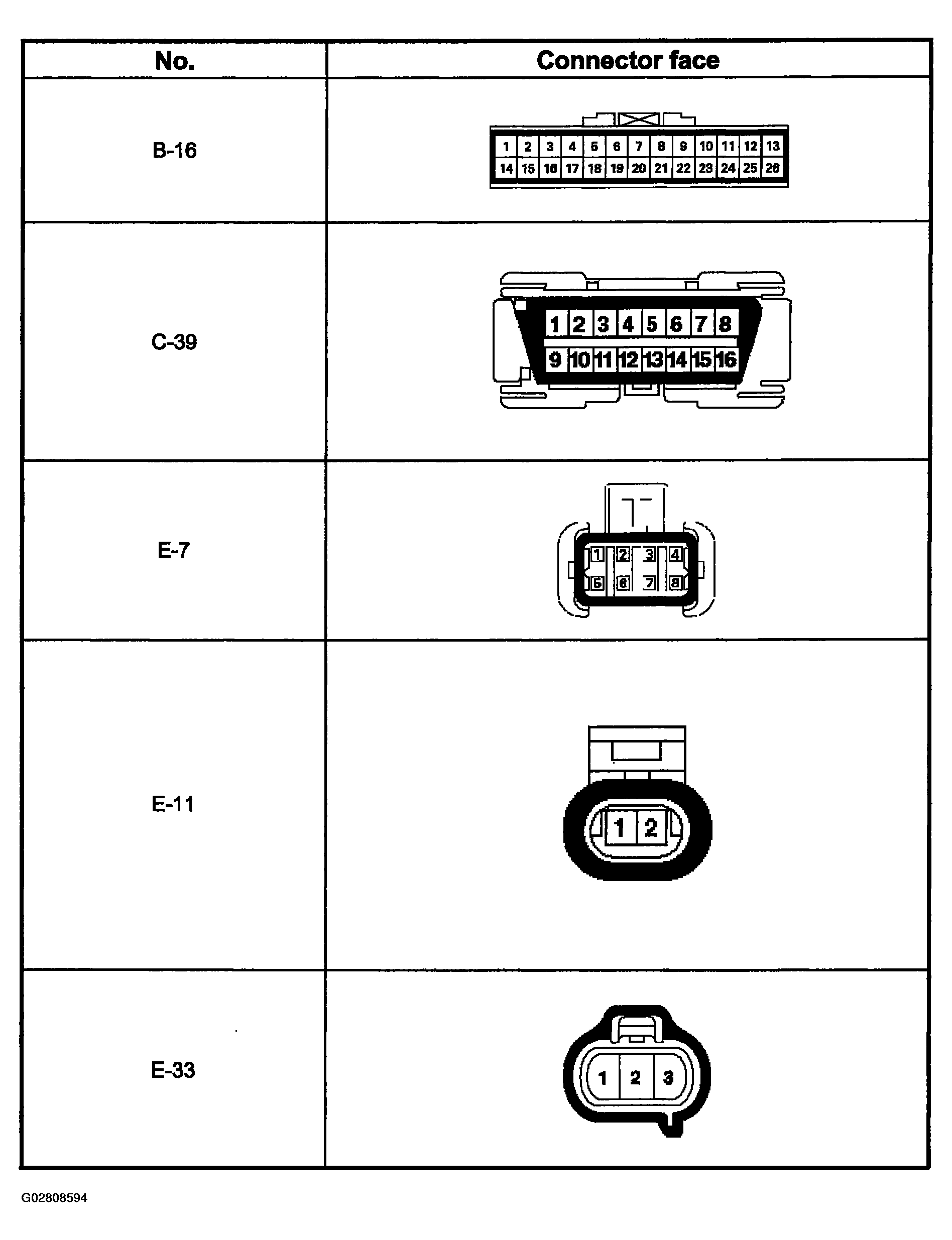

Fig 2: Identifying Harness Connector Faces And Terminals (2 Of 5)
Courtesy of ISUZU MOTOR CO.

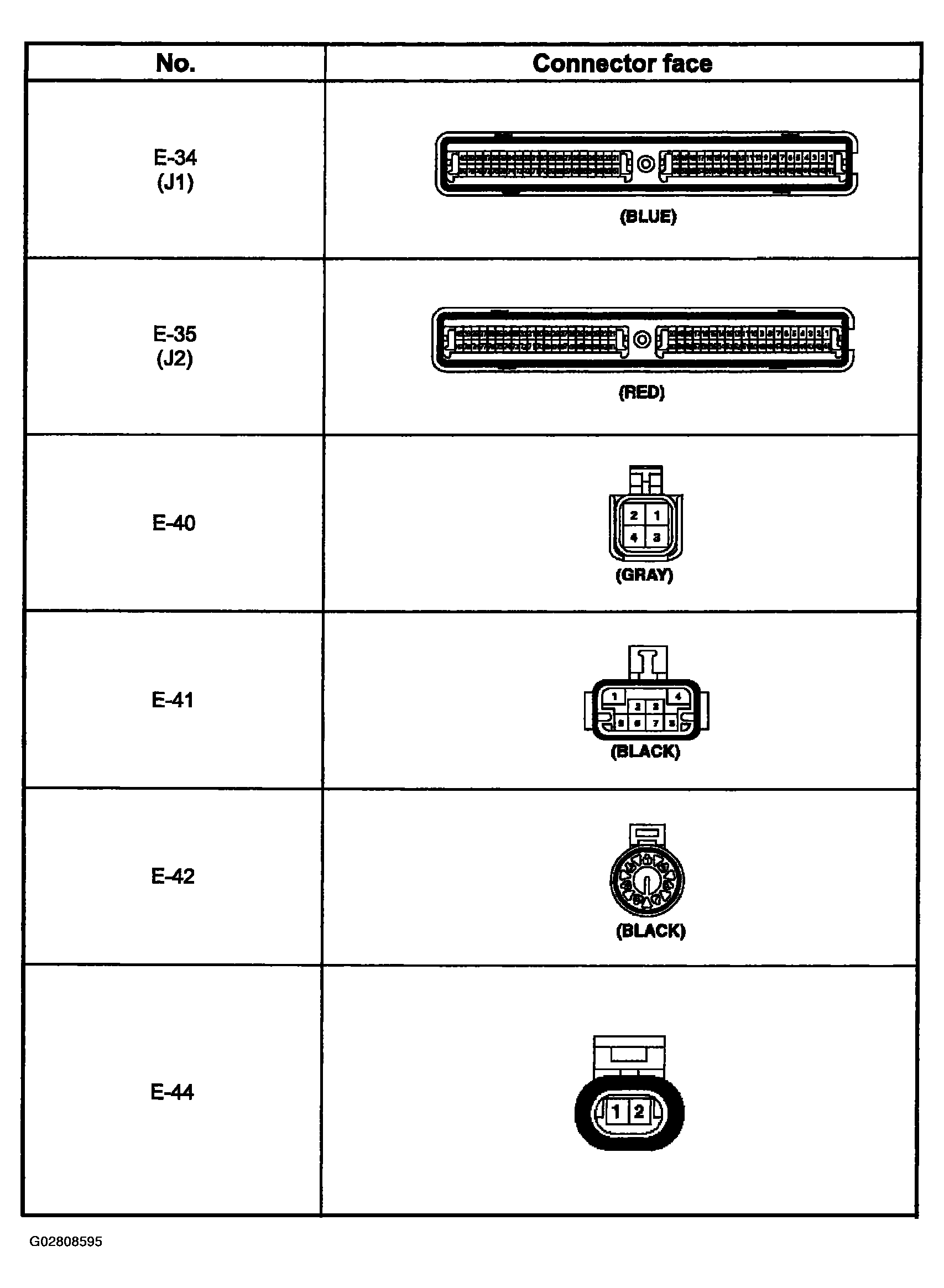

Fig 3: Identifying Harness Connector Faces And Terminals (3 Of 5)
Courtesy of ISUZU MOTOR CO.
Fig 4: Identifying Harness Connector Faces And Terminals (4 Of 5)
Courtesy of ISUZU MOTOR CO.

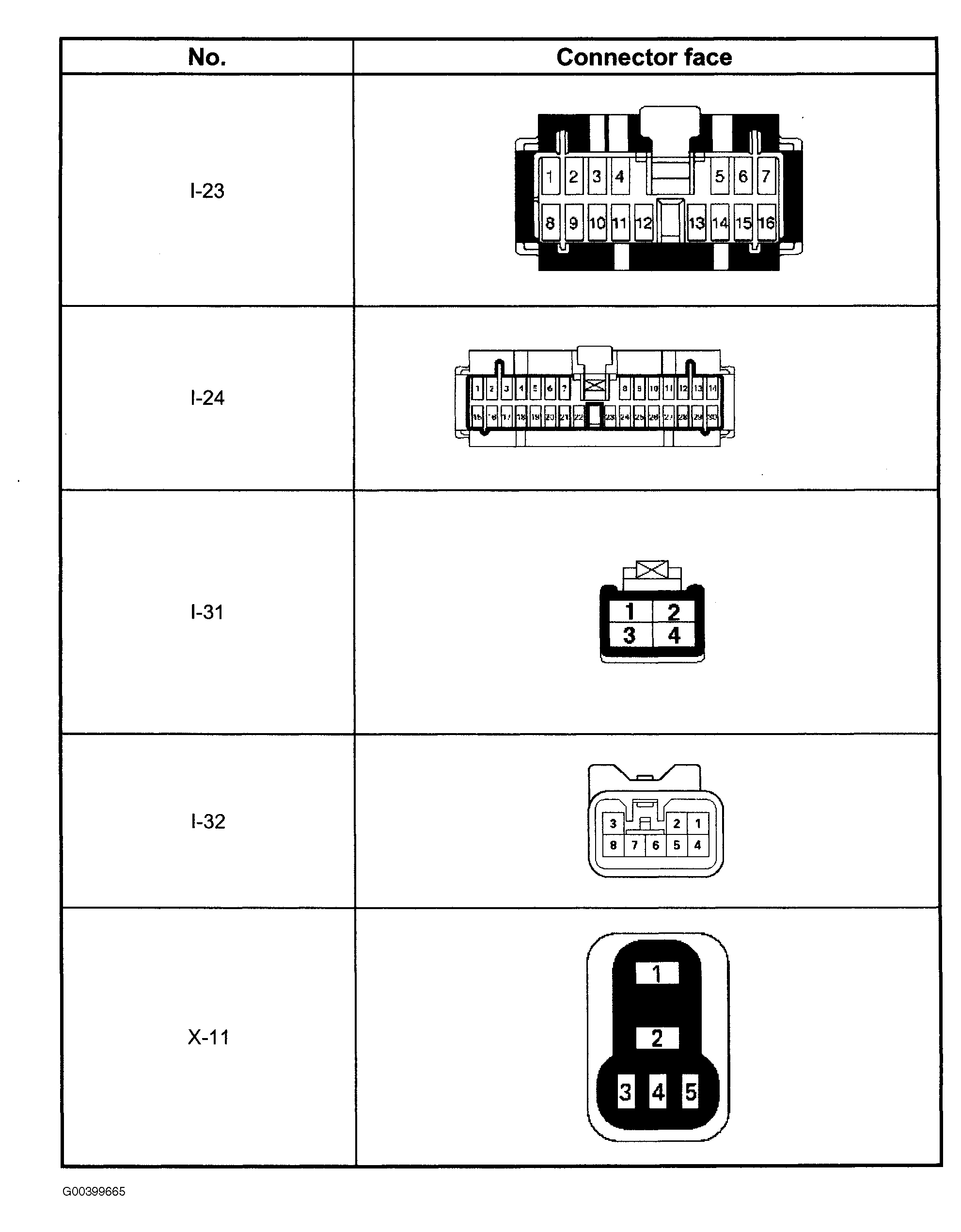

Fig 5: Identifying Harness Connector Faces And Terminals (5 Of 5)
Courtesy of ISUZU MOTOR CO.
