Motor Position And Encoder Position Code

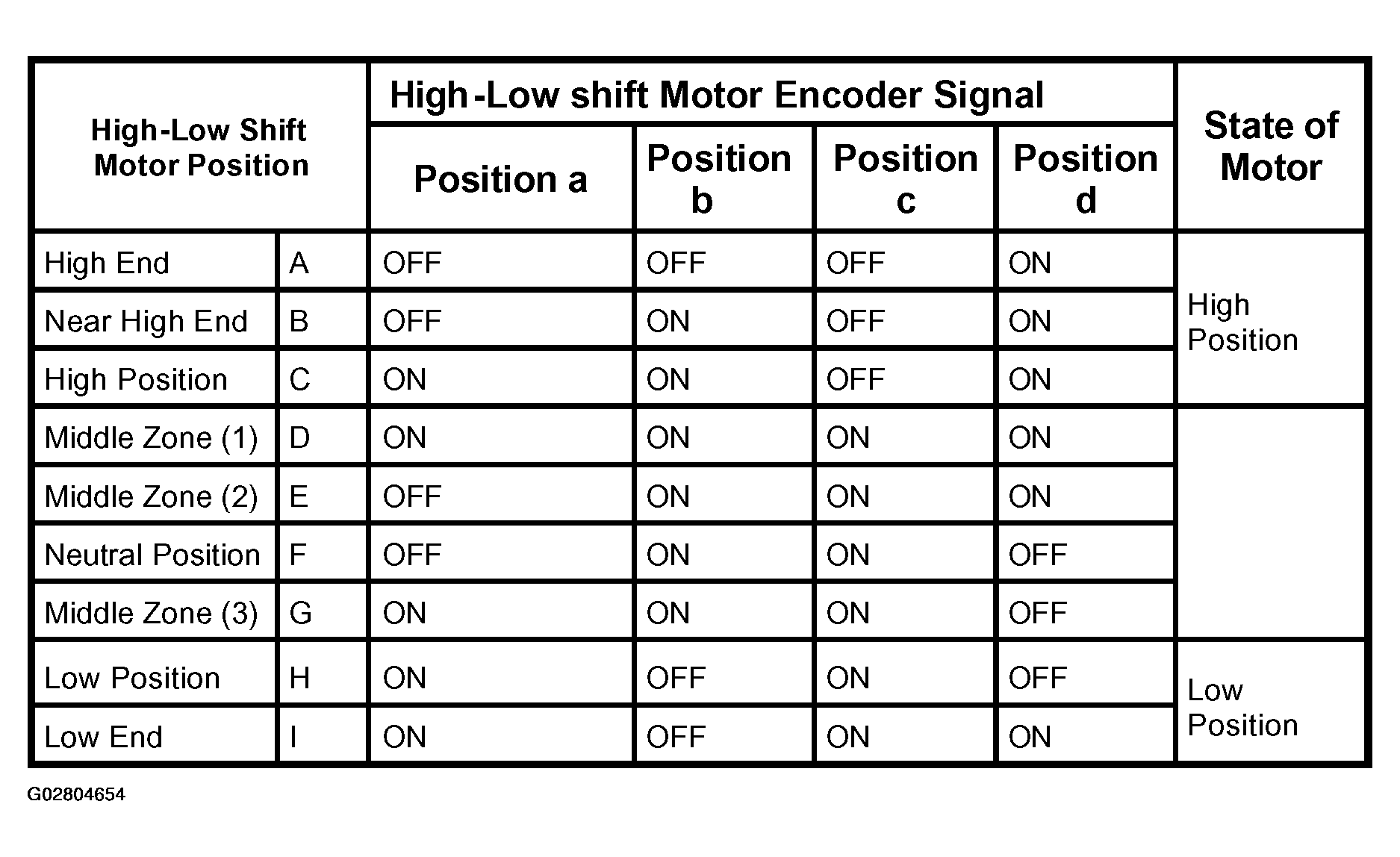

Fig 1: High-Low Shift Motor Position & Encoder Position Code Chart

G02804654

Courtesy of ISUZU MOTOR CO.
