Steering Column: Installation

  1. Install steering column assembly and second steering shaft.
  2. Align the setting marks on the universal joint and second steering shaft made during removal.
  3. Tighten the steering column fixing bolt (dash panel) to the specified torque.

    Torque:  20 N.m (14lb ft)

  4. Tighten the steering column fixing nuts (cross beam) to the specified torque.

    Torque:  17 N.m (12 lb ft)

  5. Tighten the universal joint to the specified torque.

    Torque:  31 N.m (23 lb ft)

  6. Install lock cylinder assembly.
  7. Install shift lock cable (For A/T).
  8. Install cushion rubber.
  9. Install snap ring.
  10. Install combination switch and SRS coil assembly. After installation of combination switch assembly, connect the combination switch wiring harness connector and the SRS 2-way connector located under the steering column.
  11. Turn the SRS coil counter clockwise to full, return about 3 turns and align the neutral mark.
    CAUTION: Turn the SRS coil counter clockwise until a resistance is felt or damage to the SRS coil may occur from over turning.

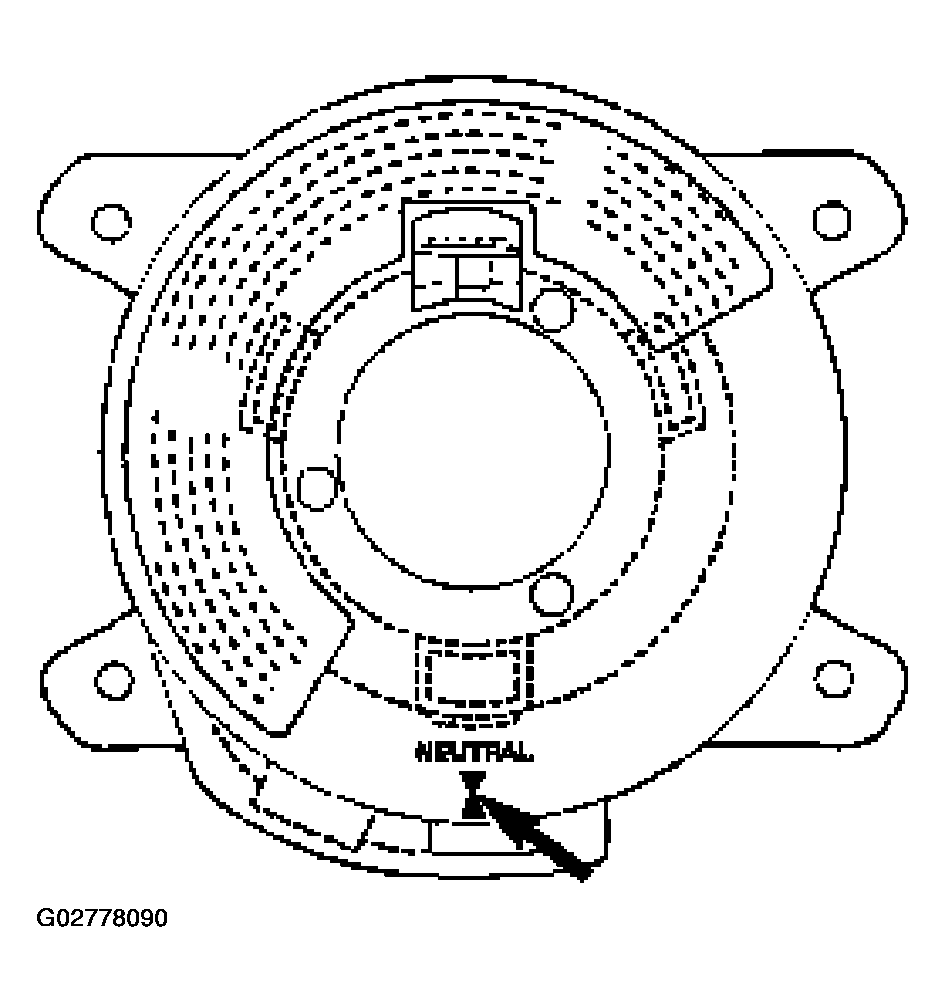

    Fig 1: Aligning Neutral Mark
    G02778090
  12. When installing the steering column cover, be sure to route each wire harness as illustrated so that the harnesses do not catch any moving parts.

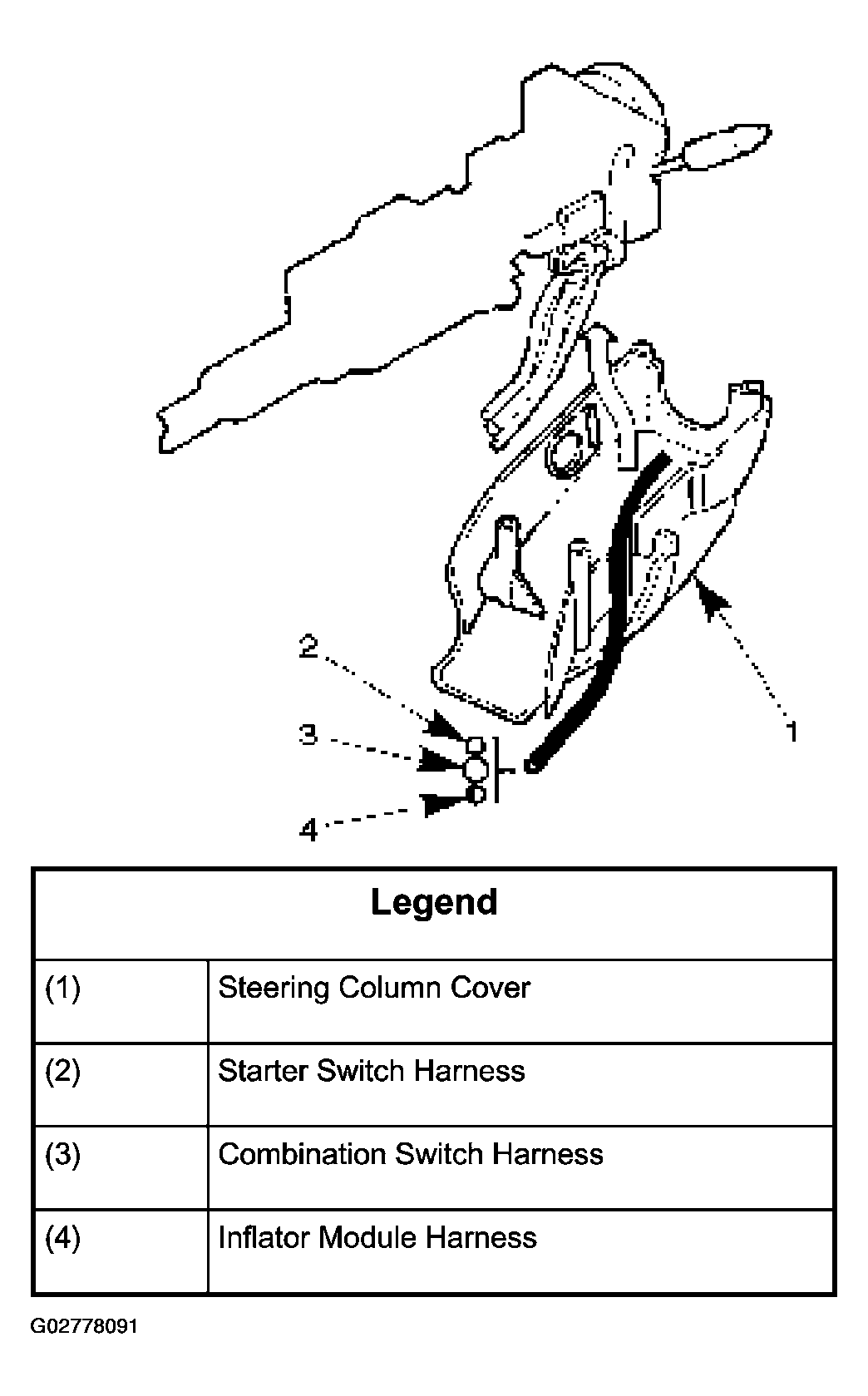

    Fig 2: Installing Steering Column Cover
    G02778091
  13. Install steering wheel and align the setting marks made when removing.
    CAUTION: Never apply force to the steering wheel shaft using a hammer or other impact tools in an attempt to remove the steering wheel. The steering shaft is designed as an energy absorbing unit.
  14. Tighten the steering wheel fixing nut to the specified torque.

    Torque:  34 N.m (25 lb ft)

  15. Support the module and carefully connect the module connector and horn lead, then install inflator module.
    NOTE: Pass the lead wire through the tabs on the plastic cover (wire protector) of inflator to prevent lead wire from being pinched.
  16. Tighten bolts to specified torque.

    Torque:  9 N.m (78 lb in)

  17. Install driver knee bolster (reinforcement).
  18. Install instrument panel lower cover.
  19. Install the engine hood opening lever.
  20. Connect the yellow 2-way SRS connector and horn lead located under the steering column.
  21. Connect the battery ground cable.
