4WD Control Unit: Removal: Notes

  1. Remove center console assembly. Refer to CONSOLES .
  2. Remove two screws and harness connector (1) from 4WD control unit.

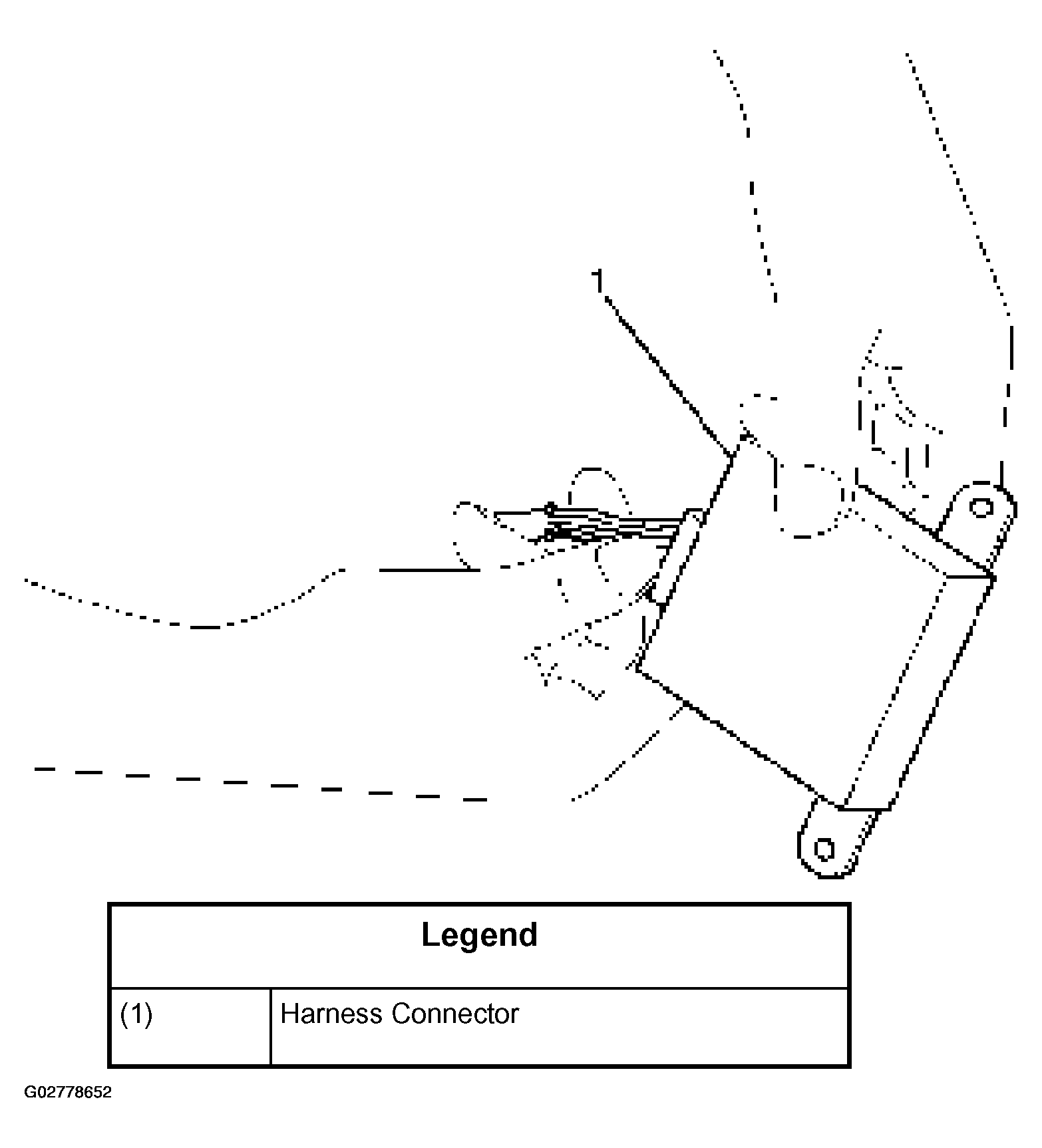

    Fig 1: Removing Harness Connector
    G02778652Courtesy of ISUZU MOTOR CO.
