System Tests

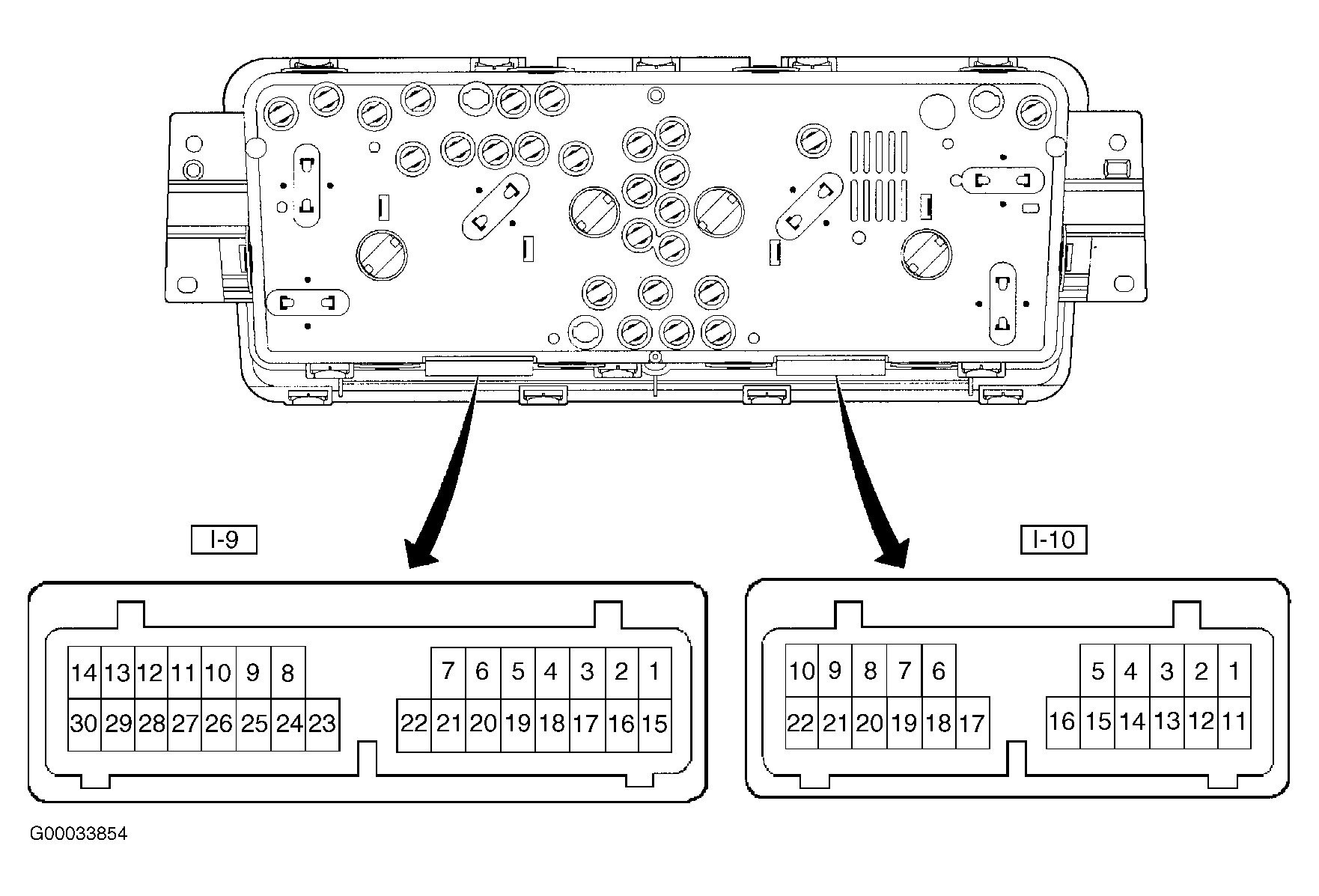

Test procedures are not available from manufacturer. Use wiring diagrams and appropriate INSTRUMENT CLUSTER CONNECTOR & TERMINAL IDENTIFICATION table to diagnose and repair affected circuits. See WIRING DIAGRAMS . See Fig 1.
INSTRUMENT CLUSTER CONNECTOR & TERMINAL IDENTIFICATION (WITH TOD)
| Connector & Terminal No. | Circuit | |
|---|---|---|
| I-9 | ||
| 1 | Not Used | |
| 2 | Air Bag Warning Light | |
| 3 | A/T Oil Temp Warning Light | |
| 4 | Charge Warning Light | |
| 5 | Seat Belt Warning Light | |
| 6 | Check Trans Warning Light | |
| 7 | Brake Warning Light | |
| 8 | Not Used | |
| 9 | Tachometer | |
| 10 | Not Used | |
| 11 | Turn Signal Indicator (Left) | |
| 12 | A/T Shift Indicator Control Unit | |
| 13 | 2 Position (A/T) | |
| 14 | D Position (A/T) | |
| 15 | Rear (TOD) | |
| 16 | Auto (TOD) | |
| 17 | Check (TOD) | |
| 18 | Cruise SET Indicator Light | |
| 19 | Cruise MAIN Indicator Light | |
| 20 | Oil Pressure Warning Light | |
| 21 | Front 1 (TOD) | |
| 22 | Front 2 (TOD) | |
| 23 | Front 3 (TOD) | |
| 24 | Lighting Switch | |
| 25 | Illumination Controller | |
| 26 | Starter Switch | |
| 27 | Not Used | |
| 28 | Winter Drive Indicator Light | |
| 29 | Power Drive Indicator Light | |
| 30 | Not Used | |
| I-10 | ||
| 1 | Turn Signal Indicator (Right) | |
| 2 | L Position (A/T) | |
| 3 | R Position (A/T) | |
| 4 | CHECK ENGINE Warning Light | |
| 5 | Speedometer | |
| 6 | Not Used | |
| 7 | Not Used | |
| 8 | Battery (+) | |
| 9 | Engine Coolant Temp Gauge | |
| 10 | Ground (Warning) | |
| 11 | P Position (A/T) | |
| 12 | N Position (A/T) | |
| 13 | 3 Position (A/T) | |
| 14 | Hi-Beam Indicator Light (-) | |
| 15 | Hi-Beam Indicator Light (+) | |
| 16 | ABS Indicator Light | |
| 17 | Not Used | |
| 18 | Fuel Warning Light | |
| 19 | Not Used | |
| 20 | Fuel Gauge | |
| 21 | Ground (Gauge) | |
| 22 | Not Used | |
INSTRUMENT CLUSTER CONNECTOR & TERMINAL IDENTIFICATION (WITHOUT TOD)
| Connector & Terminal No. | Circuit | |
|---|---|---|
| I-9 | ||
| 1 | A/T Oil Temp Warning Light | |
| 2 | Seat Belt Warning Light | |
| 3 | Check Trans Warning Light | |
| 4 | Brake Warning Light | |
| 5 | CHECK ENGINE Warning Light | |
| 6 | Charge Warning Light | |
| 7 | Lighting Switch | |
| 8 | Illumination Controller | |
| 9 | Tachometer | |
| 10 | D Position | |
| 11 | Not Used | |
| 12 | A/T Shift Indicator Control Unit | |
| 13 | Not Used | |
| 14 | 2 Position (A/T) | |
| 15 | Starter Switch | |
| 16 | Cruise SET Indicator Light | |
| 17 | Cruise MAIN Indicator Light | |
| 18 | 4WD Indicator Light | |
| 19 | Ground (Gauge) | |
| 20 | Not Used | |
| 21 | Winter Drive Indicator Light | |
| 22 | Oil Pressure Warning Light | |
| 23 | Not Used | |
| 24 | Air Bag Warning Light | |
| 25 | Power Drive Indicator Light | |
| 26 | Not Used | |
| 27 | UP Shift Indicator Light (-) | |
| 28 | Turn Signal Indicator (Left) | |
| 29 | UP Shift Indicator Light (+) | |
| 30 | Ground (Warning) | |
| I-10 | ||
| 1 | Turn Signal Indicator (Right) | |
| 2 | L Position (A/T) | |
| 3 | R Position (A/T) | |
| 4 | Engine Coolant Temp Gauge | |
| 5 | Speedometer | |
| 6 | Not Used | |
| 7 | Not Used | |
| 8 | Battery (+) | |
| 9 | Not Used | |
| 10 | Not Used | |
| 11 | P Position (A/T) | |
| 12 | N Position (A/T) | |
| 13 | 3 Position (A/T) | |
| 14 | Hi-Beam Indicator Light (-) | |
| 15 | Hi-Beam Indicator Light (+) | |
| 16 | ABS Indicator Light | |
| 17 | Not Used | |
| 18 | Fuel Warning Light | |
| 19 | Oil Pressure Gauge | |
| 20 | Fuel Gauge | |
| 21 | Not Used | |
| 22 | Not Used | |
