Home >> Isuzu >> 2002 >> Trooper LS, RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> General Diagnosis >> Basic Inspection Procedure

Basic Inspection Procedure

  1. Basic Inspection of Brake System

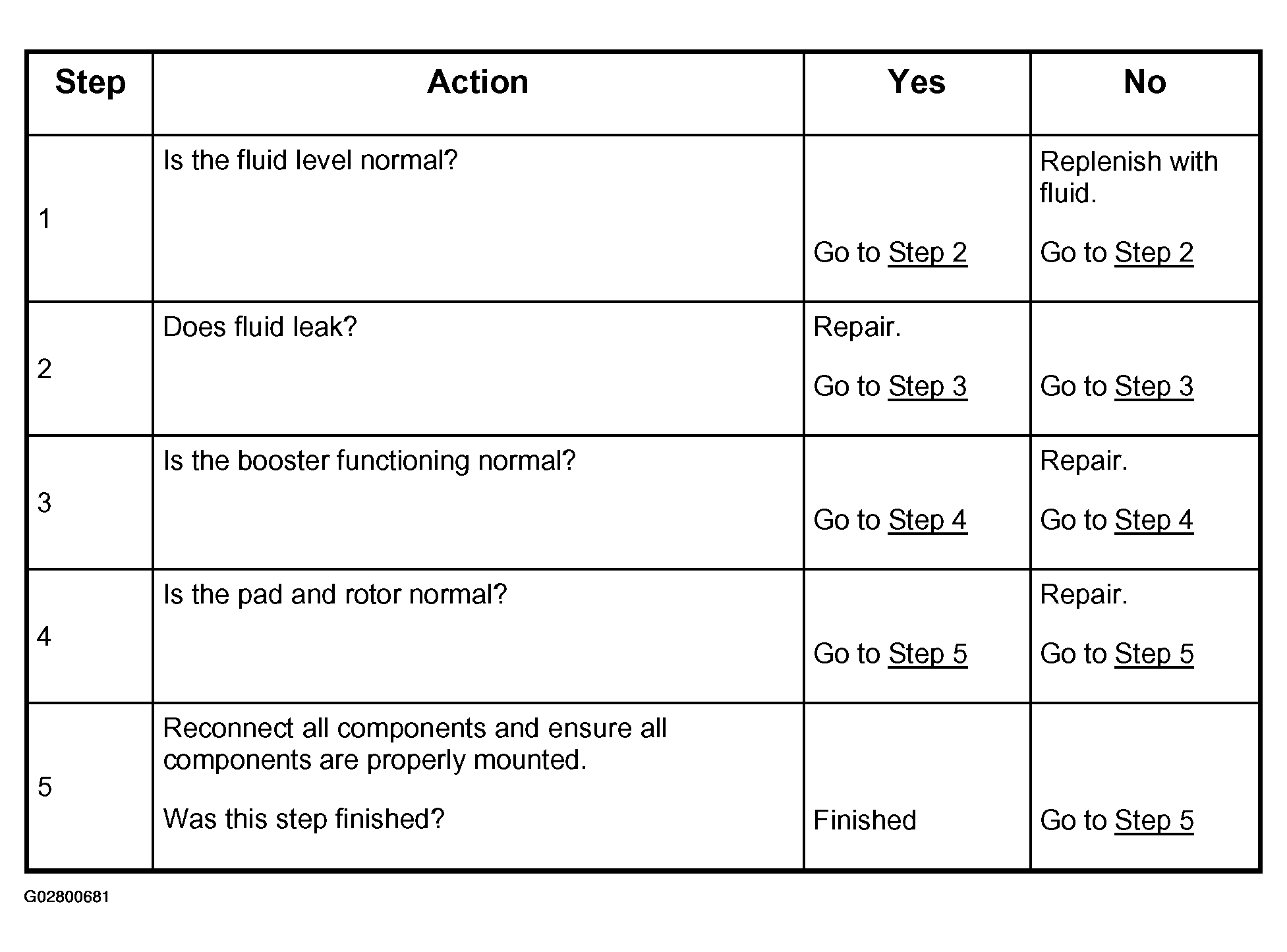

    Fig 1: Basic Inspection Of Brake System Chart
    G02800681Courtesy of ISUZU MOTOR CO.
  2. Inspection of Front Axle Switch

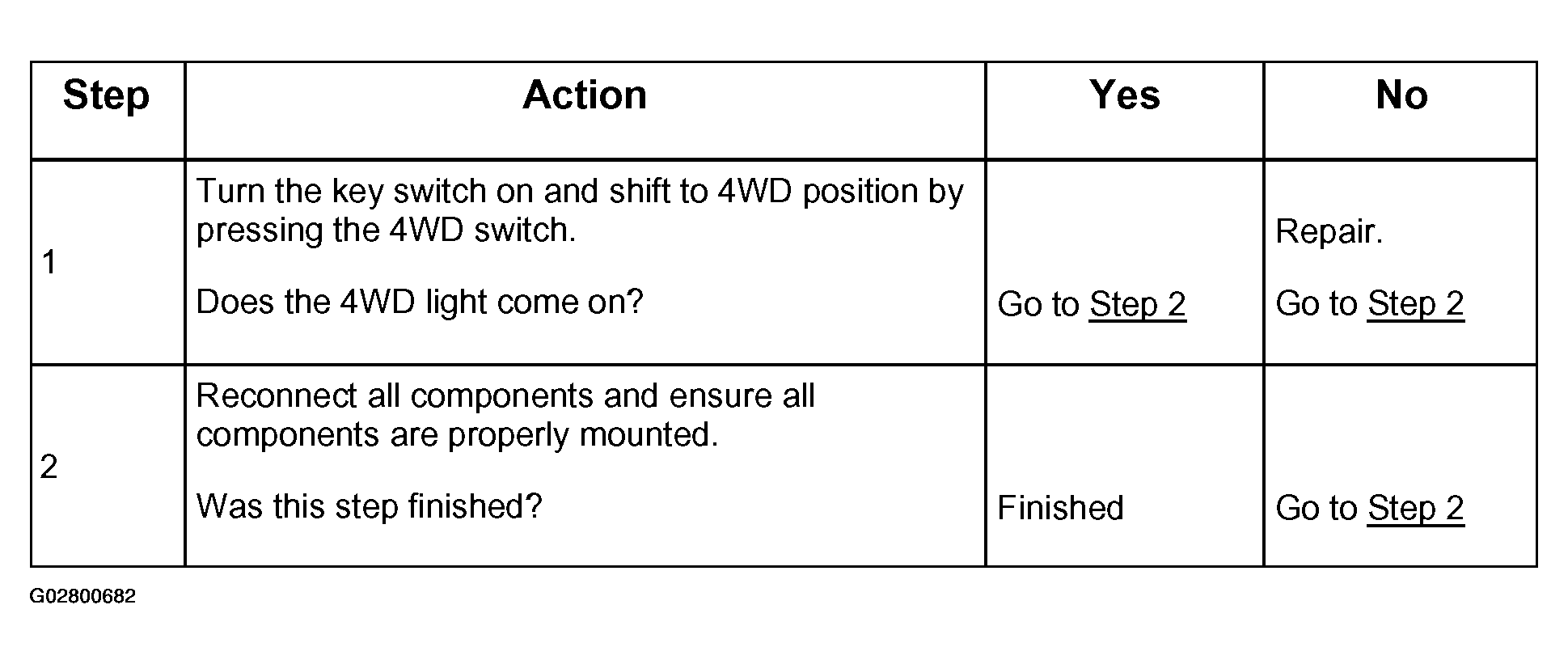

    Fig 2: Inspection Of Front Axle Switch Chart
    G02800682Courtesy of ISUZU MOTOR CO.
  3. Ground Inspection

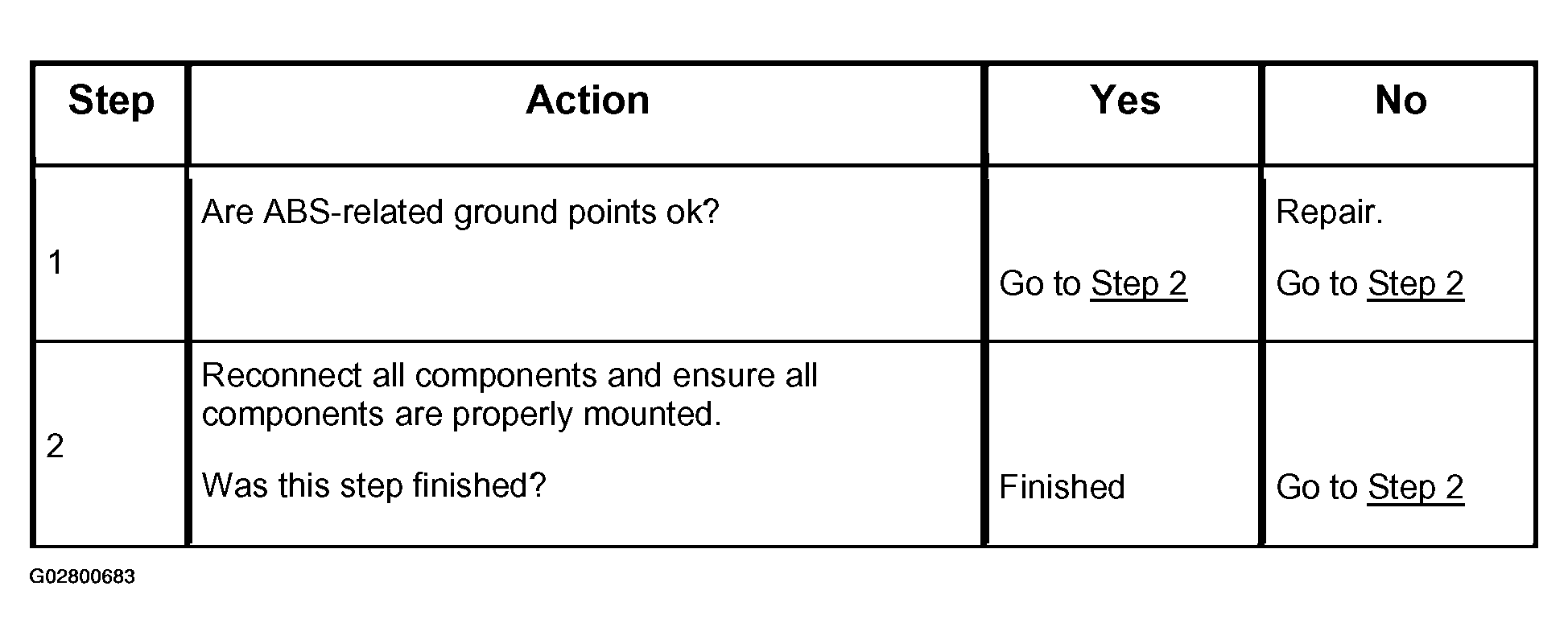

    Fig 3: Ground Inspection Chart
    G02800683Courtesy of ISUZU MOTOR CO.
