Circuit Diagram
Circuit Diagram

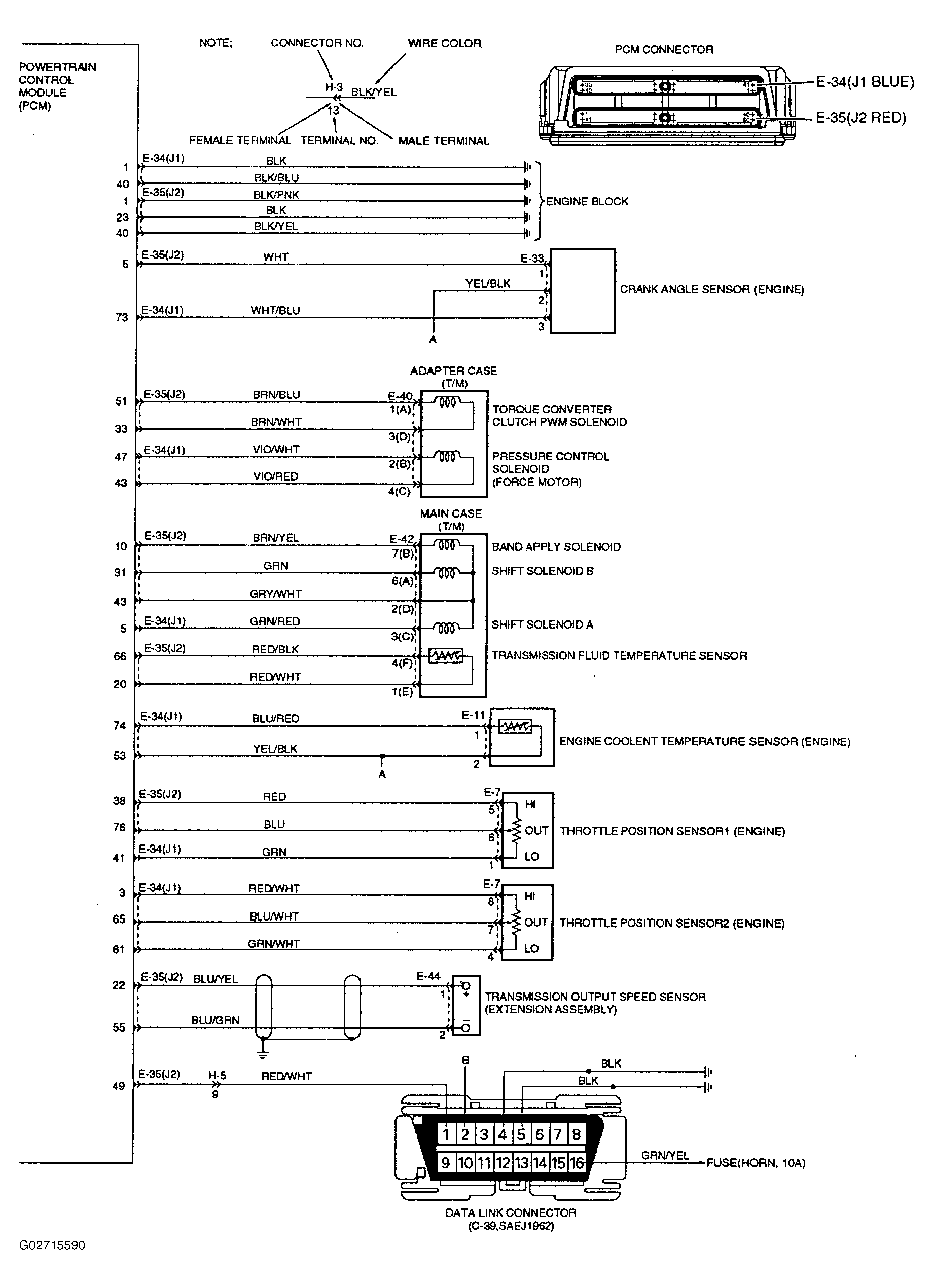

Fig 1: Transmission Control System Circuit Diagram (1 Of 2)
Courtesy of ISUZU MOTOR CO.

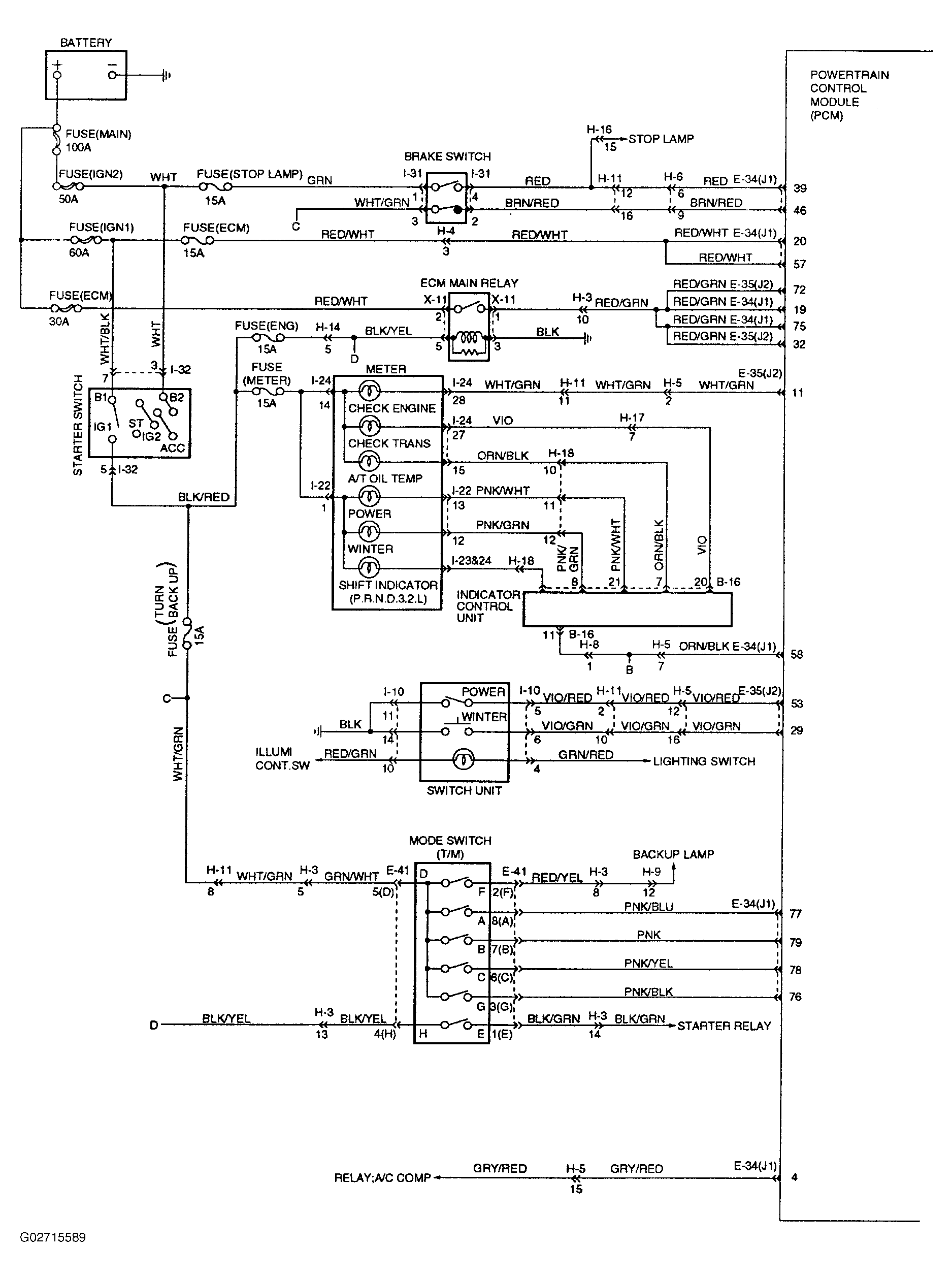

Fig 2: Transmission Control System Circuit Diagram (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
