Home >> Isuzu >> 2003 >> Axiom Base, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Transmission Control System >> General Description >> Functions of Input / Output Components

Functions of Input / Output Components

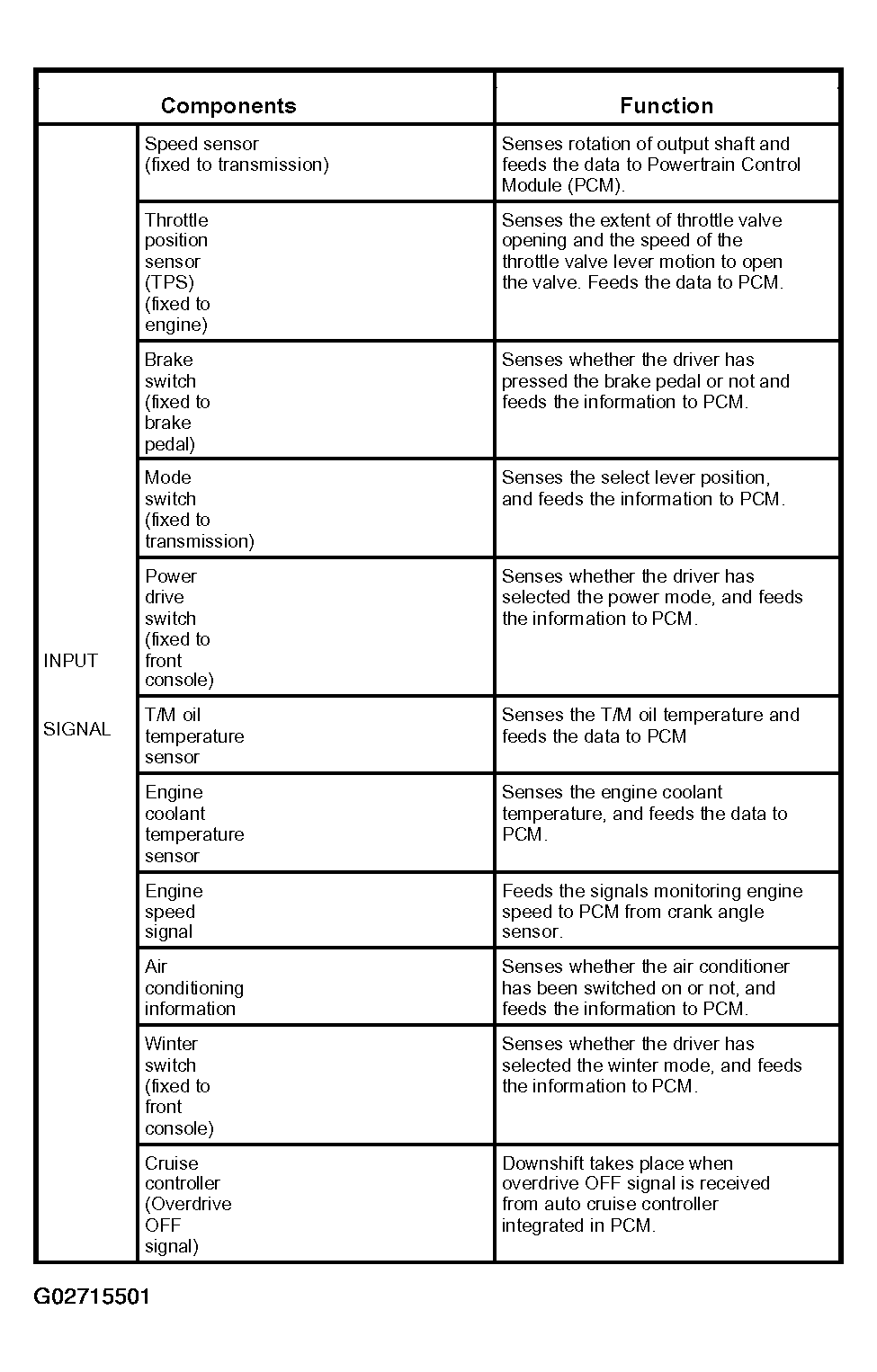

Fig 1: Input Components Functions Table

G02715501

Courtesy of ISUZU MOTOR CO.

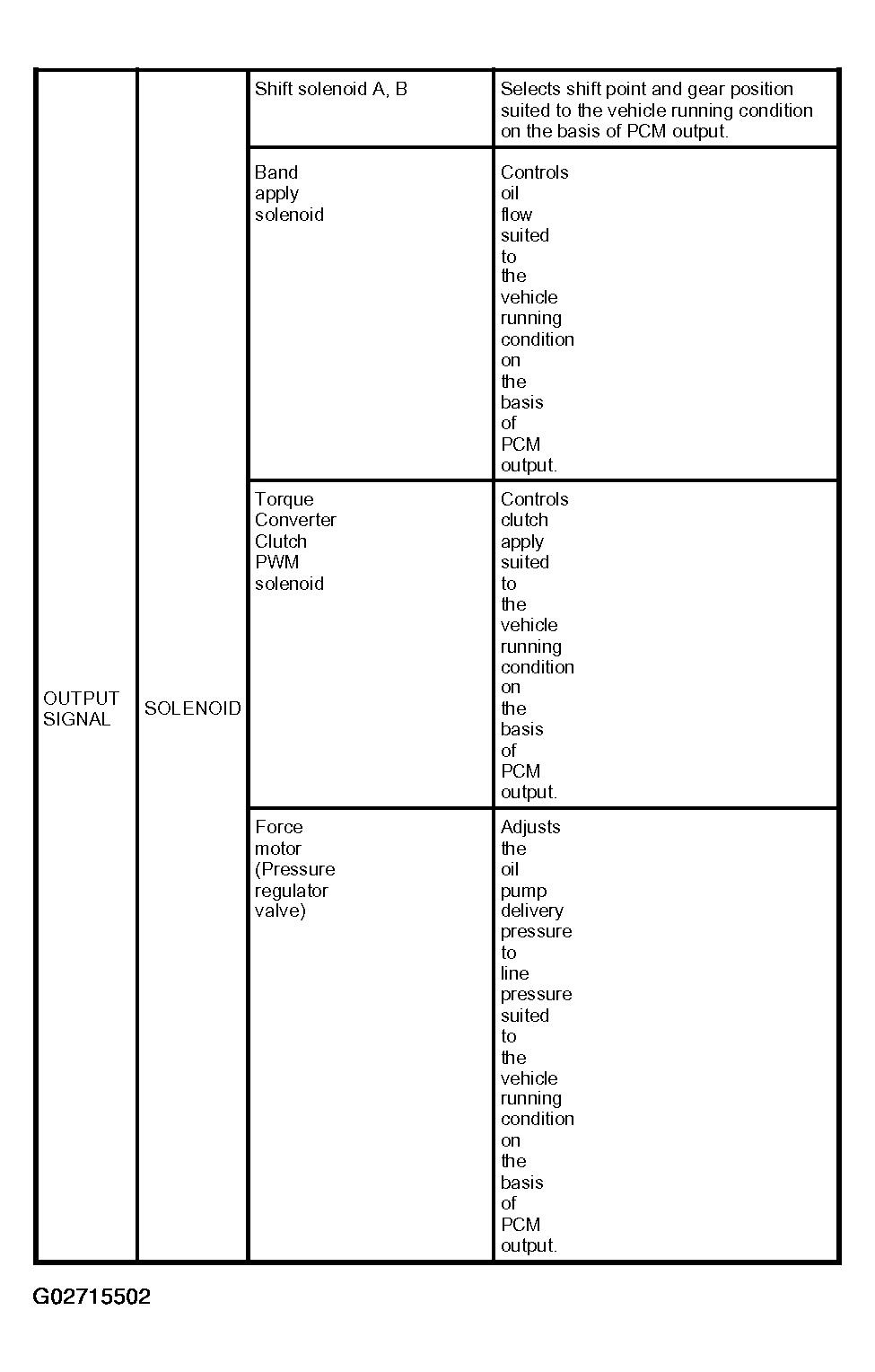

Fig 2: Output Components Functions Table

G02715502

Courtesy of ISUZU MOTOR CO.
