Checking Failed Pin
>>
Connector Pin Assignment
Connector Pin Assignment
TOD control unit pin assignment

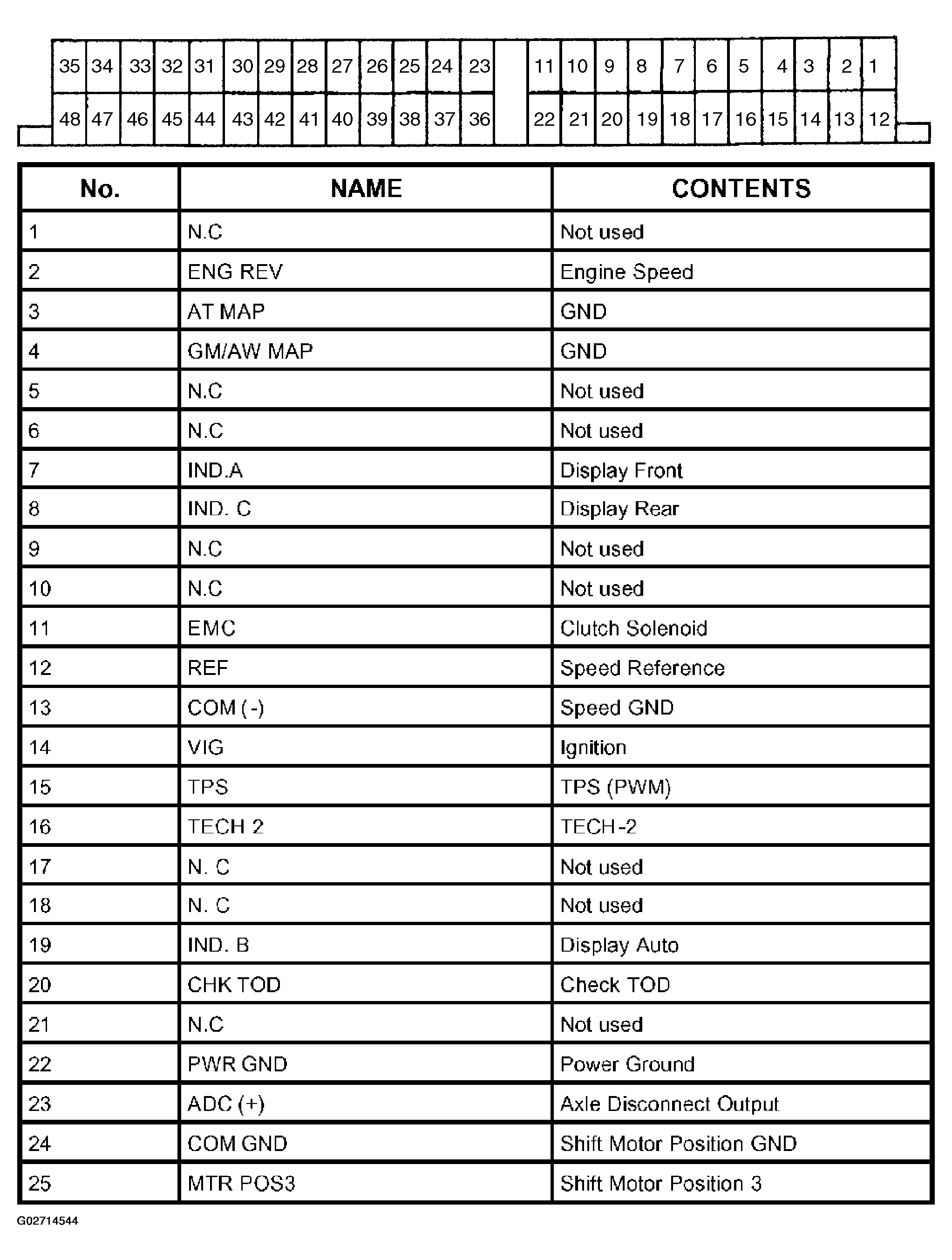

Fig 1: Connector Pin Assignment Chart (1 Of 2)
Courtesy of ISUZU MOTOR CO.

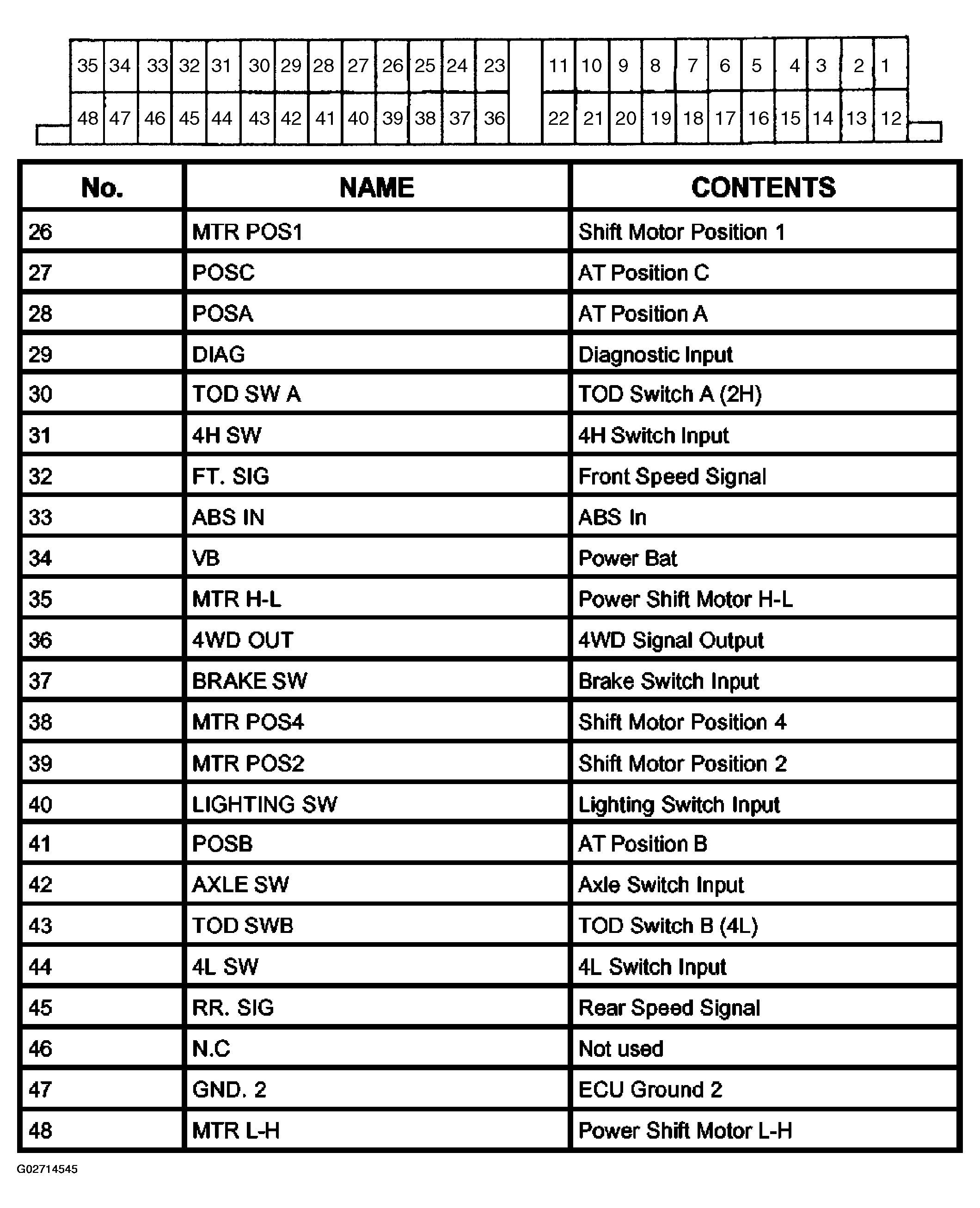

Fig 2: Connector Pin Assignment Chart (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
