Connector List
Connector List

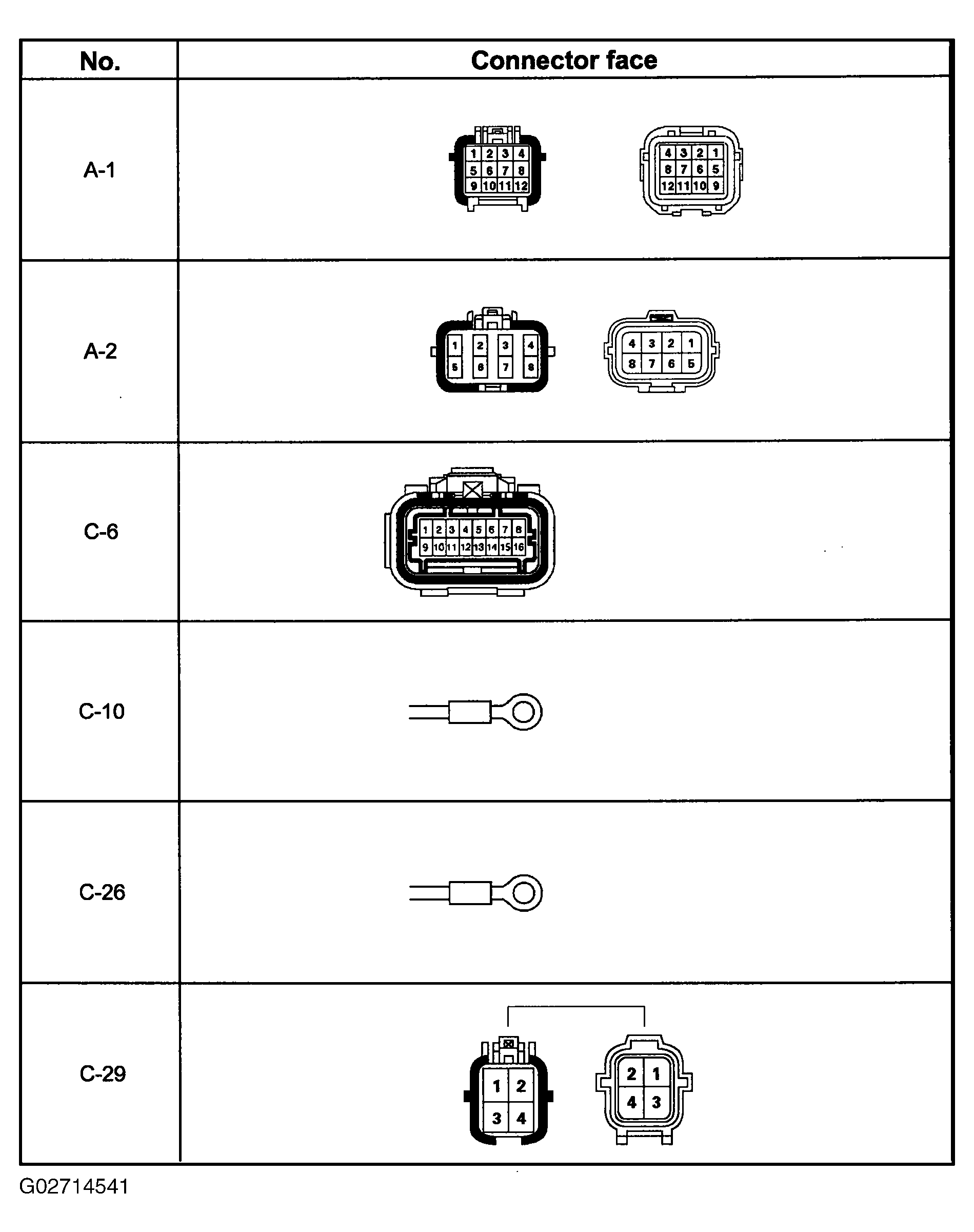

Fig 1: Identifying TOD System Harness Connector Views (1 Of 4)
Courtesy of ISUZU MOTOR CO.

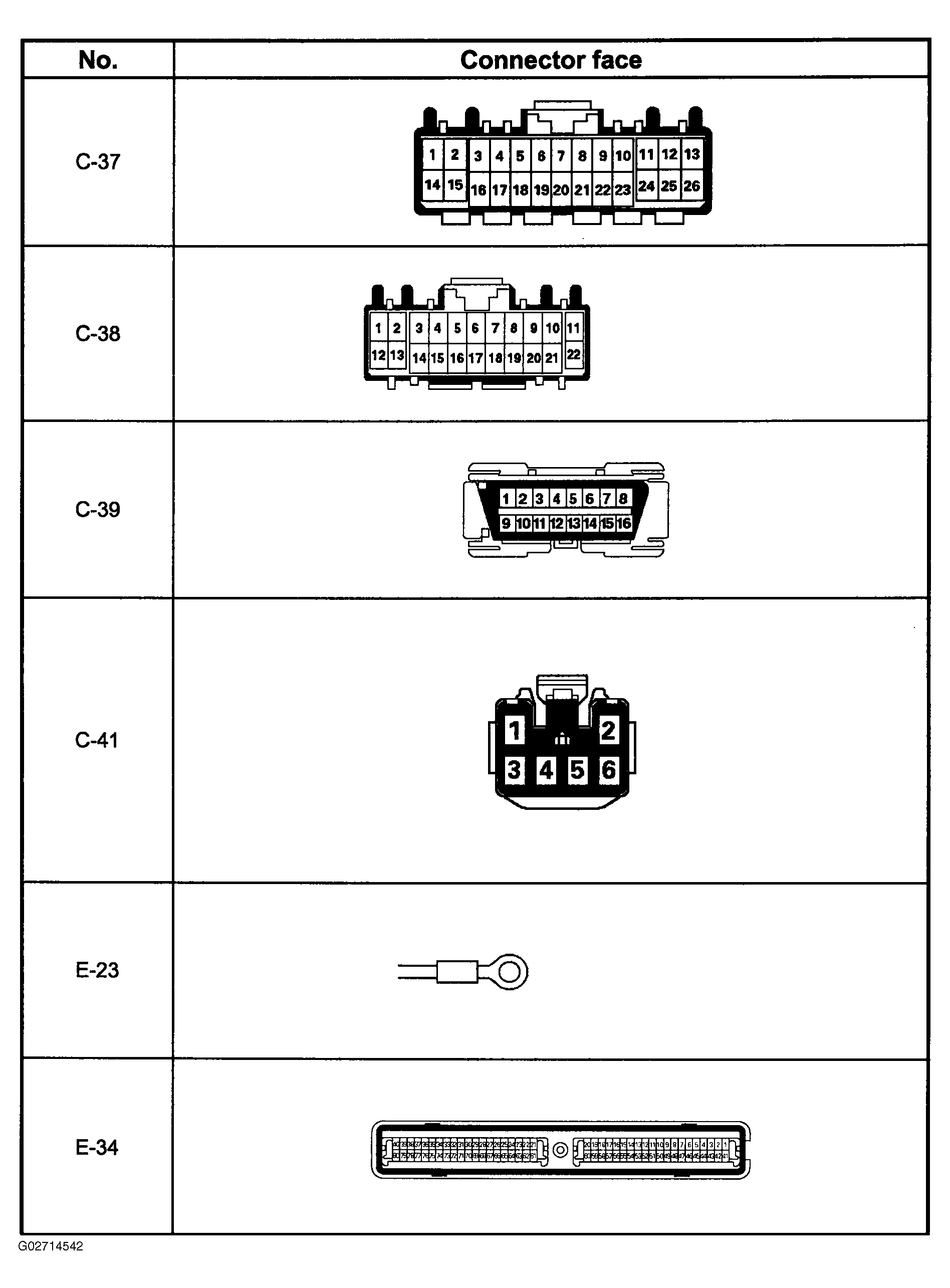

Fig 2: Identifying TOD System Harness Connector Views (2 Of 4)
Courtesy of ISUZU MOTOR CO.

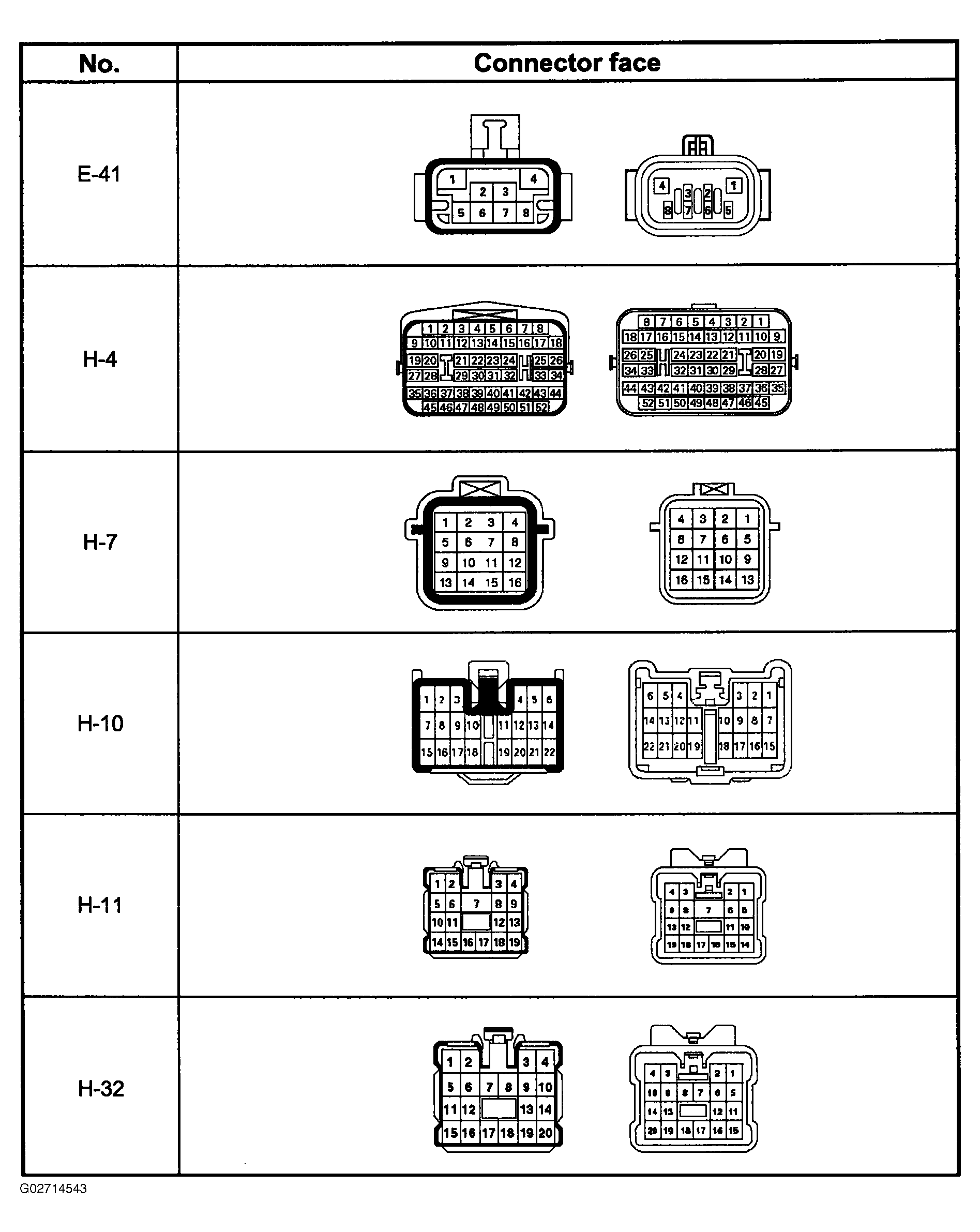

Fig 3: Identifying TOD System Harness Connector Views (3 Of 4)
Courtesy of ISUZU MOTOR CO.

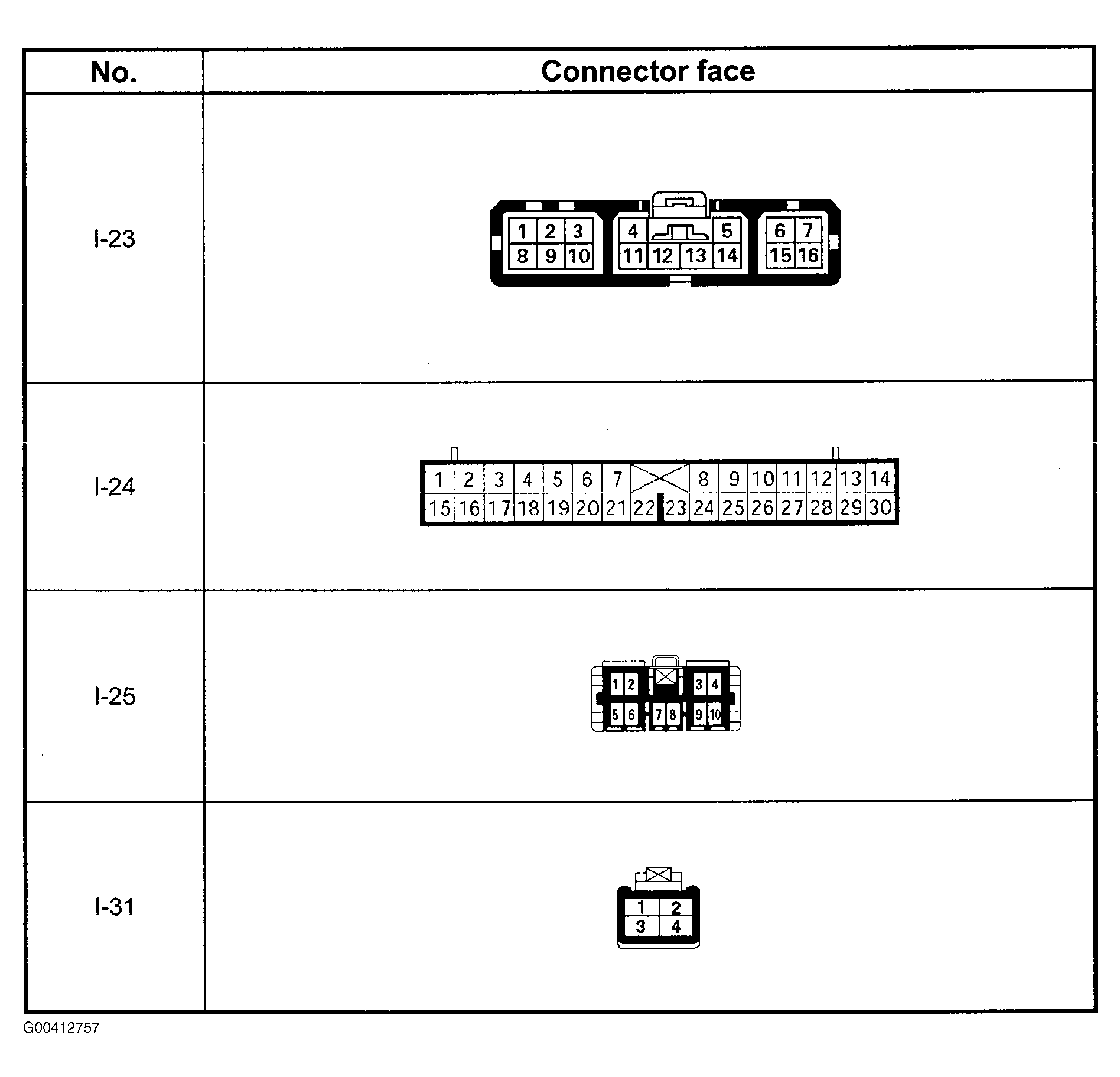

Fig 4: Identifying TOD System Harness Connector Views (4 Of 4)
Courtesy of ISUZU MOTOR CO.
