Motor Position and Encoder Position Code

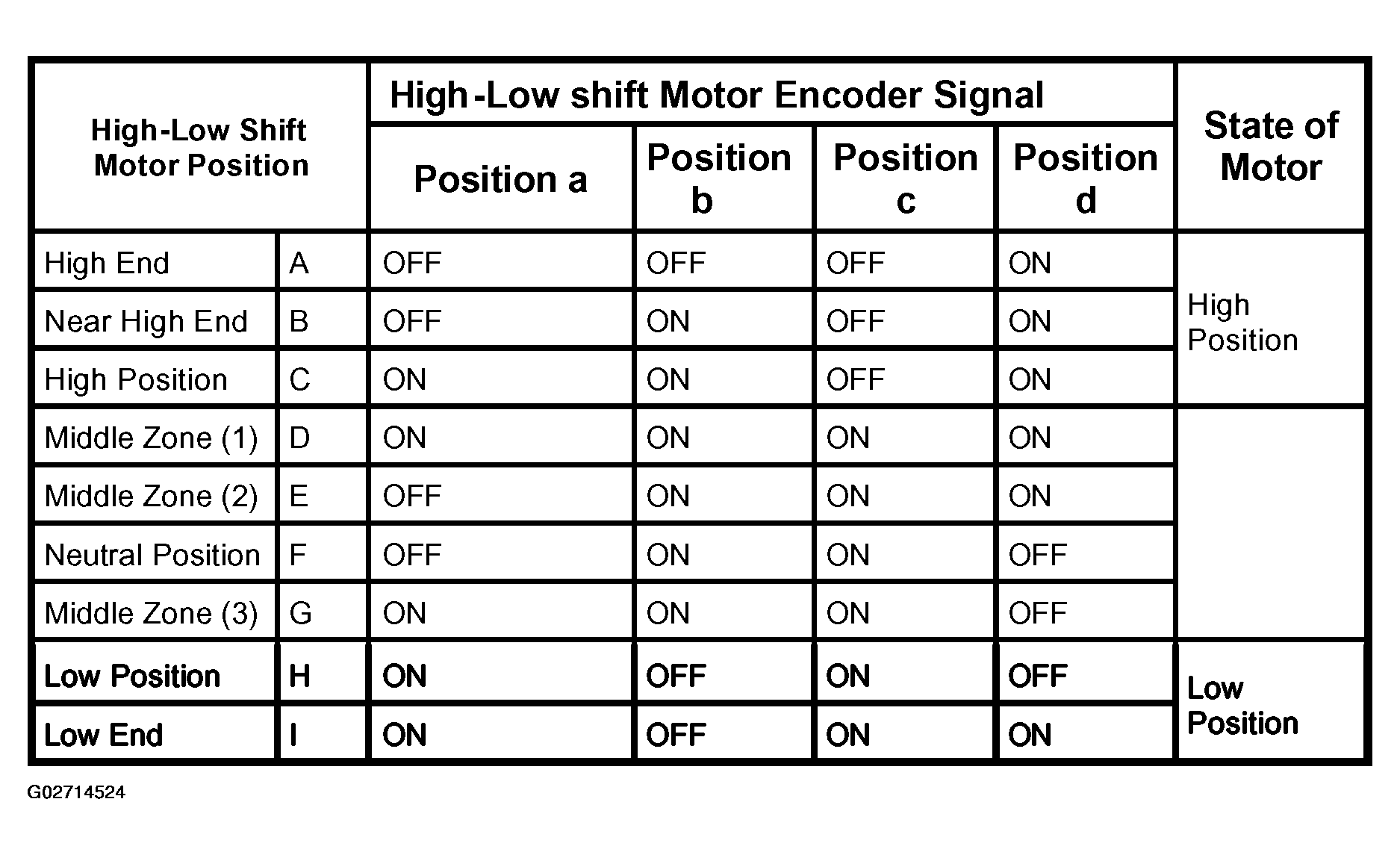

Fig 1: High-Low Shift Motor Position & Encoder Position Code Chart

G02714524

Courtesy of ISUZU MOTOR CO.
