Return Test

  1. Connect the ground (-) to terminal "50" and magnetic switch body. See Fig 1.
  2. Verify that the pinion pulls out when the batter (+) pole is connected to terminal "C" and the pinion pulls away when the lead wire is disconnected from terminal "50".

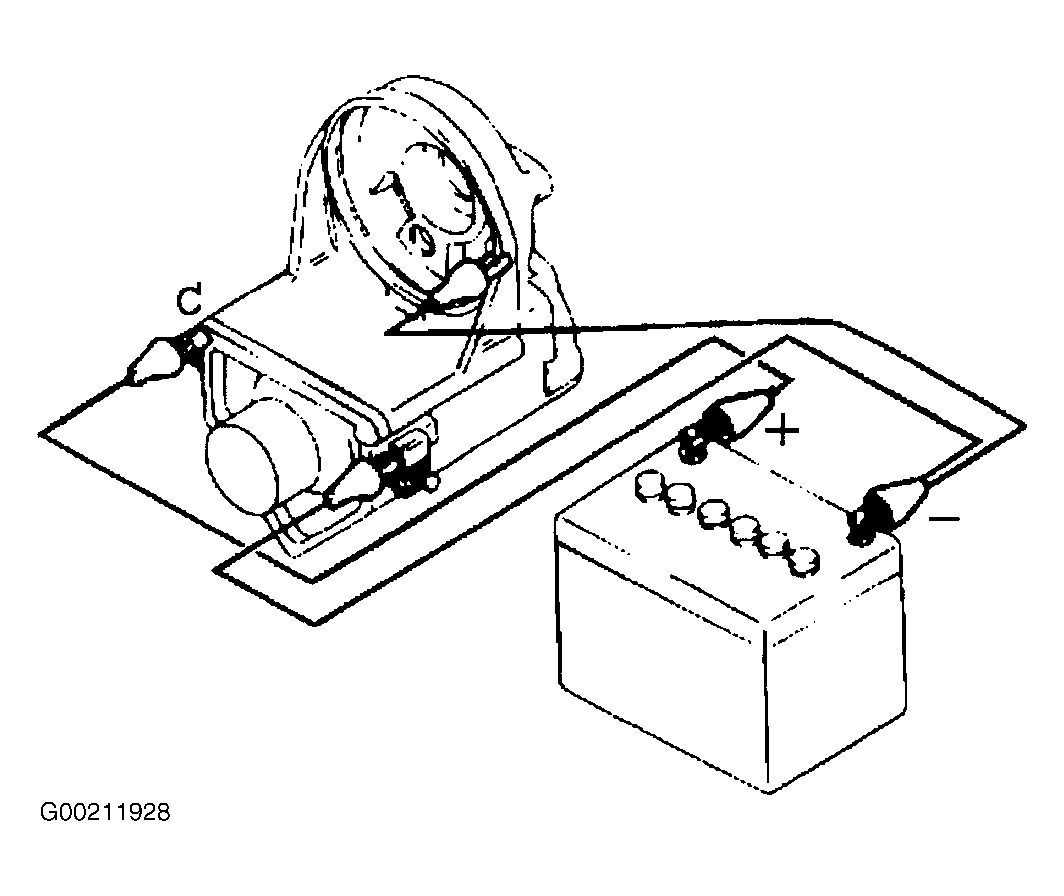

    Fig 1: Connecting Ground To Terminal "50" & Magnetic Switch Body
    G00211928Courtesy of ISUZU MOTOR CO.
