Combination Switch: Installation

Install combination switch and SRS coil assembly. After installation of combination switch assembly, connect the combination switch wiring harness connector and the SRS connector located under the steering column. Then turn the SRS coil counter clockwise to full, return about 3 turns and align the neutral mark.
CAUTION: Turn the SRS coil counter clockwise until some resistance is felt, or damage may occur to the SRS coil.

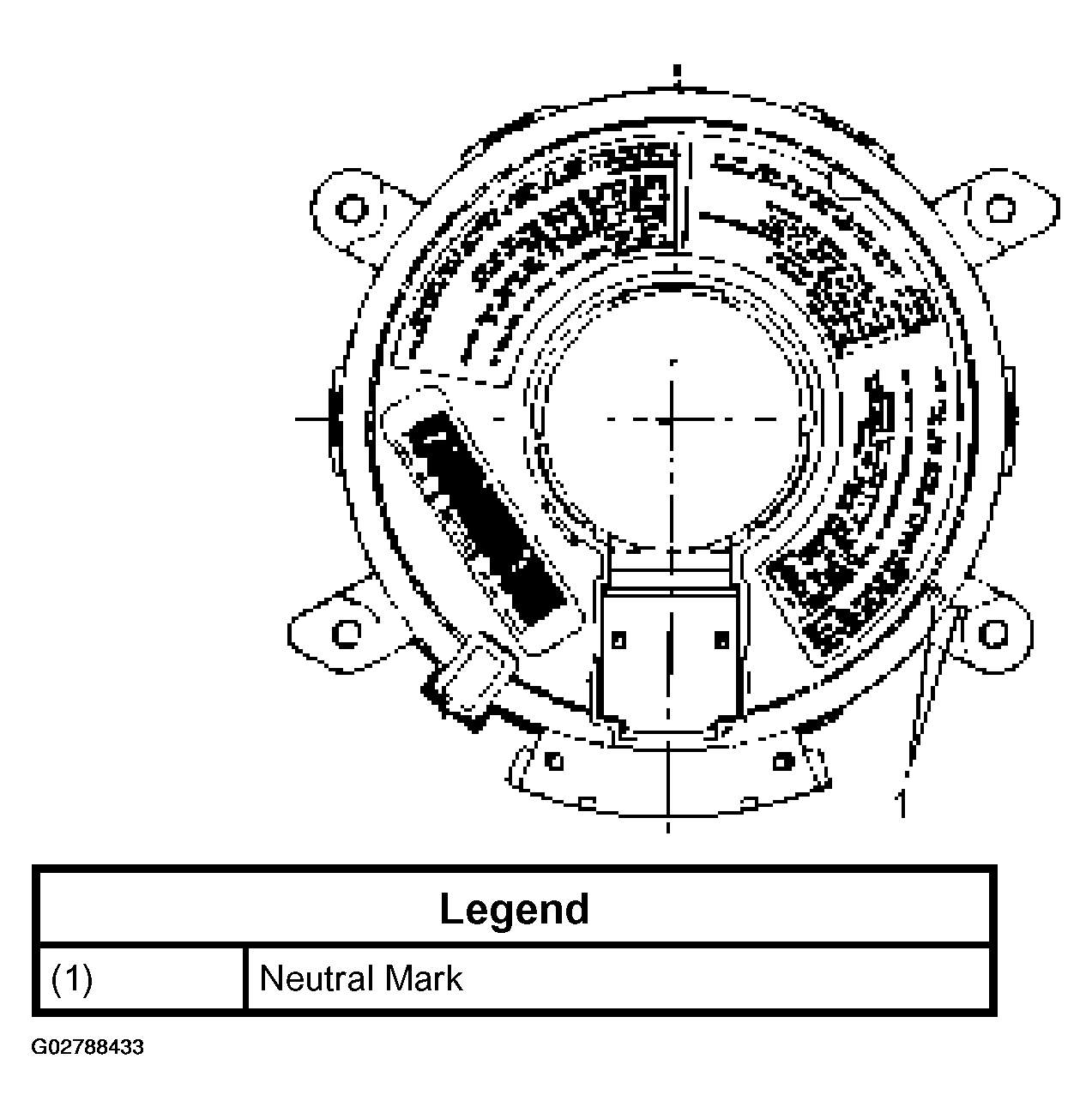

Fig 1: Installing Combination Switch & SRS Coil Assembly
Courtesy of ISUZU MOTOR CO.
When installing the steering column cover, be sure to route each wire harness as illustrated so that the harnesses do not catch on any moving parts.

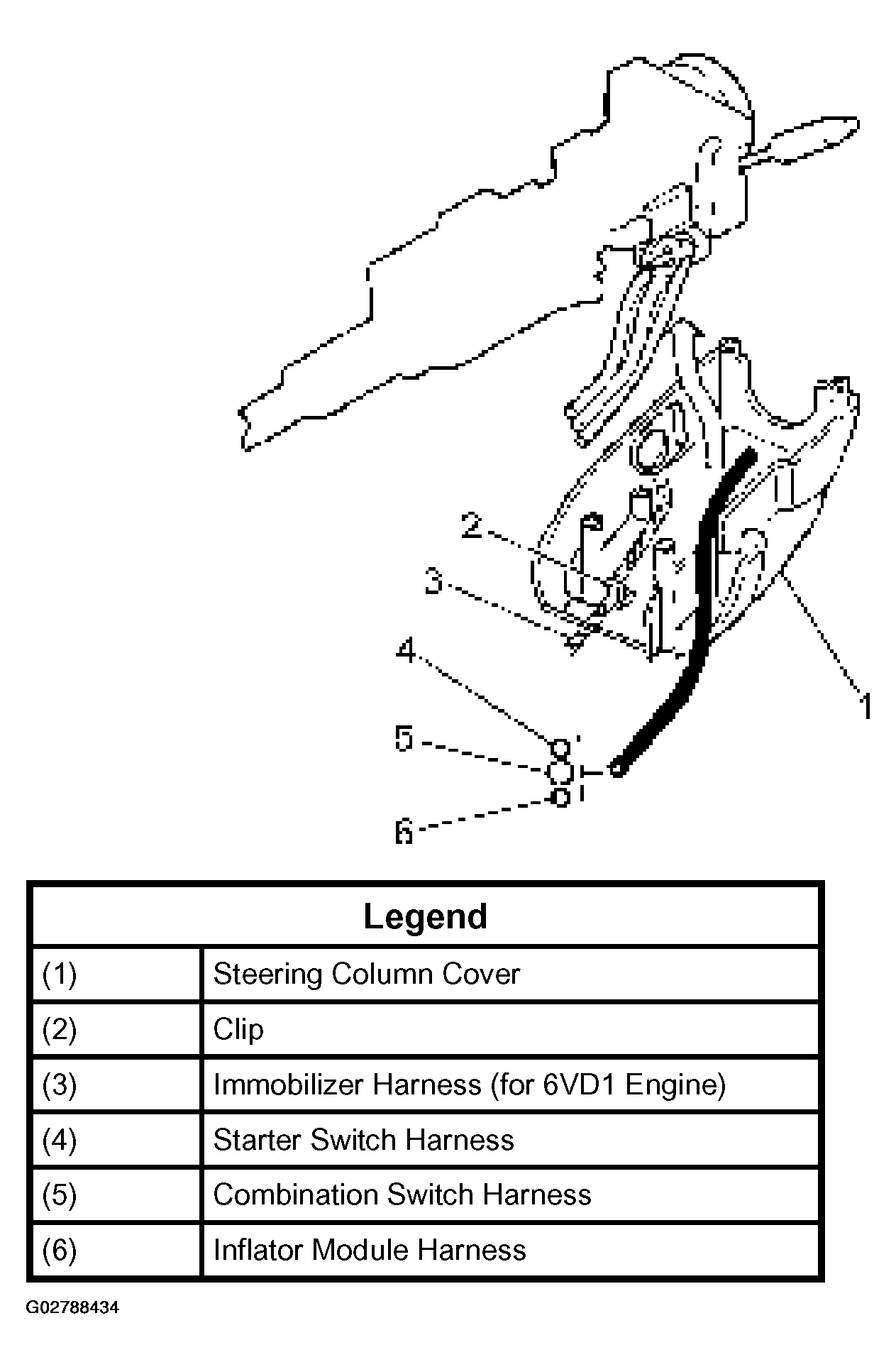

Fig 2: Routing Wire Harness
Courtesy of ISUZU MOTOR CO.
Align the setting marks made when removing then install steering wheel.
CAUTION: Never apply force to the steering wheel shaft using a hammer or other impact tools in an attempt to remove the steering wheel. The steering shaft is designed as an energy absorbing unit.
Tighten the steering wheel fixing nut to the specified torque.
Torque: 34 N.m (25 lb ft)
Connect horn and steering switch connector.
Support the inflator module and carefully connect the SRS connector and horn lead.
NOTE: Pass the lead wire through the tabs on the plastic cover (wire protector) of inflator to prevent lead wire from being pinched.
Tighten bolts to specified torque.
Torque: 9 N.m (78 lb in)
Install driver knee bolster (reinforcement).
Install instrument panel lower cover then install the engine hood opening lever.
Connect the SRS connector.
Connect the battery "-" terminal cable.
Turn the ignition switch to the "ON" position and observe the warning lamp. The lamp should flash 7 times. If lamp does not operate correctly, refer to AIR BAG RESTRAINT SYSTEMS .
