EHCU Connector Pin-out Checks: Notes

• Disconnect Electronic Hydraulic Control Module.
• Perform checks with high impedance digital multimeter J-39200 or equivalent.

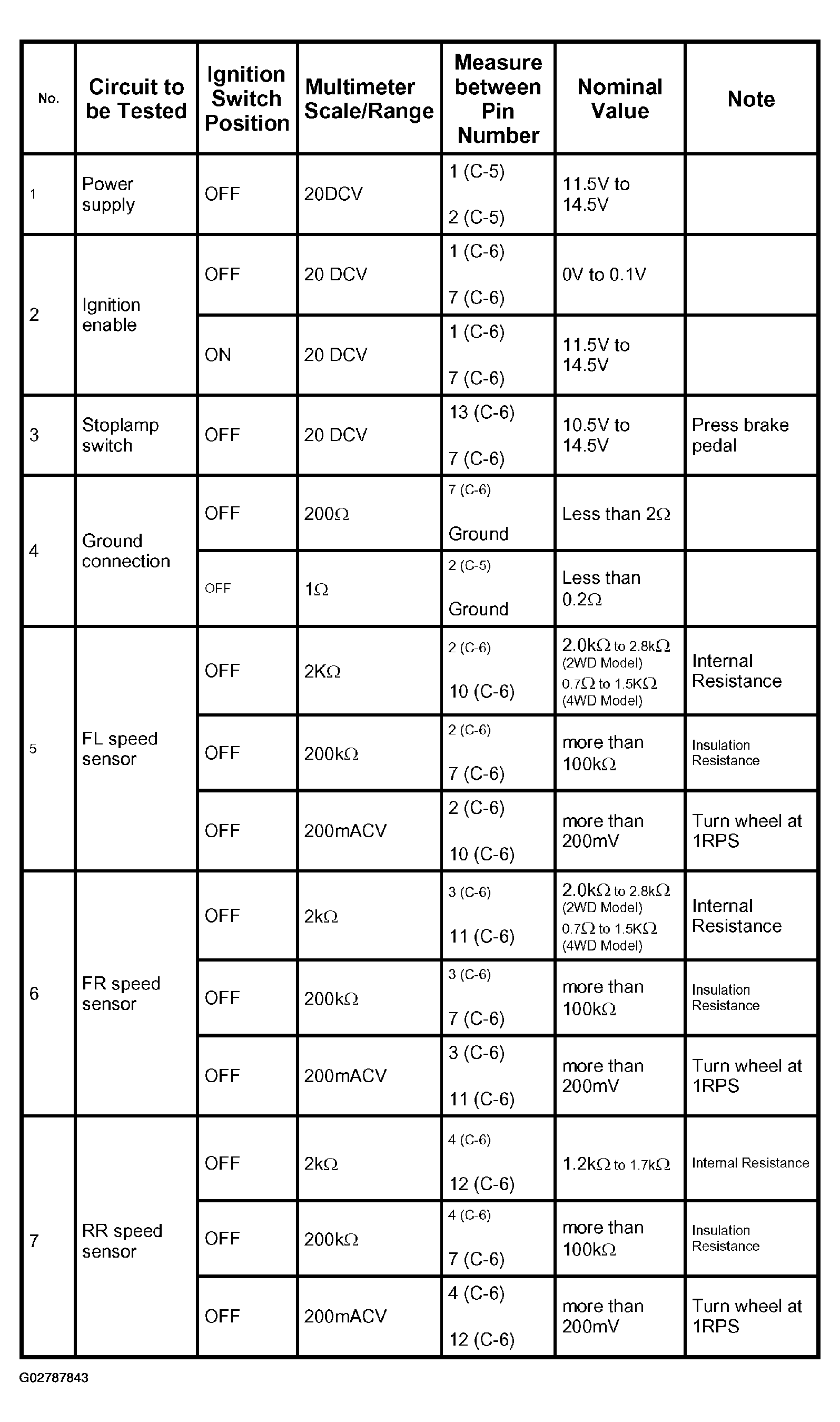

Fig 1: EHCU Connector Pin-Out Check Chart

Courtesy of ISUZU MOTOR CO.
