Camshaft Position Sensor: Removal

  1. Disconnect battery ground cable
  2. Wiring connector from camshaft position sensor.
  3. Remove camshaft position sensor from cylinder head.

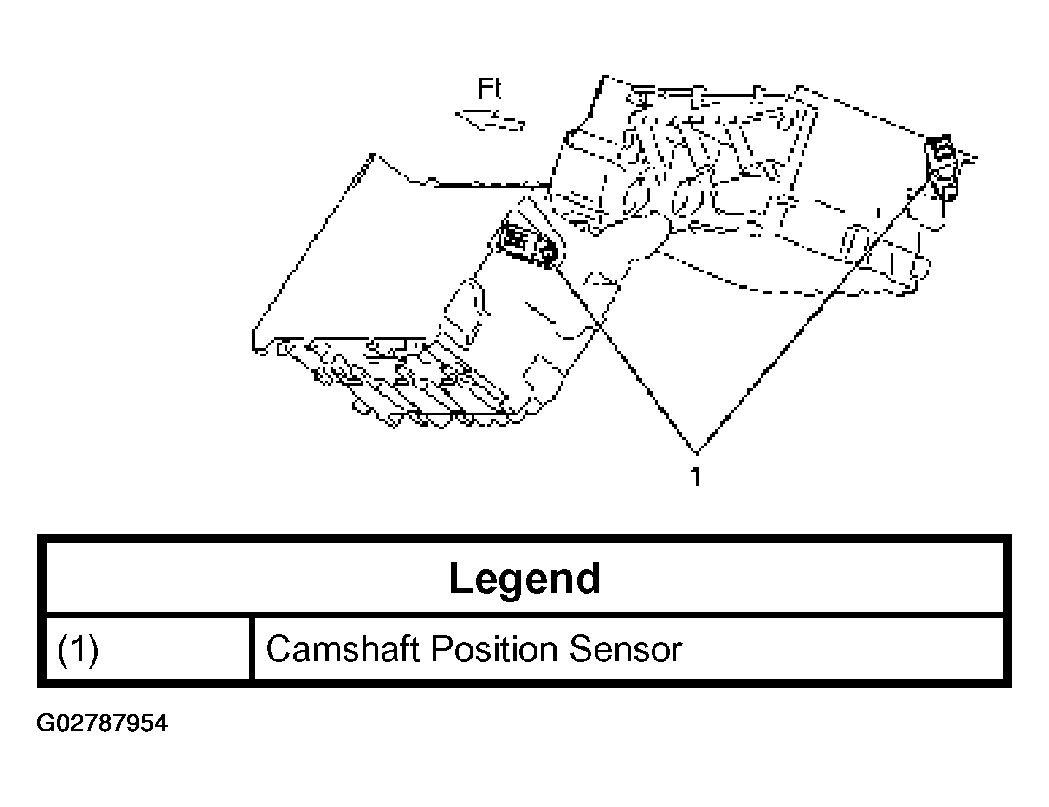

    Fig 1: Removing Camshaft Position Sensor From Cylinder Head
    G02787954Courtesy of ISUZU MOTOR CO.
