Home >> Isuzu >> 2004 >> Axiom Base, RWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Knock Sensor >> Removal

Knock Sensor: Removal

  1. Disconnect battery ground cable
  2. Remove common chamber.
  3. Wiring connector from knock sensor.
  4. Remove knock sensor from cylinder block.

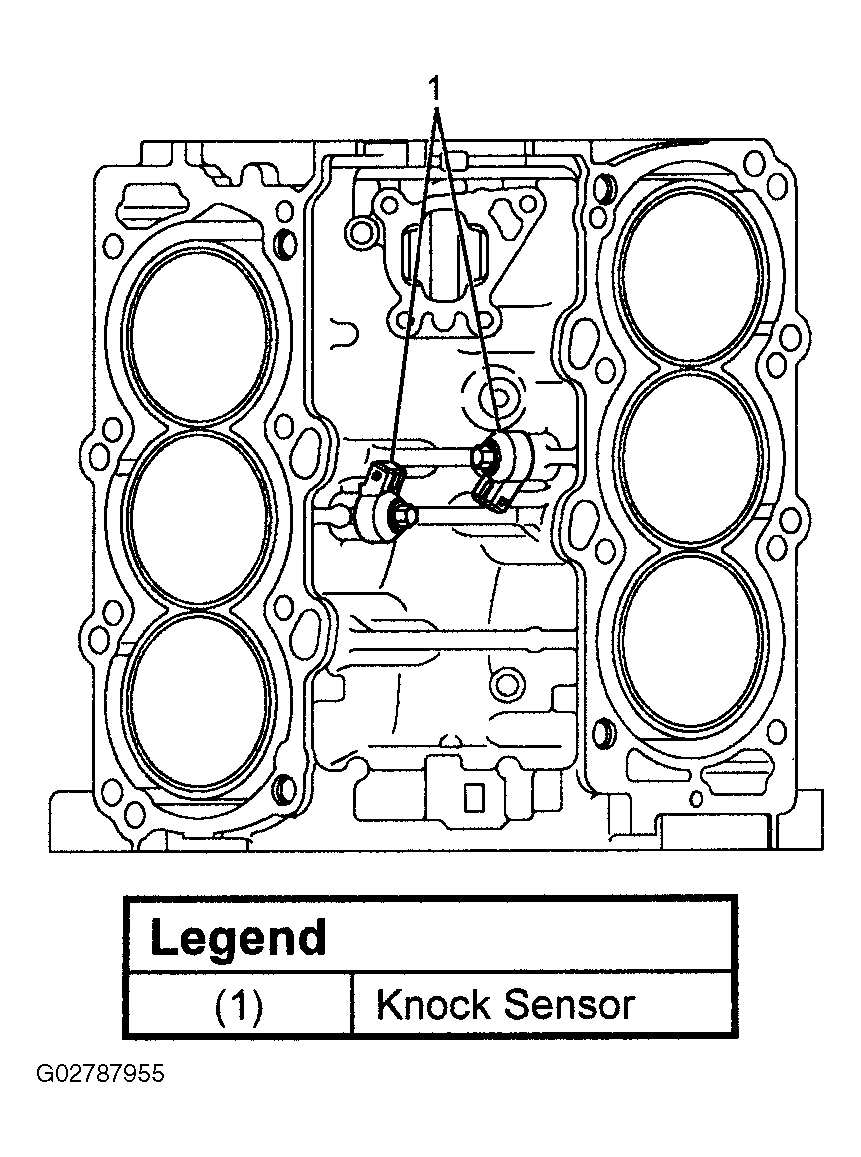

    Fig 1: Removing Knock Sensor From Cylinder Block
    G02787955Courtesy of ISUZU MOTOR CO.
