Measuring Insulation Resistance

Measure insulation resistance using a 500 volt mega ohm meter.
Replace spark plugs if measured value is out of standard.
Insulation resistance: 50 MΩ or more

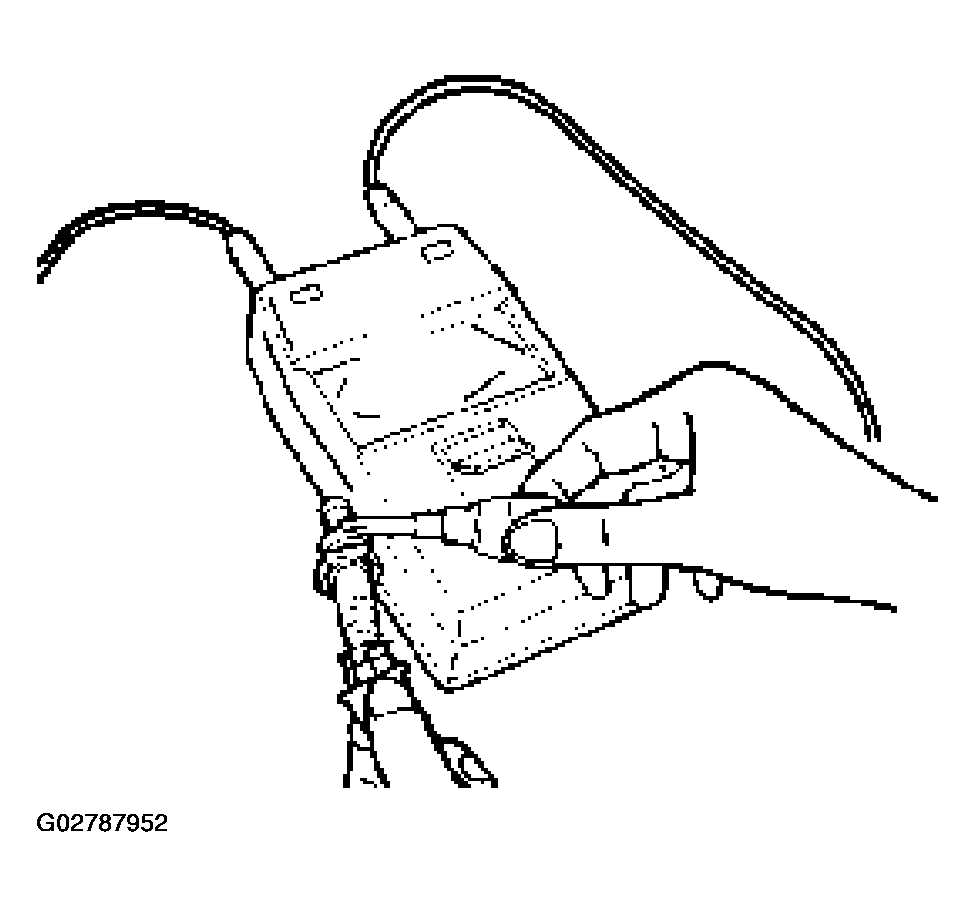

Fig 1: Measuring Insulation Resistance
Courtesy of ISUZU MOTOR CO.
