Automatic Transmission
>>
OD Support Assembly
>>
Disassembled View
Disassembled View

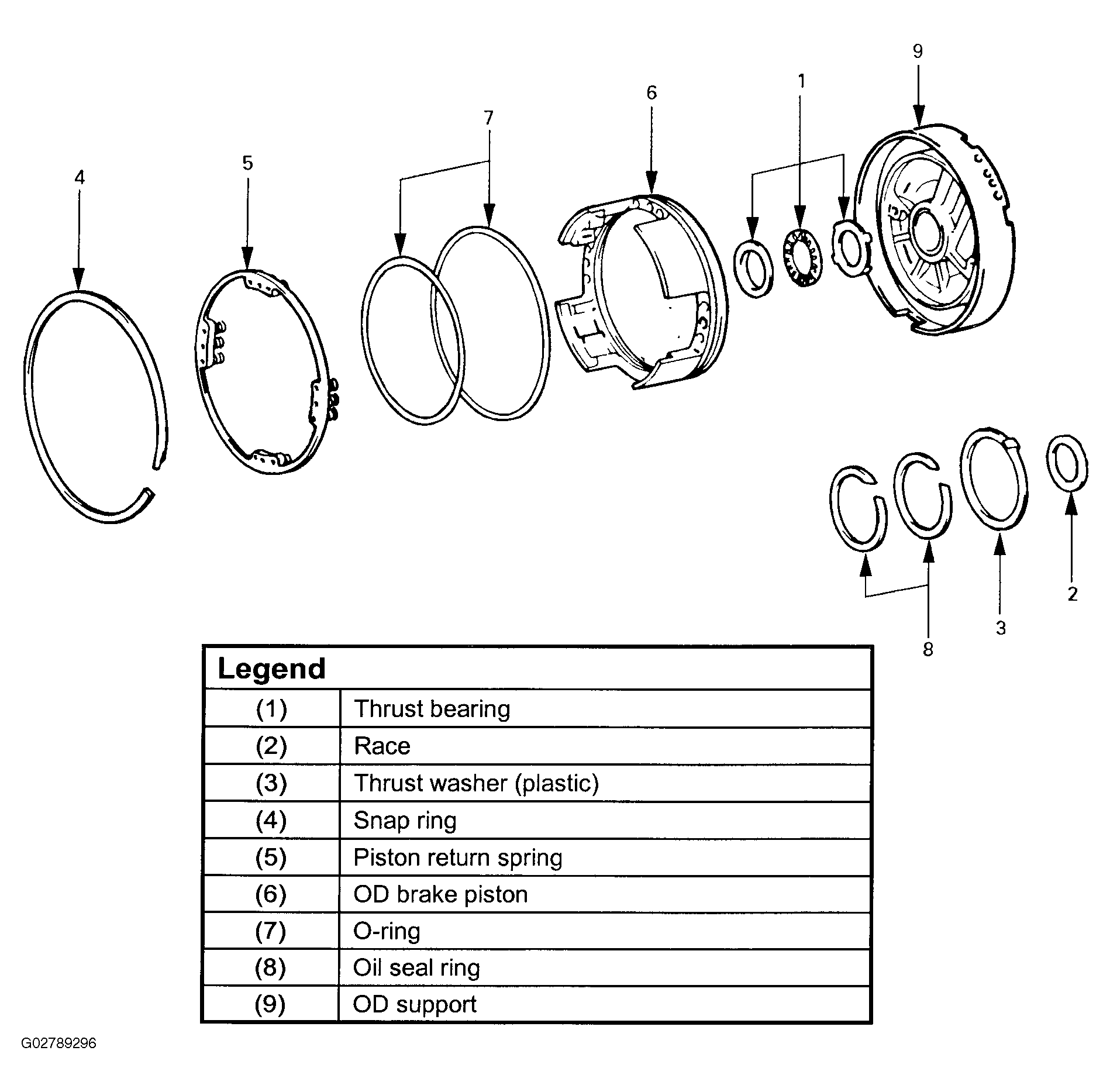

Fig 1: Disassembled View Of OD Support Assembly
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
