Special Tools

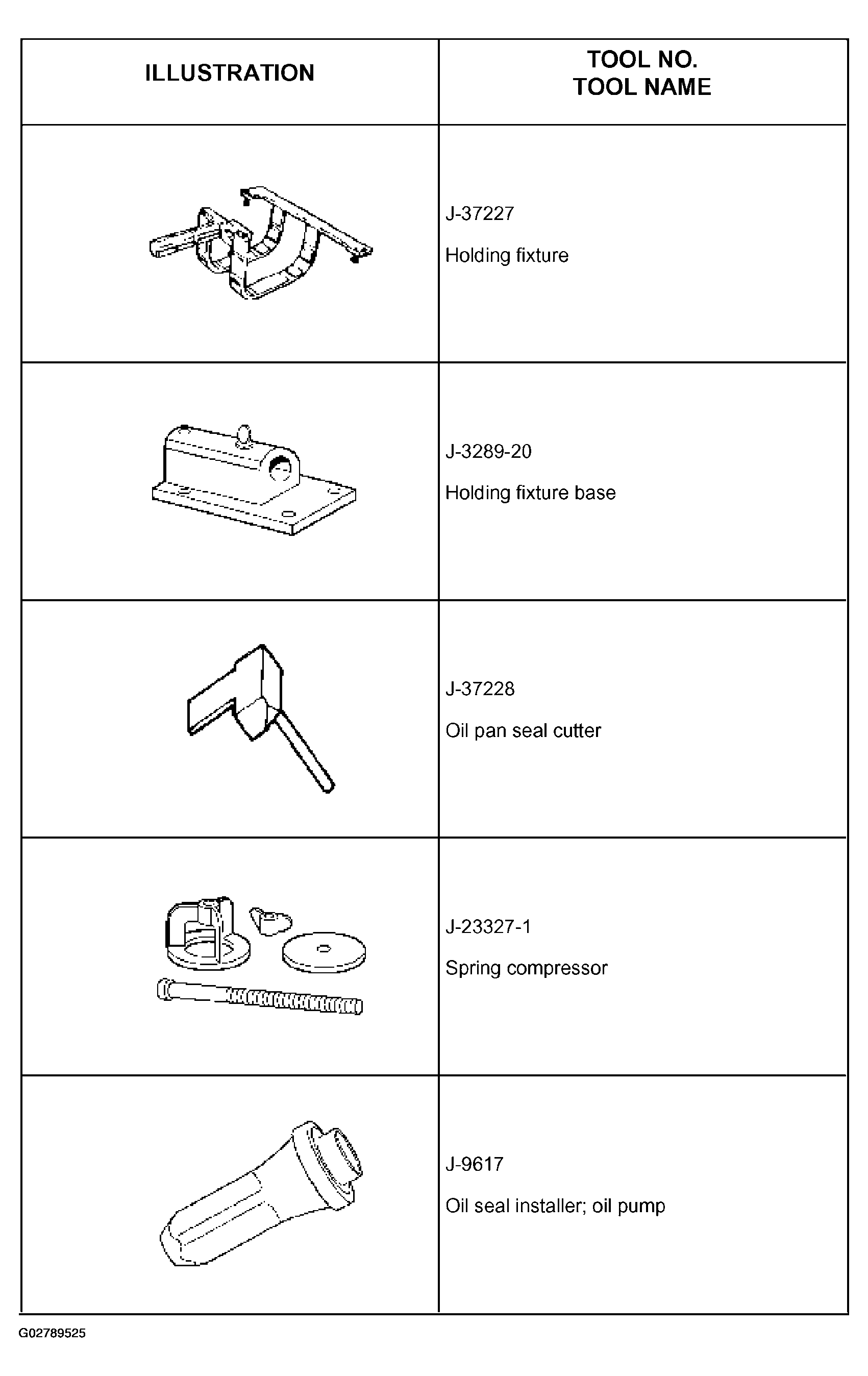

Fig 1: Identifying Special Tools (1 Of 3)
G02789525Courtesy of ISUZU MOTOR CO.

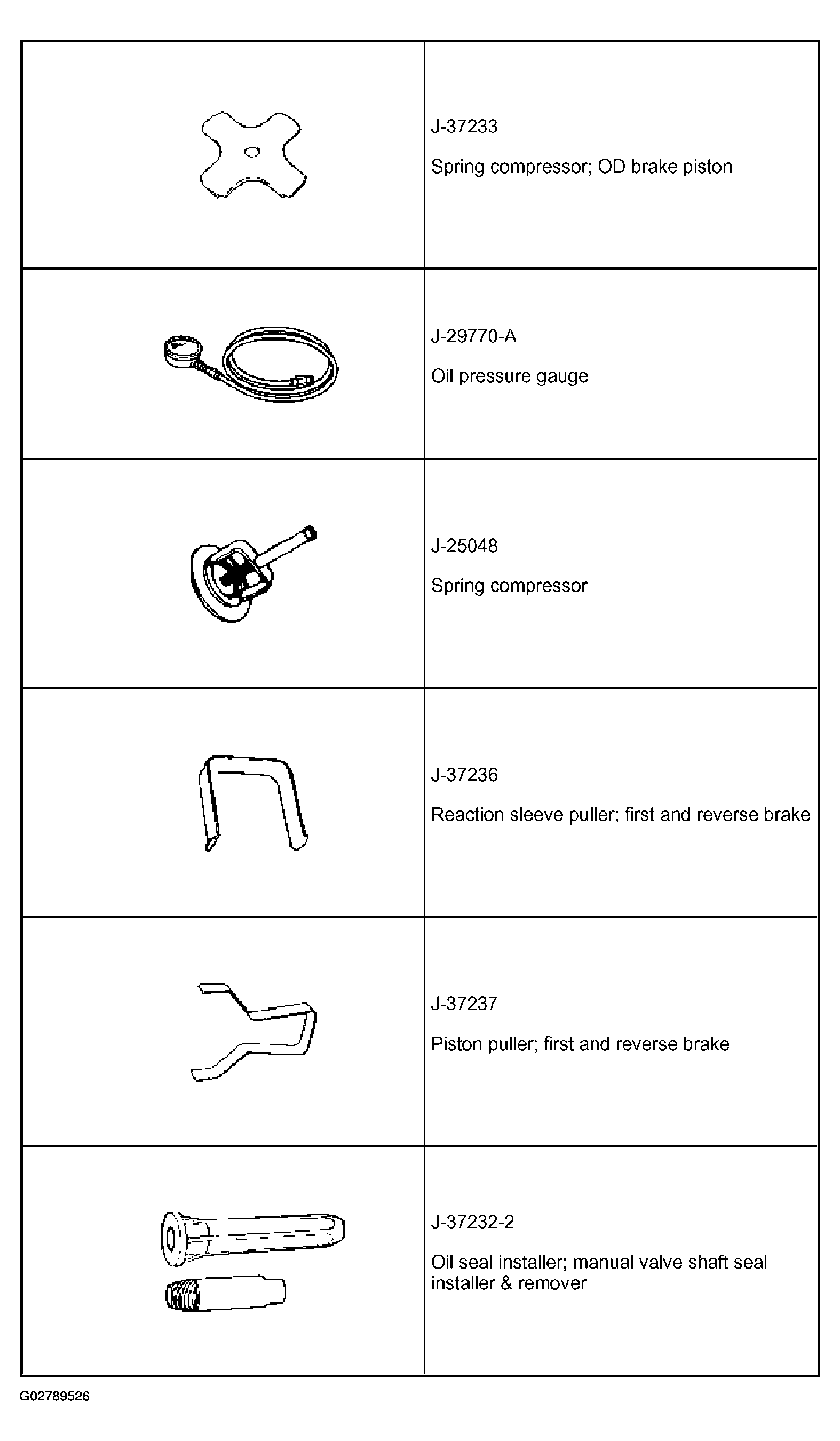

Fig 2: Identifying Special Tools (2 Of 3)
G02789526Courtesy of ISUZU MOTOR CO.

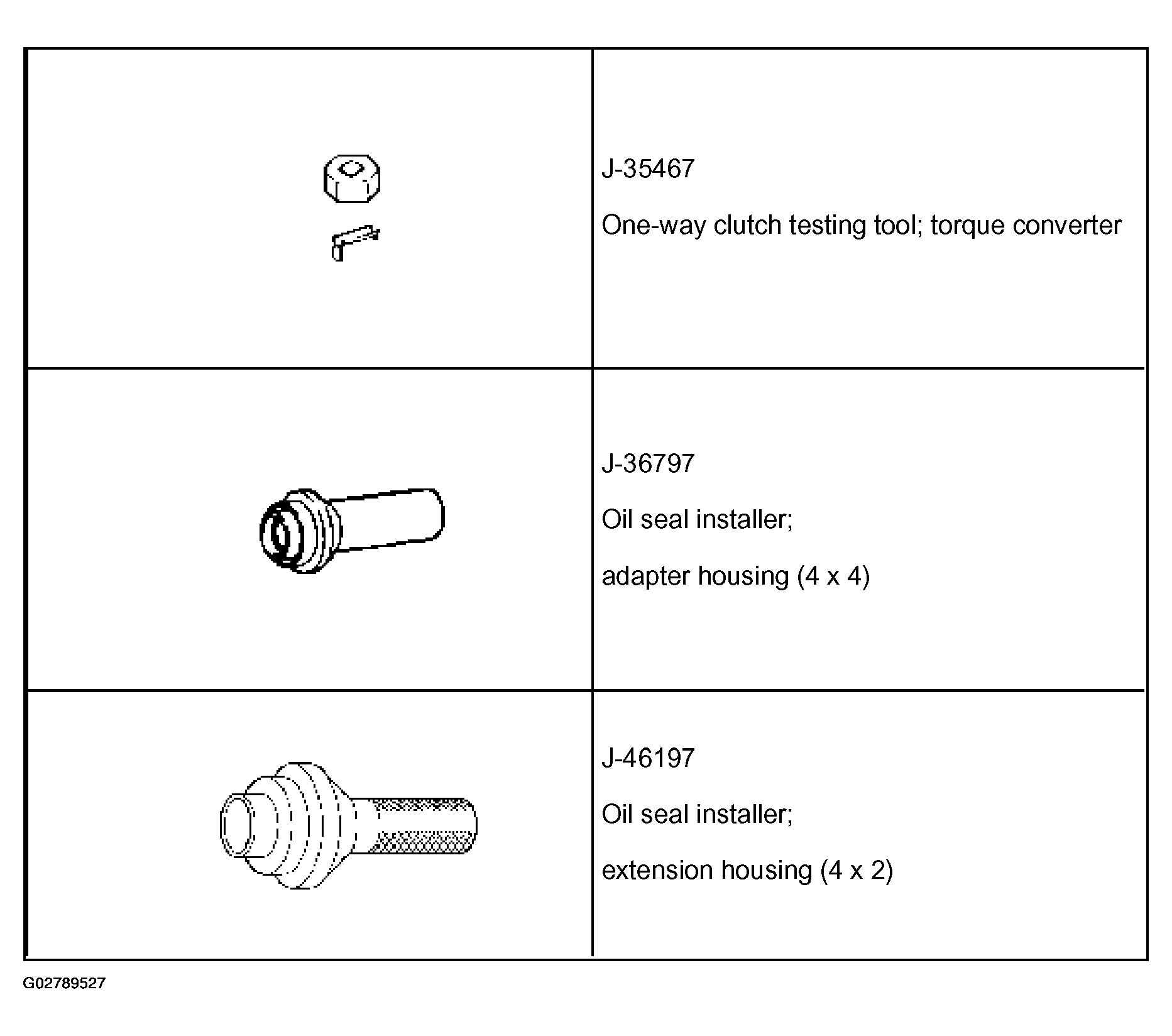

Fig 3: Identifying Special Tools (3 Of 3)
G02789527Courtesy of ISUZU MOTOR CO.
